Check Trunk Lid Opener Cancel Switch

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect trunk lid opener cancel switch connector.

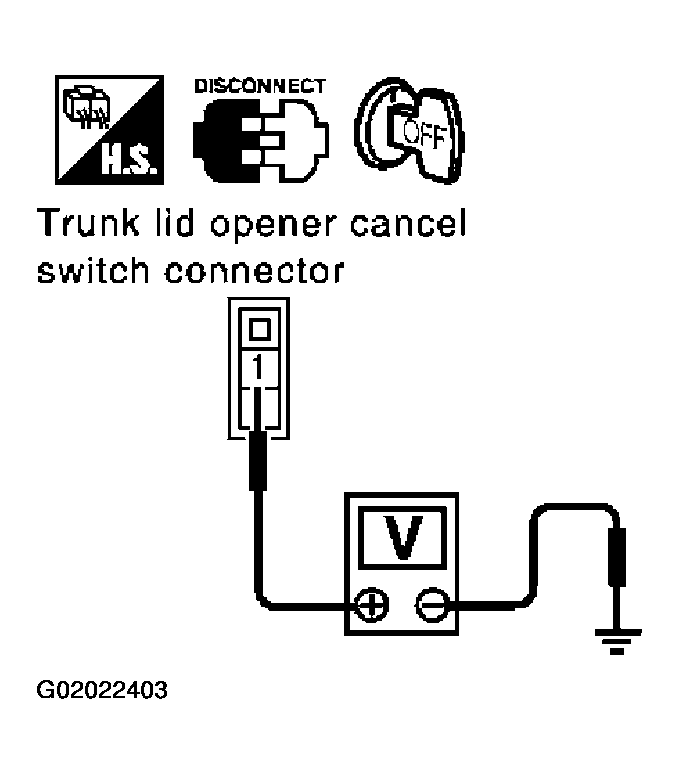

3. Check voltage between trunk lid opener cancel switch connector M117 terminal 1 (G) and ground.
  1. 1 (G) - Ground :Battery voltage
OK or NG

OK >> GO TO 2.

NG >> Check the following.
- Trunk lid opener relay
- Harness for open or short between trunk lid opener cancel switch and trunk lid opener relay
CANCEL SWITCH INSPECTION
Check continuity between trunk lid opener cancel switch terminals 1 and 2.

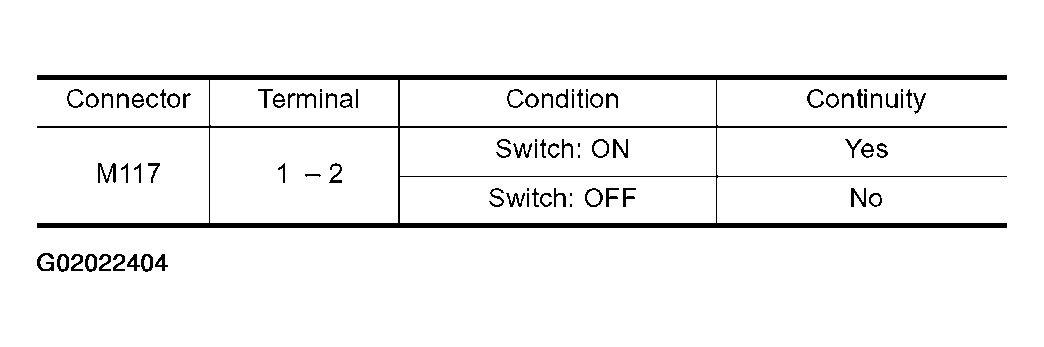

Fig 2: Identifying Switch Inspection Table
Courtesy of NISSAN MOTOR CO., U.S.A.

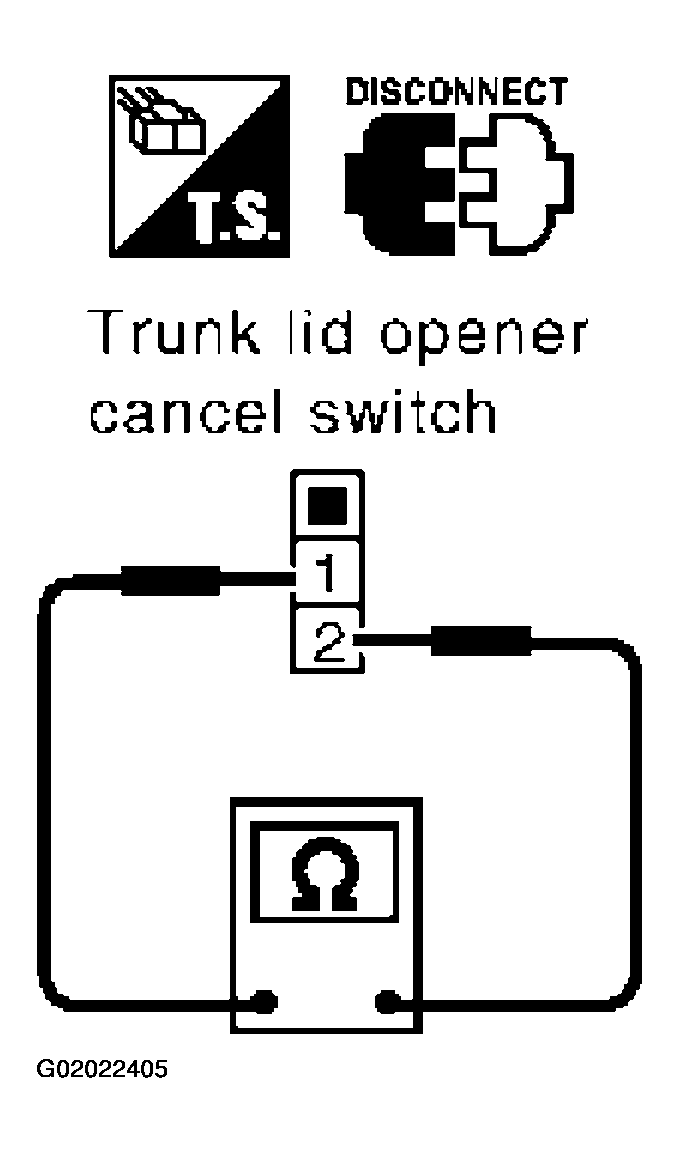

Fig 3: Checking Cancel Switch Inspection Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> GO TO 3.

NG >> Replace trunk lid opener cancel switch.
CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector M4 terminal 109 (Y/B) and trunk lid opener cancel switch connector M117 terminal 2 (Y/B).
  1. 109 (Y/B) - 2 (Y/B) :Continuity should exist.
3. Check continuity between BCM connector M4 terminal 109 (Y/B) and ground.
  1. 109 (Y/B) - Ground : Continuity should not exist.

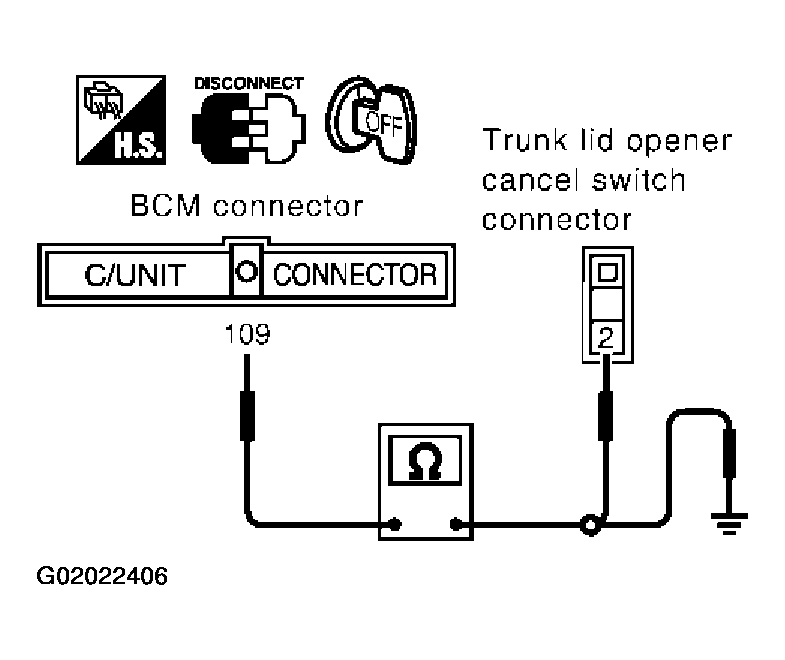

  Fig 4: Checking Harness Continuity Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK >> Trunk lid opener cancel switch circuit is OK.

NG >> Repair or replace harness.
