Terminal and Reference Value for Passenger And Rear LH, RH Door Control Unit

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

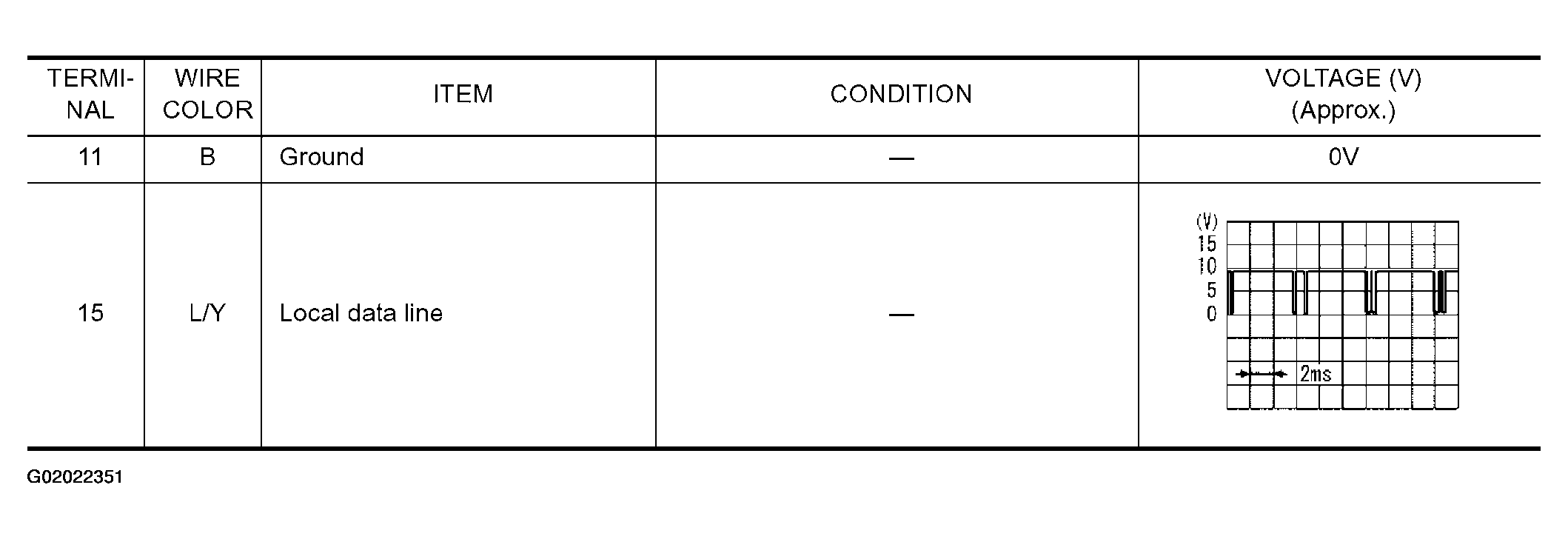

Fig 1: Identifying Terminal And Reference Value For Passenger And Rear LH (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

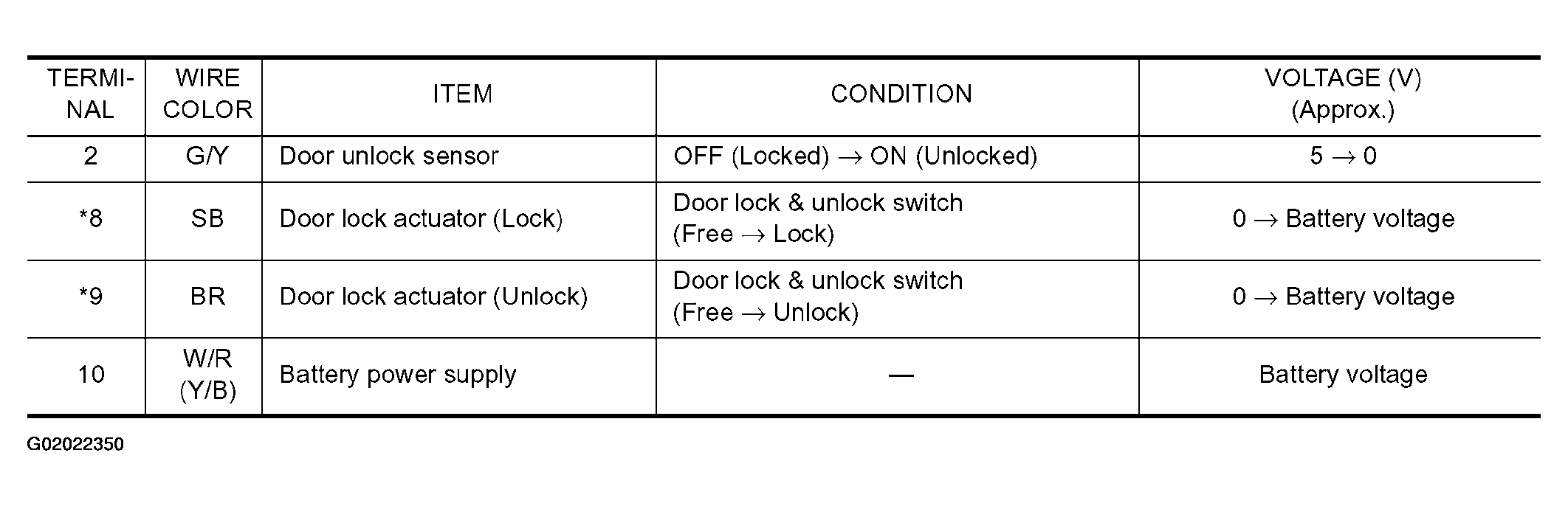

Fig 2: Identifying Terminal And Reference Value For Passenger And Rear LH (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: * Only for passenger door control unit.
: Wire color for rear LH, RH door control unit.
