Removal and Installation for Voice Activated Control Module: Removal

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk side trim. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER ".
Remove voice activated control module.

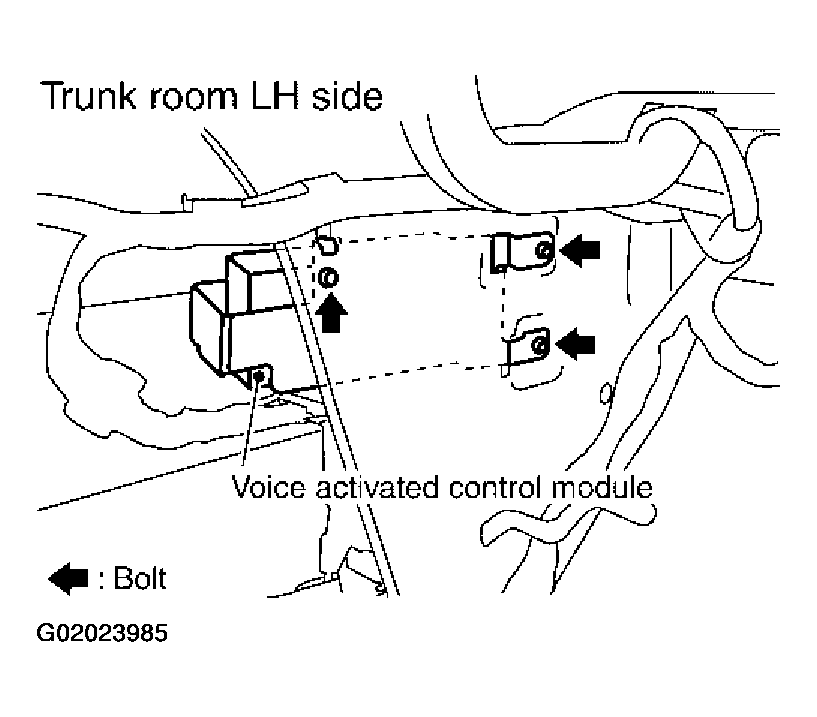

Fig 1: Removing Voice Activated Control Module
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bracket from voice activated control module.

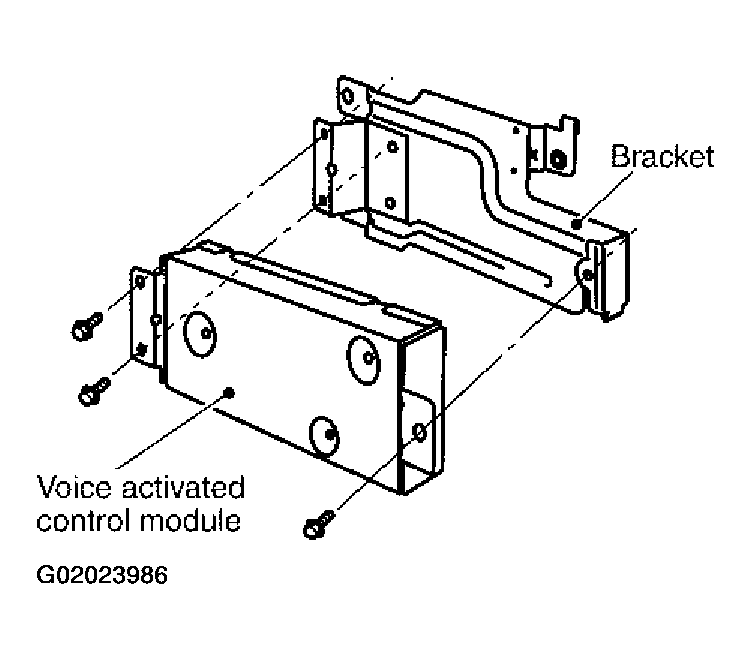

Fig 2: Removing Bracket From Voice Activated Control Module
Courtesy of NISSAN MOTOR CO., U.S.A.
