Self-Diag Results

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Checks for connection between each unit and analyzes each individual unit, then displays the results on the screen.

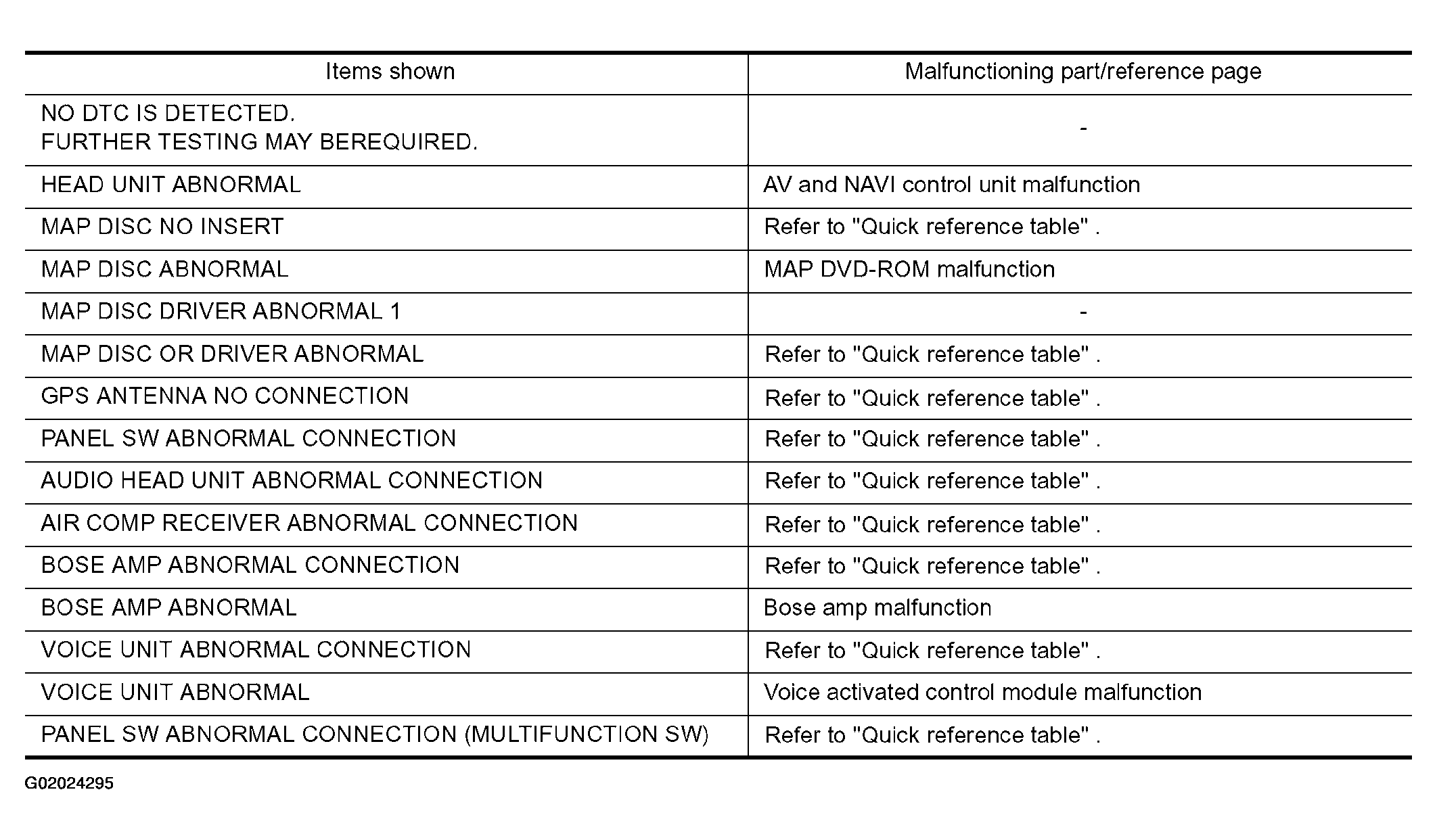

Fig 1: Items Malfunctioning References
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When "IVCS ABNORMAL CONNECTION" and "REAR VIEW CAMERA ABNORMAL CONNECTION" are indicated, does not malfunction.
