Quick Reference Table

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Select an applicable diagnosis No. in the diagnosis result quick reference table.
Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to "WIRING DIAGRAM - COMM ".
Turn ignition switch OFF and perform self-diagnosis again.

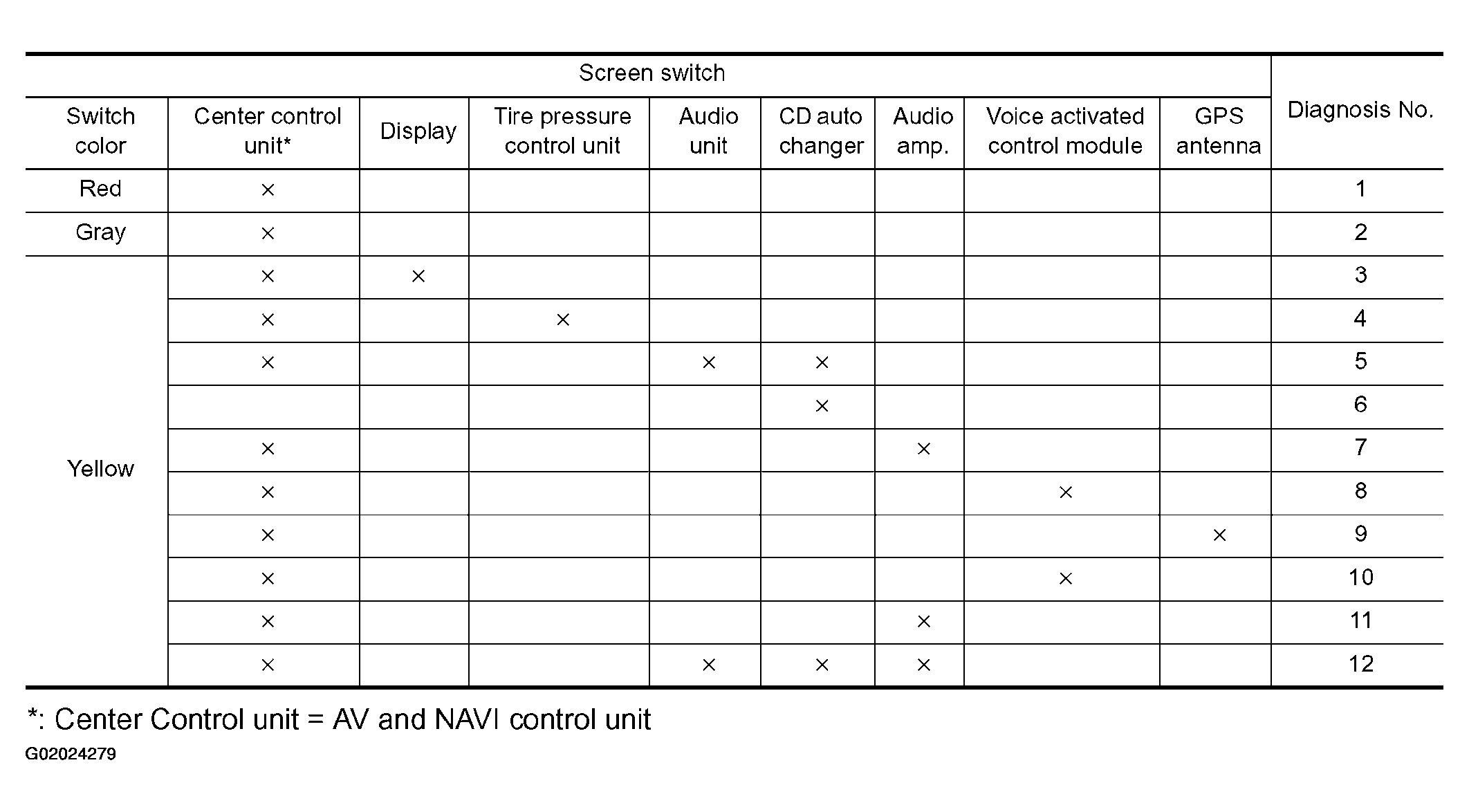

Fig 1: Self Diagnosis Quick Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- When multifunction switch has an incident, you can not start.
- Check the following when the self-diagnosis mode can not be used.
  - AV communication line between AV and NAVI control unit and Display, AV communication line between Display and multifunction switch.
  - Multifunction switch power supply and ground circuit
- When an error is in the AV communication line, it cannot be detected on the screen because self-diagnosis is inoperative. However, the error can be detected with CONSULT-II.
