Wiring Diagram - NAVI

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagram references to PG-POWER, EL-POWER or LT-ILL , see POWER DISTRIBUTION , GROUND DISTRIBUTION and NAVIGATION .

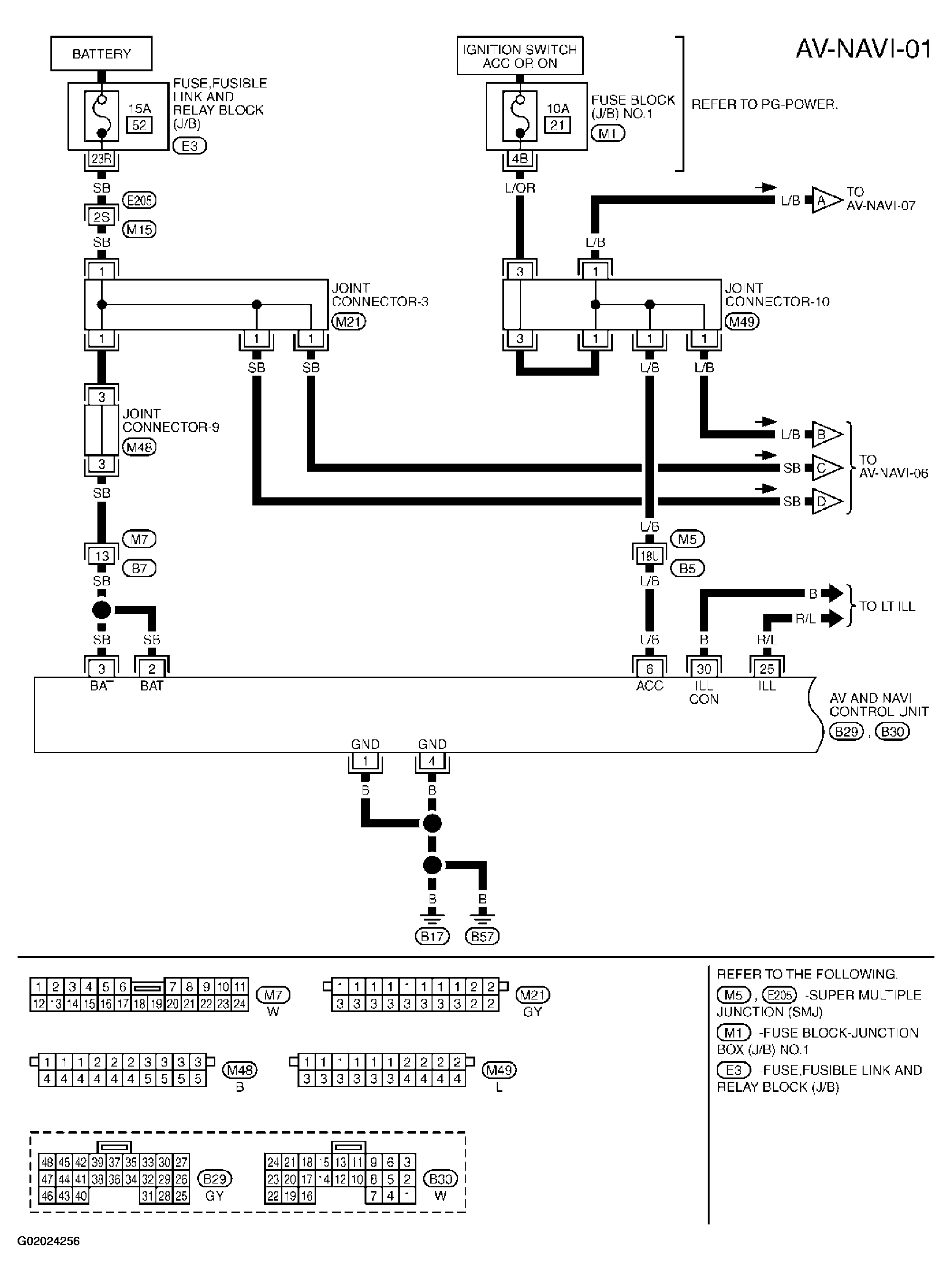

Fig 1: Navigation System Wiring Diagram And Identifying Connectors (1 Of 7)

G02024256

Courtesy of NISSAN MOTOR CO., U.S.A.

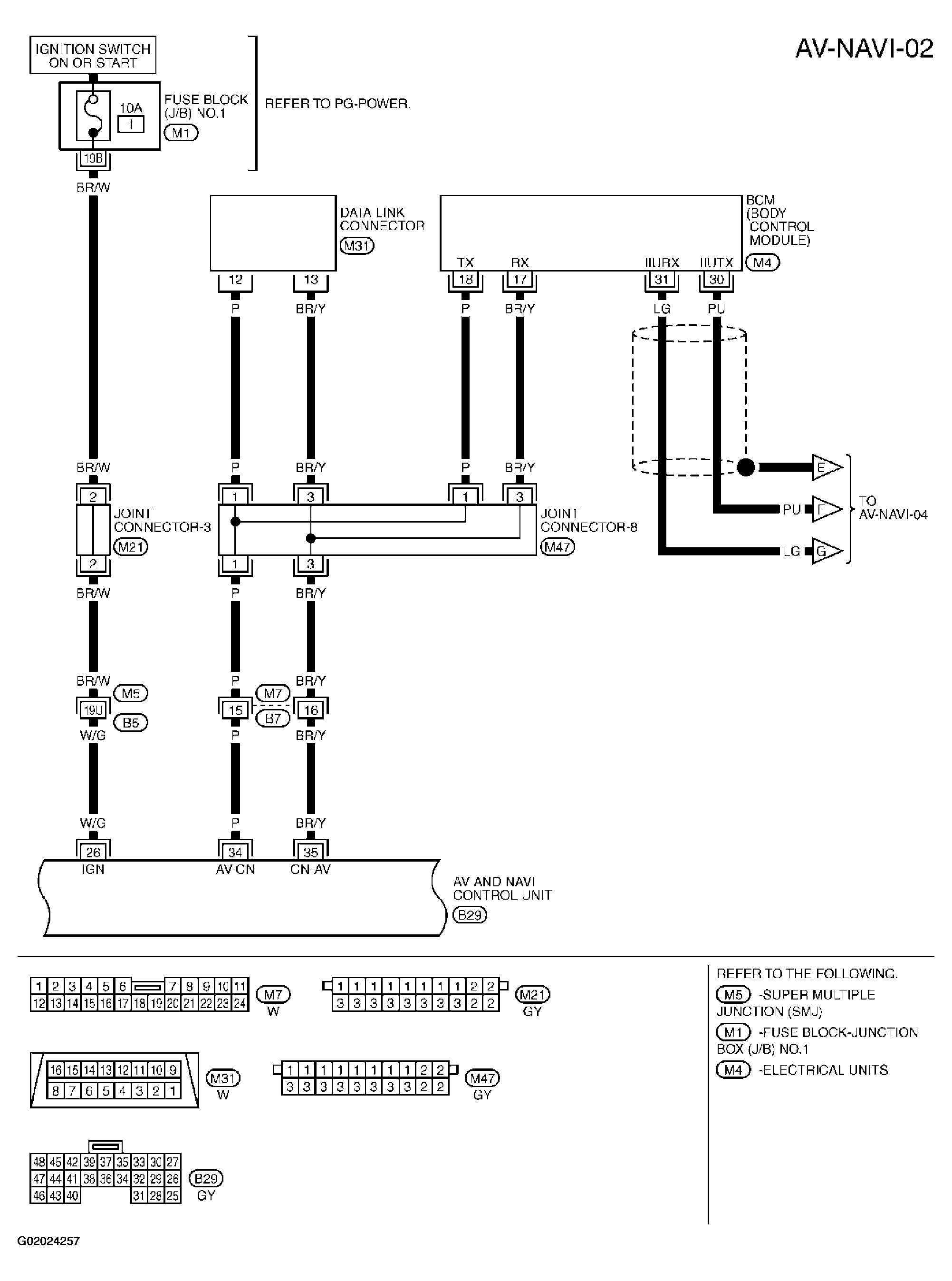

Fig 2: Navigation System Wiring Diagram And Identifying Connectors (2 Of 7)

G02024257

Courtesy of NISSAN MOTOR CO., U.S.A.

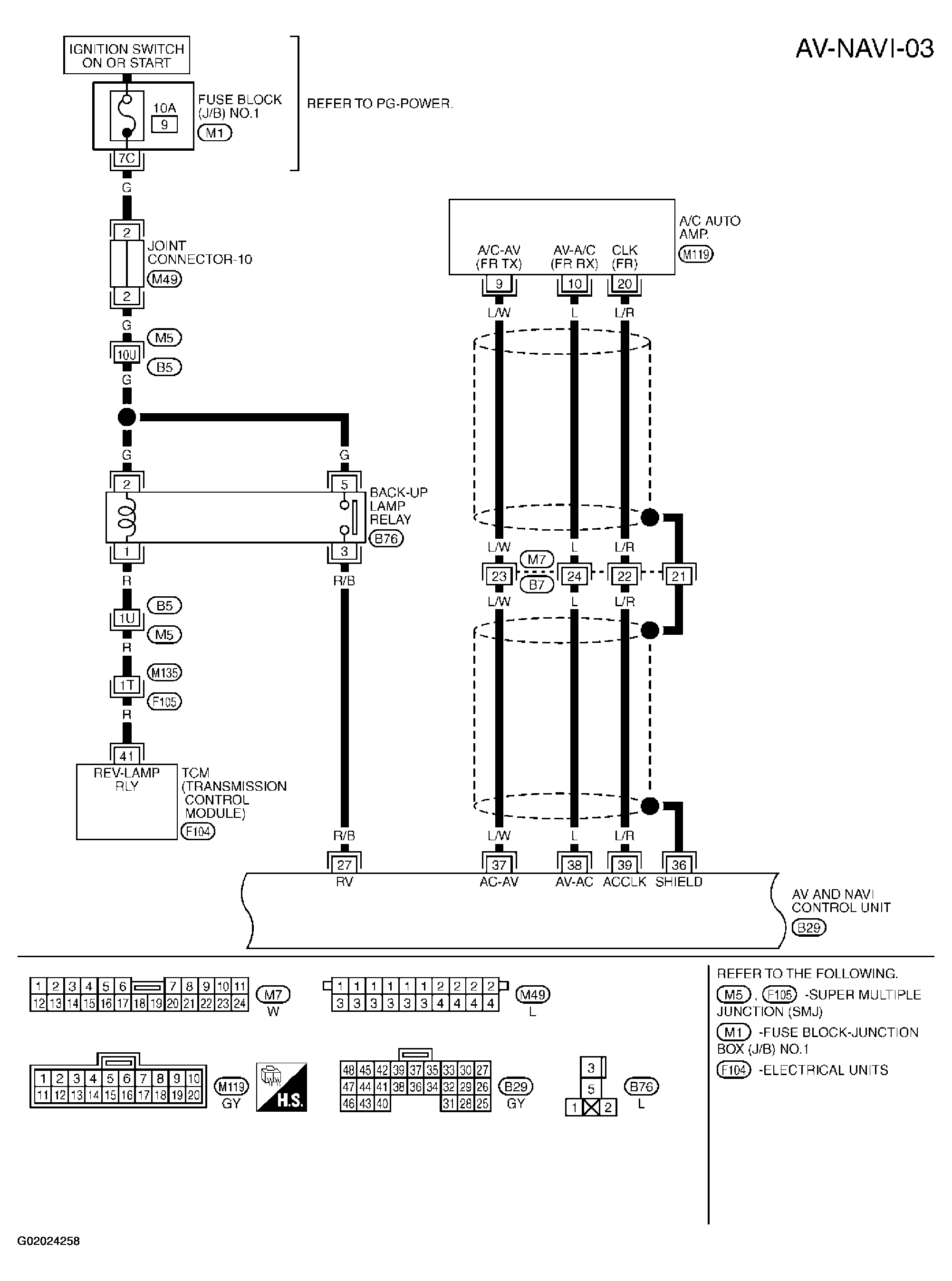

Fig 3: Navigation System Wiring Diagram And Identifying Connectors (3 Of 7)

G02024258

Courtesy of NISSAN MOTOR CO., U.S.A.

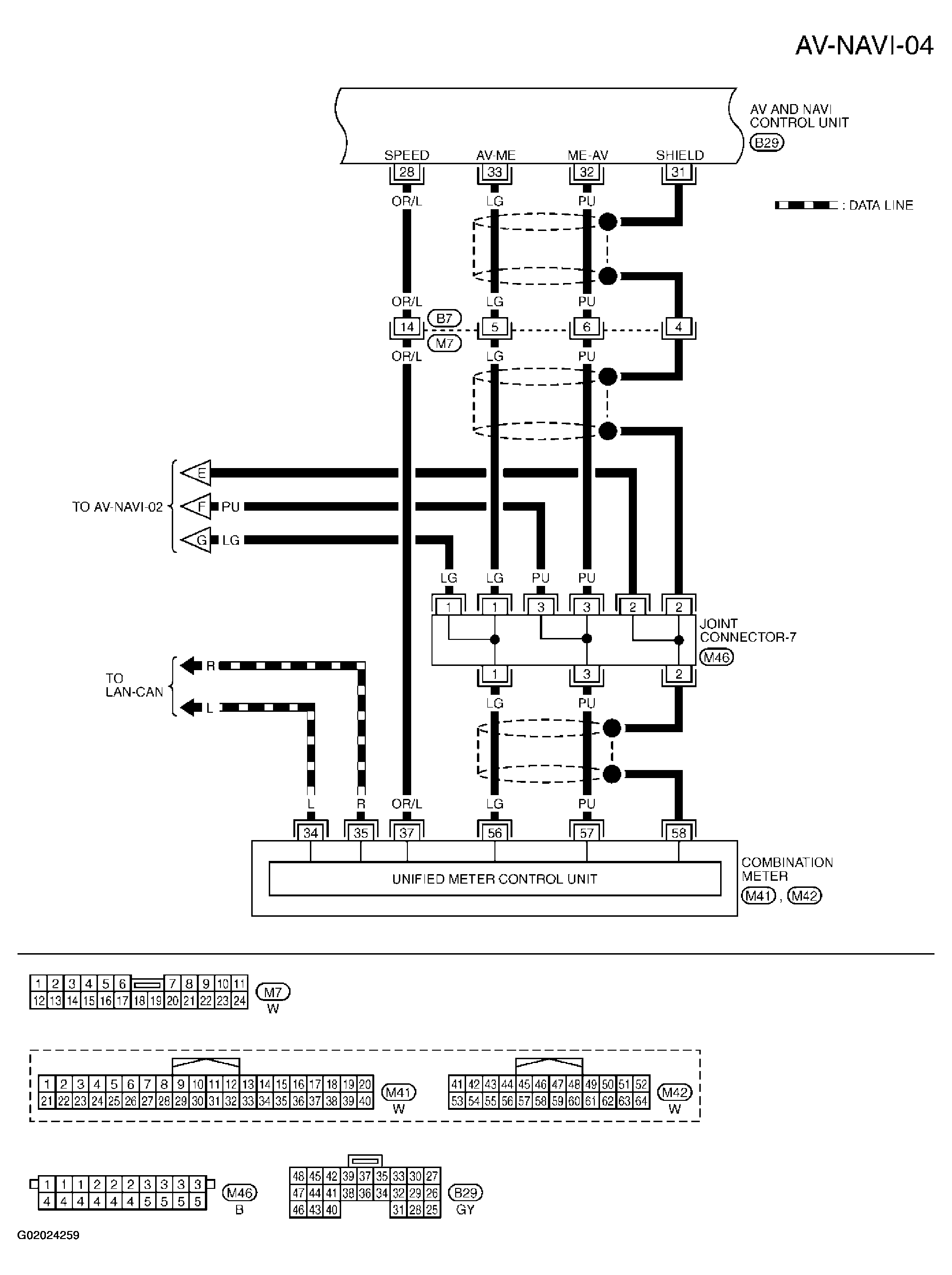

Fig 4: Navigation System Wiring Diagram And Identifying Connectors (4 Of 7)

G02024259

Courtesy of NISSAN MOTOR CO., U.S.A.

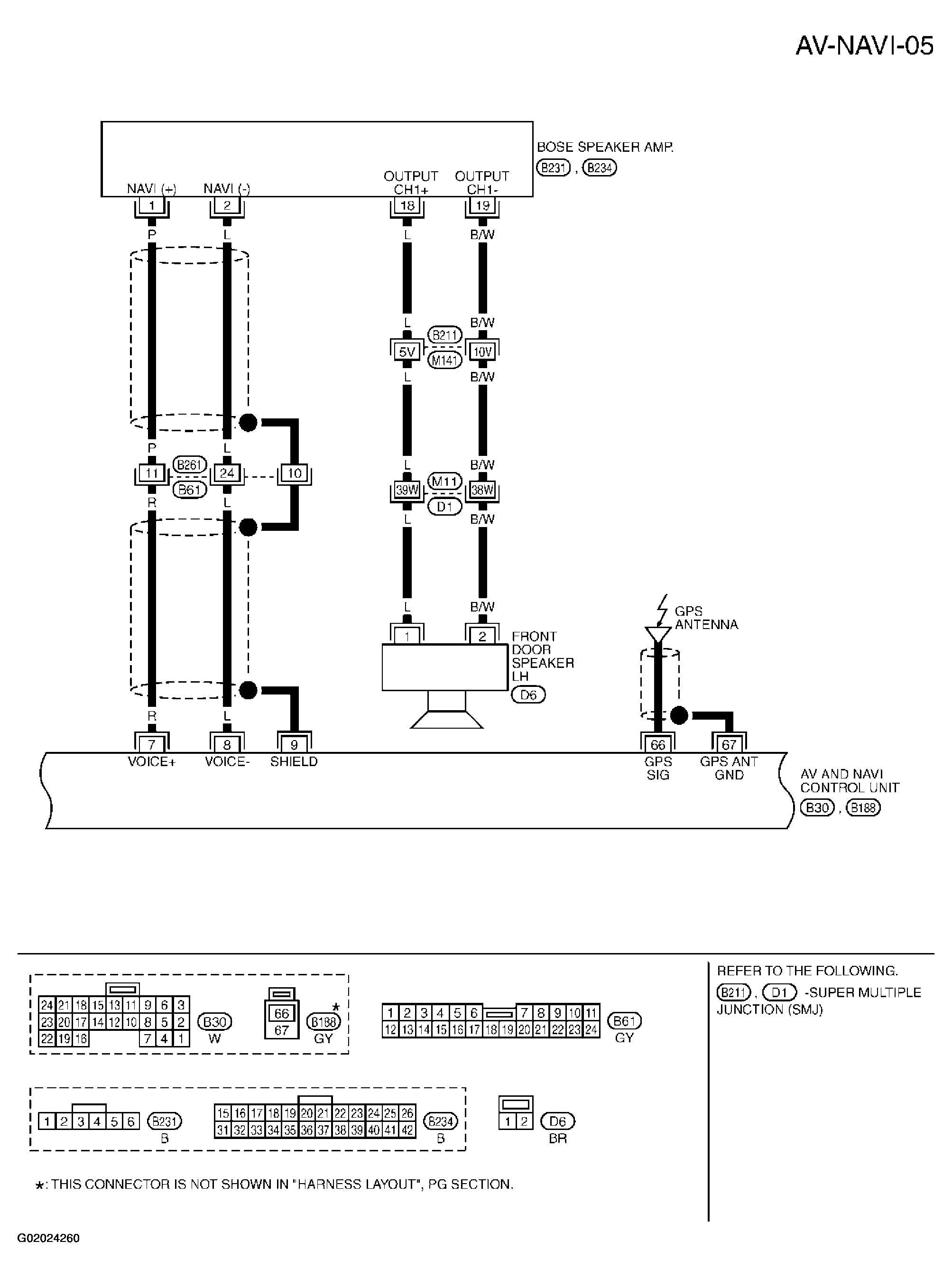

Fig 5: Navigation System Wiring Diagram And Identifying Connectors (5 Of 7)

G02024260

Courtesy of NISSAN MOTOR CO., U.S.A.

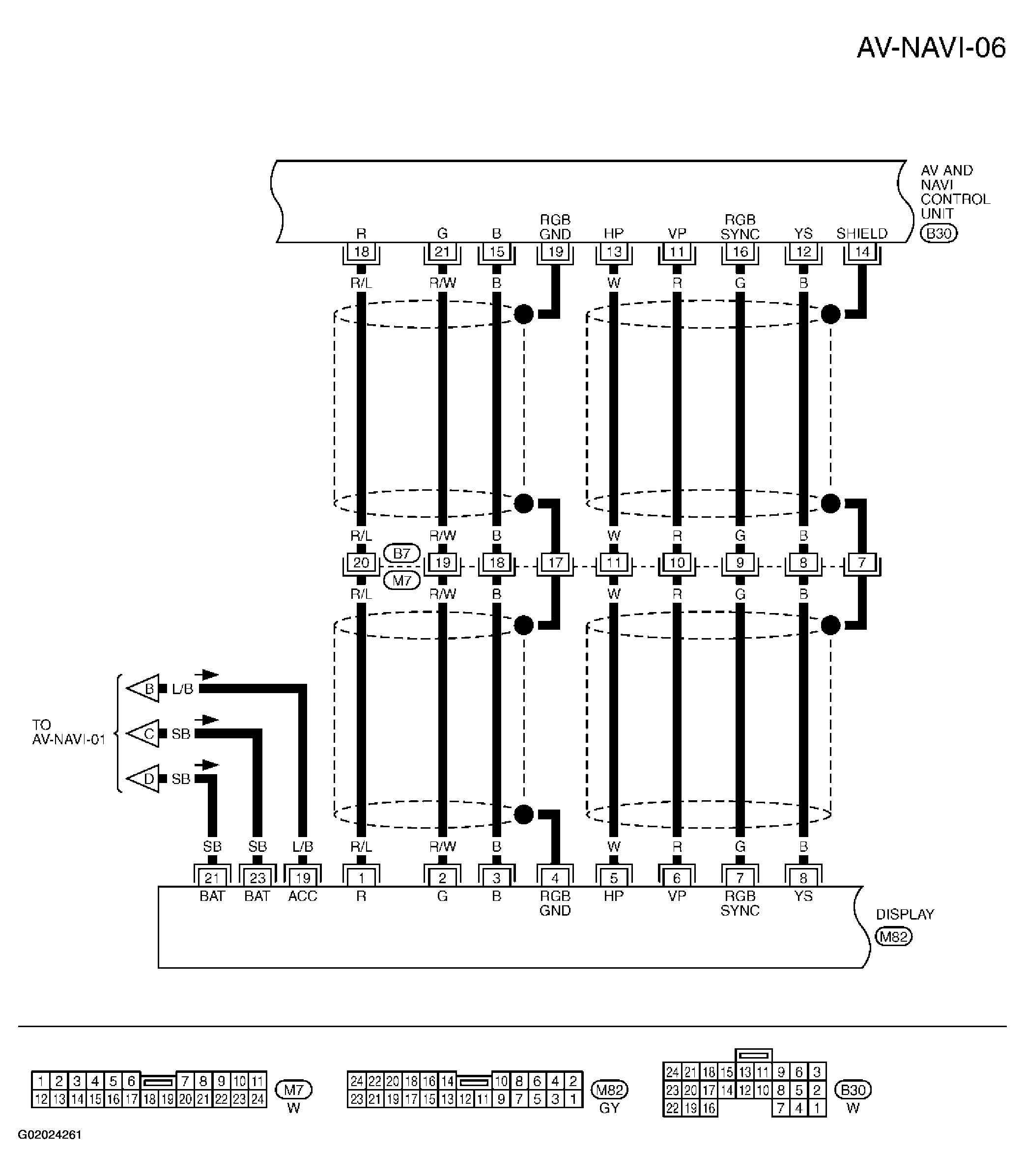

Fig 6: Navigation System Wiring Diagram And Identifying Connectors (6 Of 7)

G02024261

Courtesy of NISSAN MOTOR CO., U.S.A.

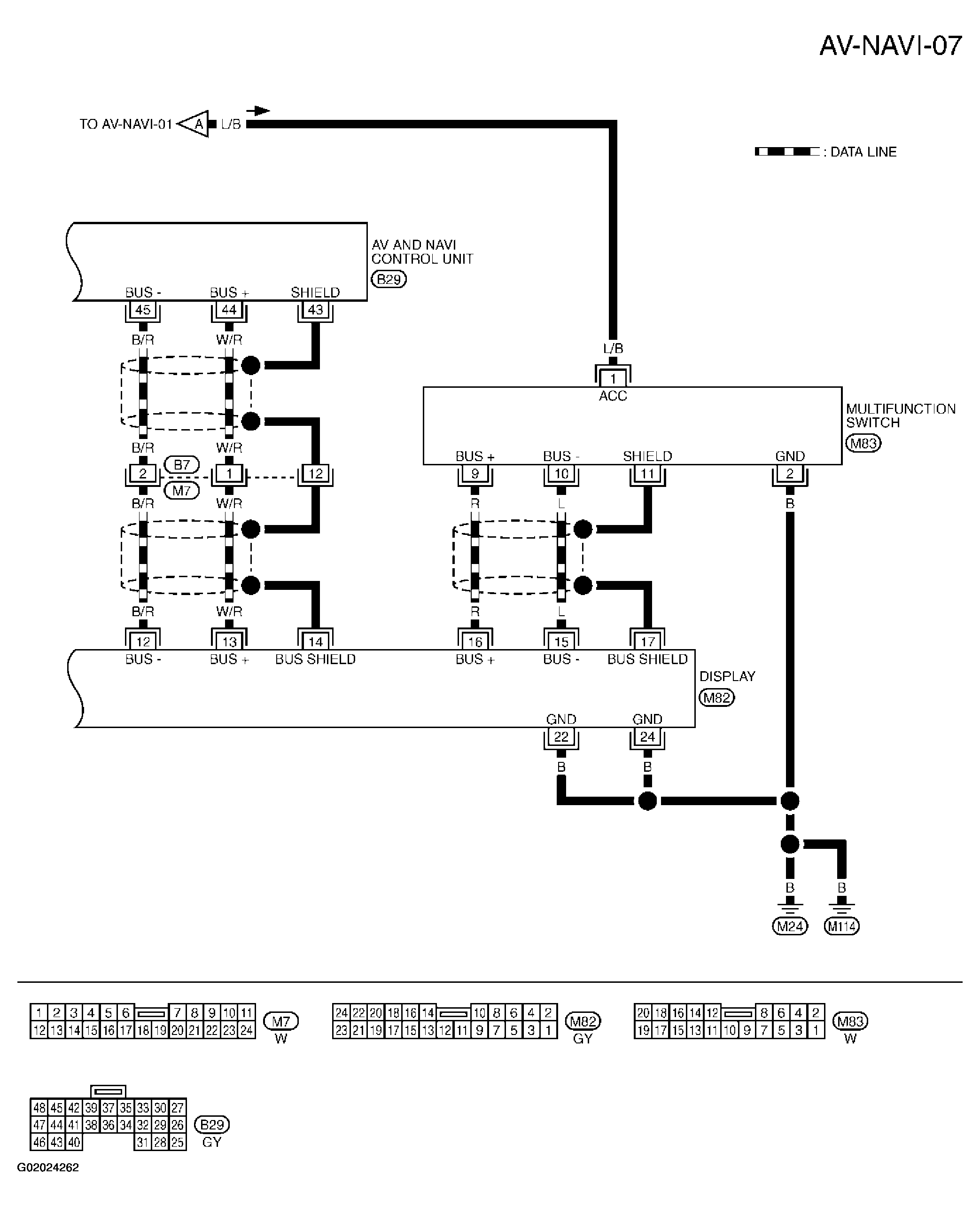

Fig 7: Navigation System Wiring Diagram And Identifying Connectors (7 Of 7)

G02024262

Courtesy of NISSAN MOTOR CO., U.S.A.
