Removal And Installation Of Av And NAVI Control Unit: Removal
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
- Refer to "PRECAUTIONS FOR AV AND NAVI CONTROL UNIT REPLACEMENT ". Take a note of necessary items.
- Remove trunk front finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER ".

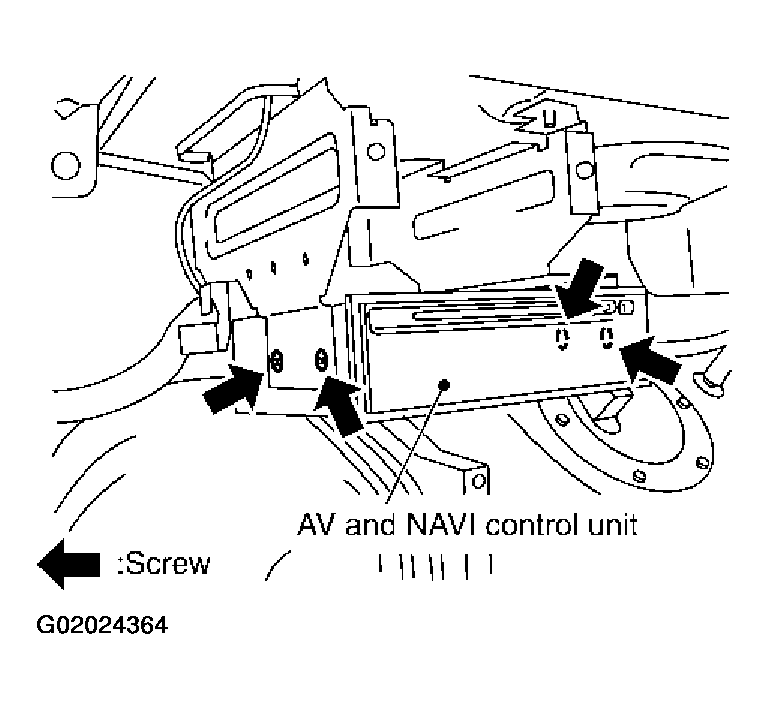

- Remove screws (4), and remove AV and NAVI control unit with power tool.
