CHECK IGNITION ILLUMINATION OPERATION
With CONSULT-II
1. Select "ACTIVE TEST" IN "MULTI REMOTE ENT" with CONSULT-II.
2. Select "IGN ILLUM" and touch "ON".
  Ignition illuminate should illuminate.

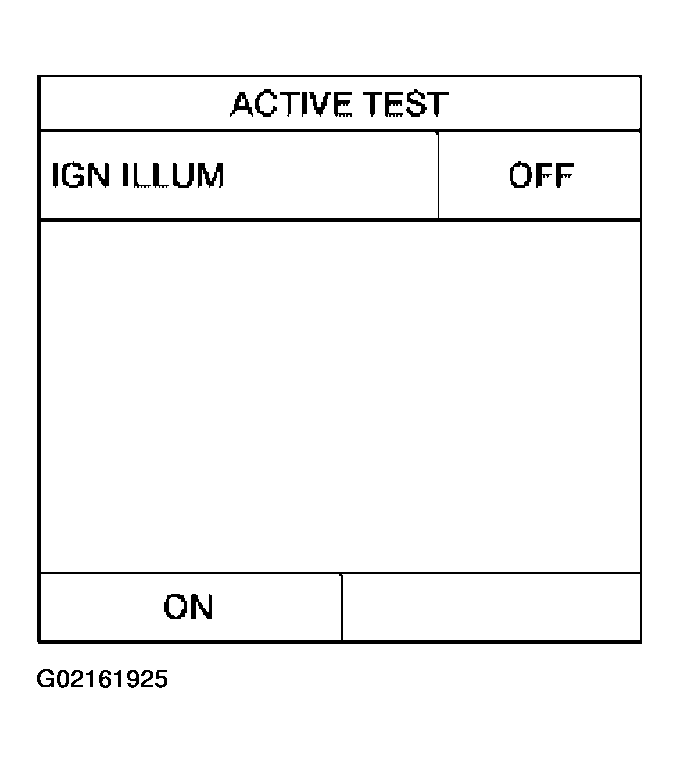

  Fig 1: Checking Ignition Illumination Operation With Consult-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II

Push unlock button of key fob with all doors closed and driver's door locked, and check voltage between BCM harness connector M20 terminal 34 (R/Y) and ground.

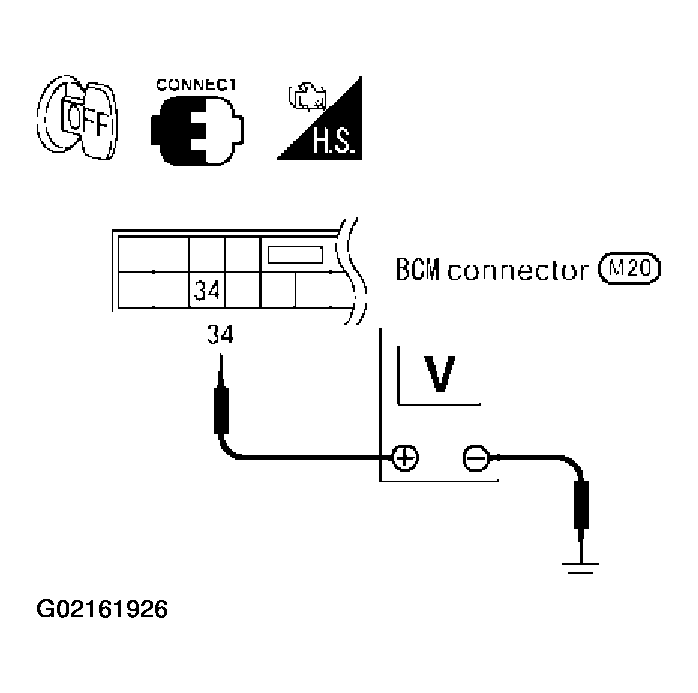

Fig 2: Checking Ignition Illumination Operation Without Consult-II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

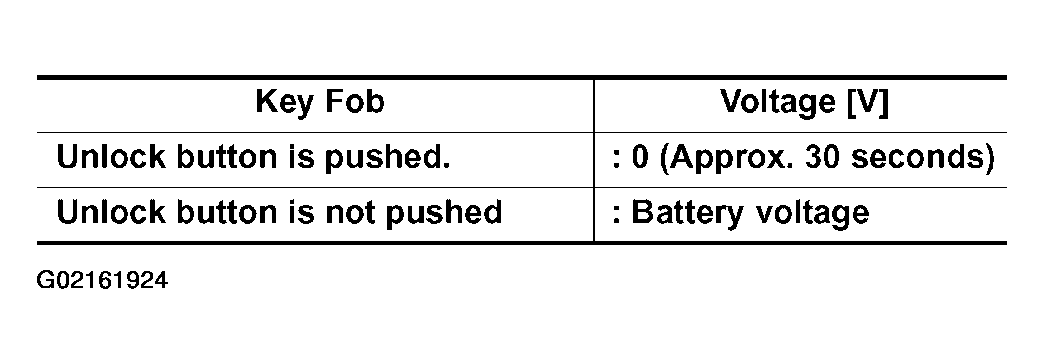

Fig 3: Checking Ignition Illumination Operation Without Consult-II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: System is OK.
2. NG: Check the following.
  - Harness for open or short between BCM and key hole illumination.
  - Ignition illumination
