Combination Meter Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of combination meter for damage, bent or loose connection (meter-side and harness-side).
OK or NG
1. OK: GO TO 2.
2. NG: Repair terminal or connector.
CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connector M24 terminals 1 (L) and 2 (Y).
  1 (L) - 2 (Y) : Approx. 54 - 66Ω
OK or NG
1. OK: Replace combination meter.
2. NG: Repair harness between harness connector M71 and combination meter.

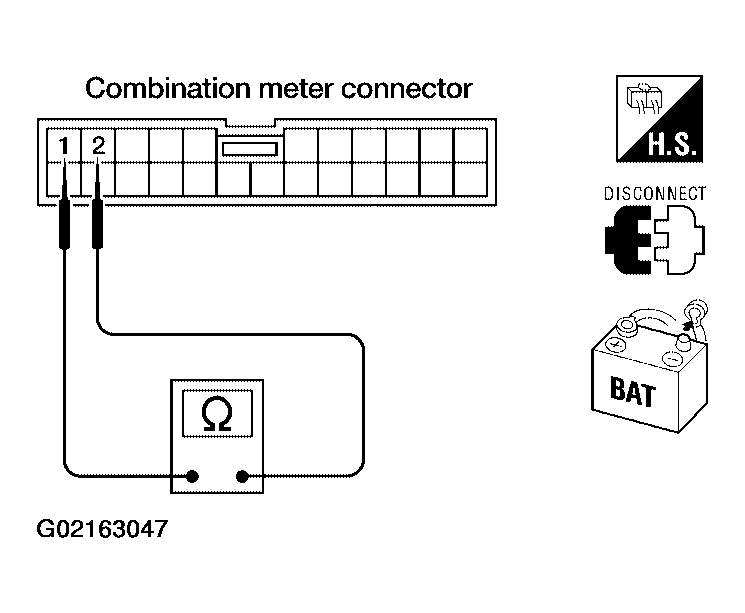

Fig 1: Checking Resistance Between Combination Meter Harness Connector M24 Terminals 1 (L) Pnd 2 (Y)
Courtesy of NISSAN MOTOR CO., U.S.A.
