Check Sheet Results (Example)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

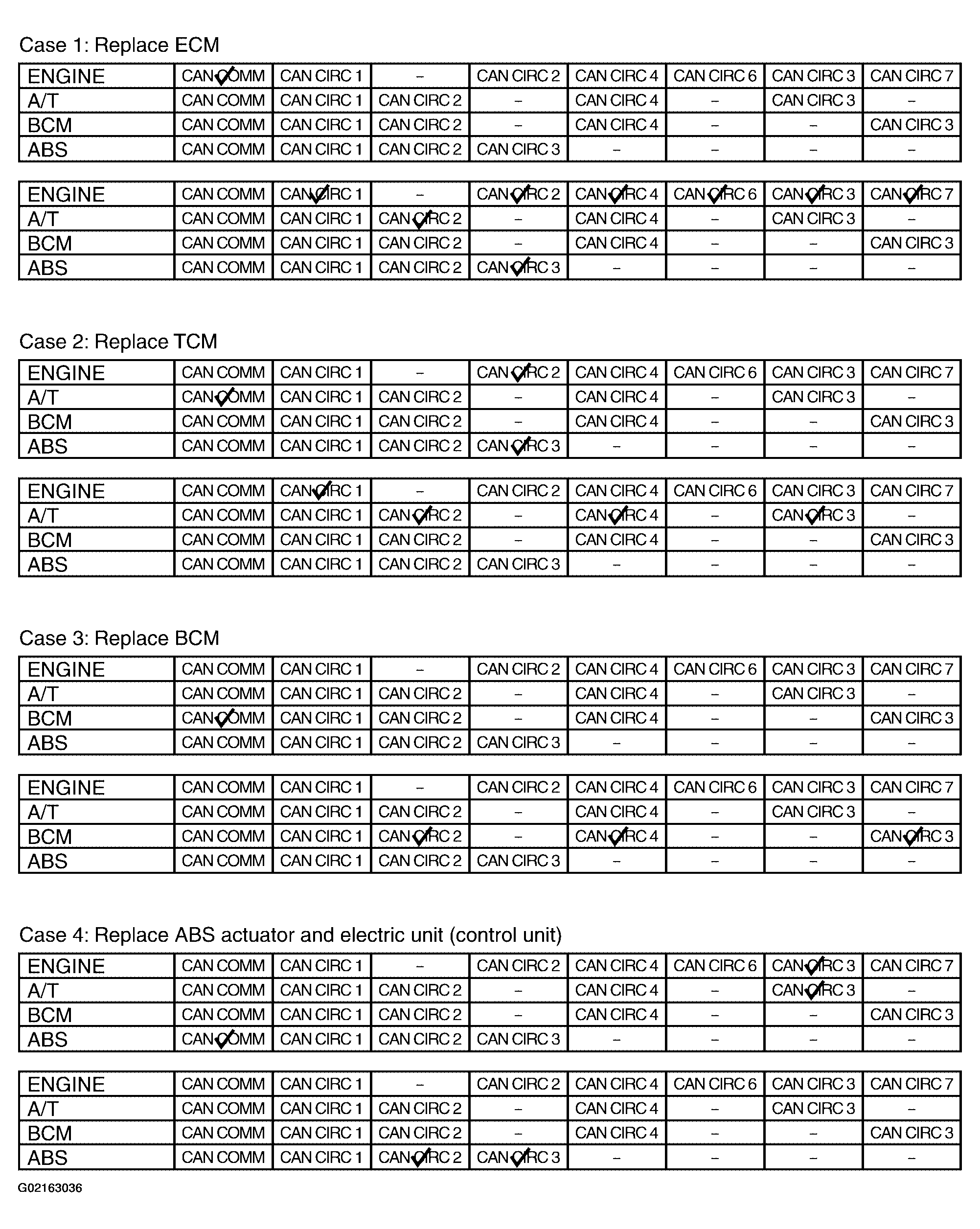

Fig 1: CAN System Check Sheet Results (Example) (Case 1 To 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

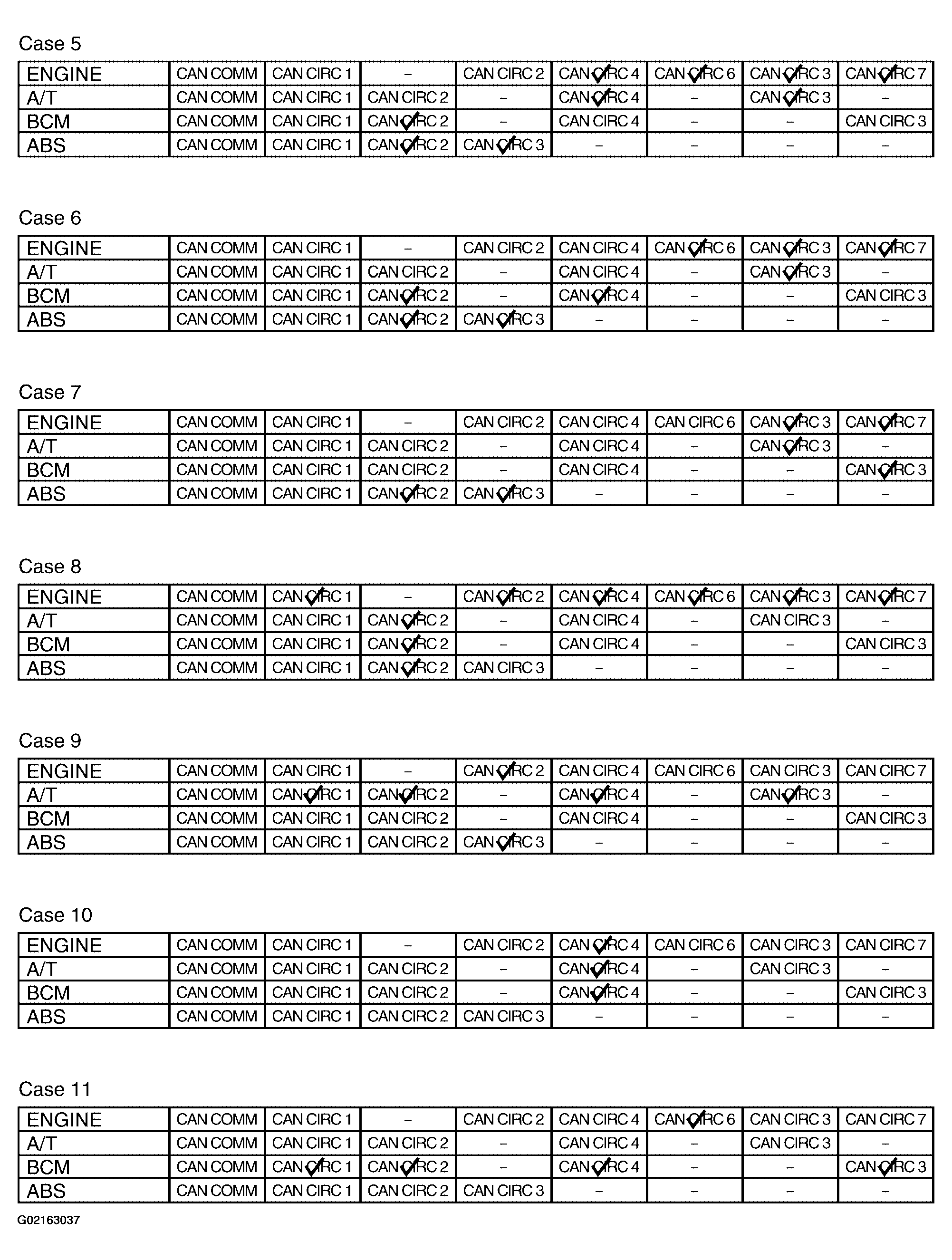

Fig 2: CAN System Check Sheet Results (Example) (Case 5 To 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

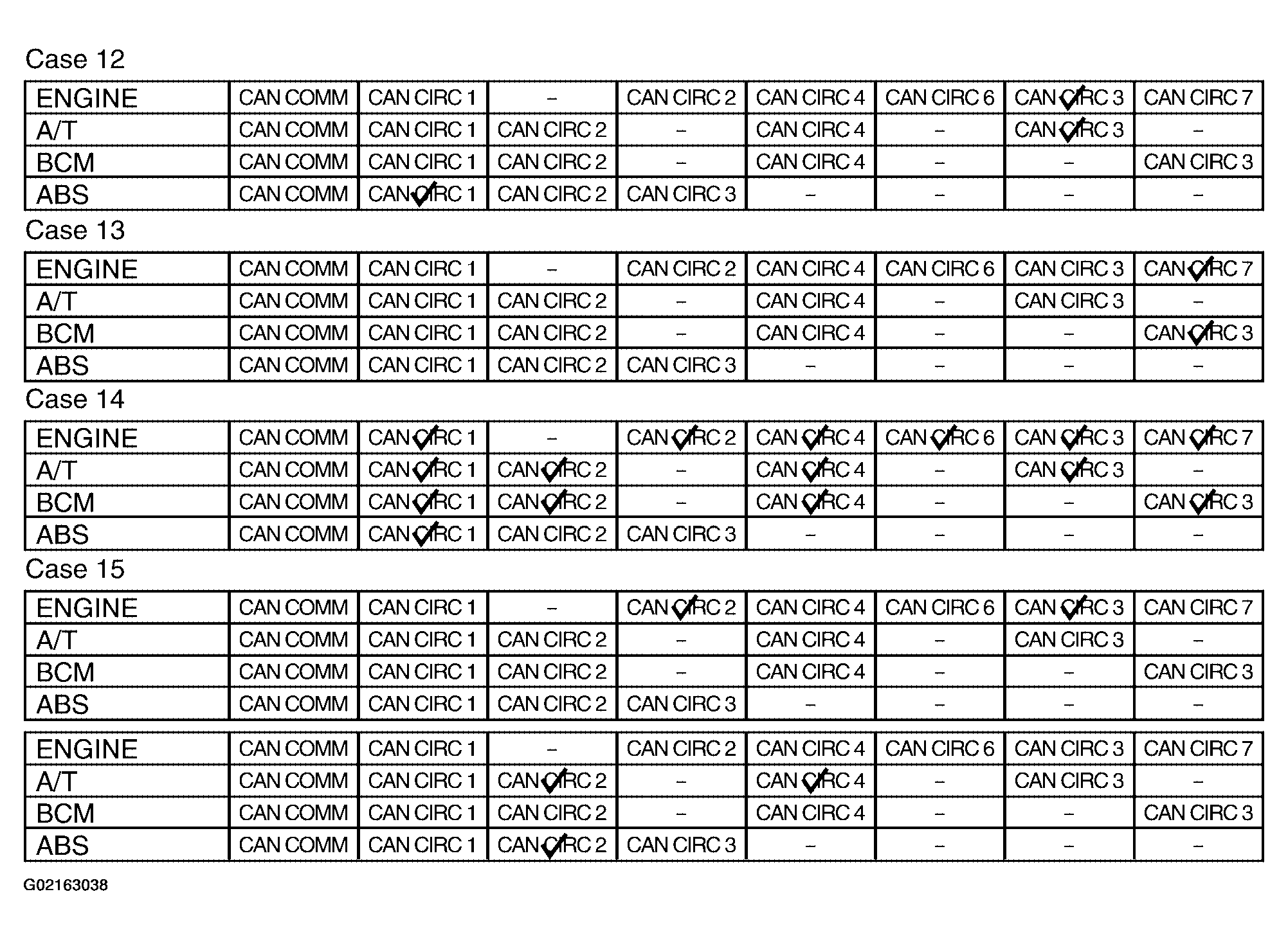

Fig 3: CAN System Check Sheet Results (Example) (Case 12 To 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "NG" is displayed on "CAN COMM" for the diagnosed control unit, replace the control unit.
