Abs Actuator And Electric Unit: Notes
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

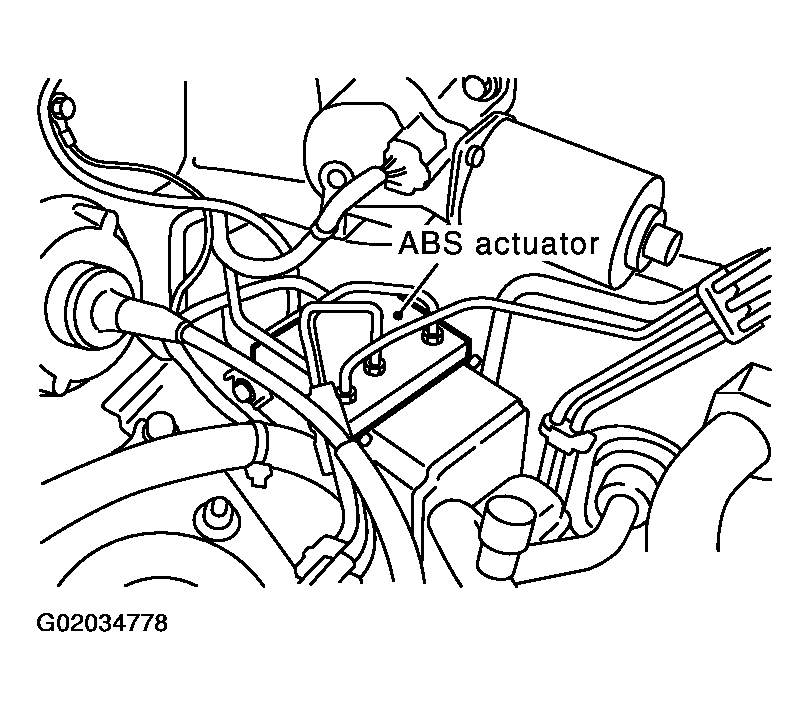

The ABS actuator and electric unit contains:
- An electric motor and pump
- Two relays
- Six solenoid valves, each inlet and outlet for
- LH front
- RH front
- Rear
- ABS control unit
This component controls the hydraulic circuit and increases, holds or decreases hydraulic pressure to all or individual wheels. The ABS actuator and electric unit is serviced as an assembly.
