Active Test Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

When conducting Active test, vehicle must be stationary.
When ABS warning lamp stays on, never conduct Active test.

Turn ignition switch OFF.
Connect CONSULT-II to data link connector.
Start engine.
Touch "START" on CONSULT-II screen.

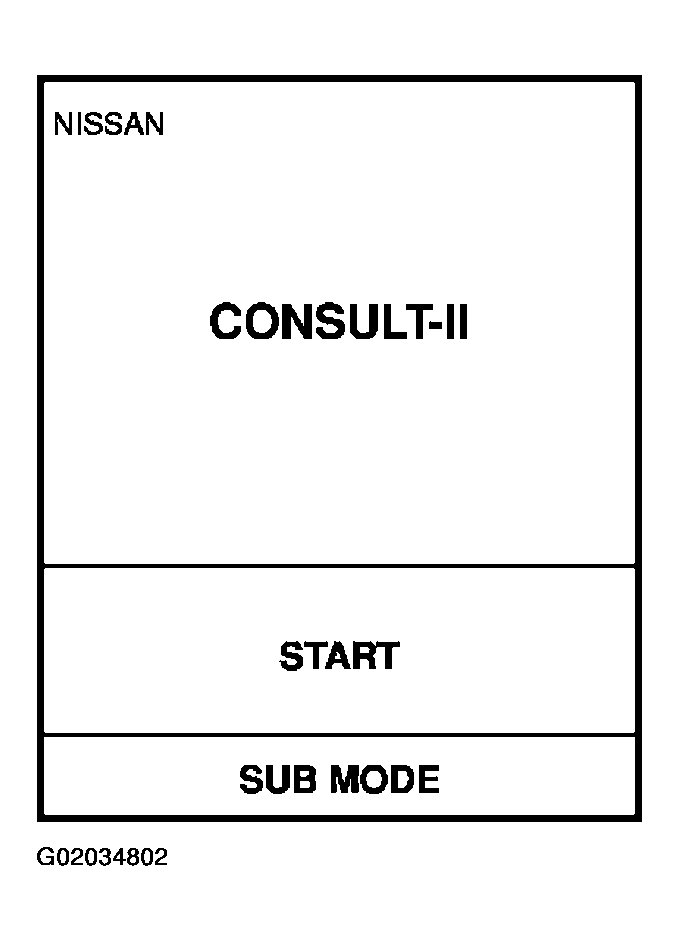

Fig 1: Consult II START Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

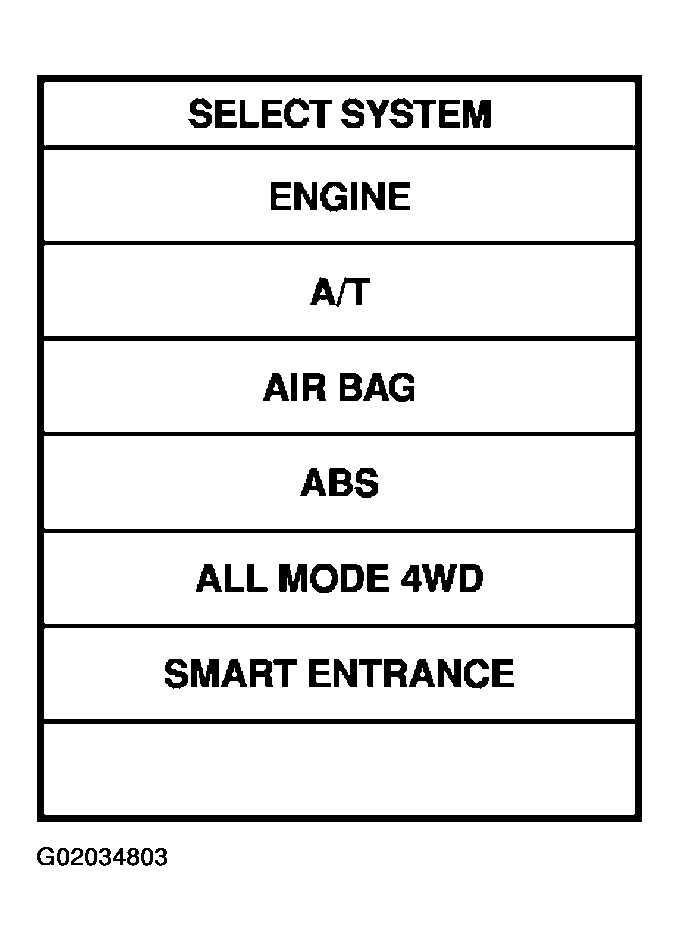

Fig 2: Consult II ABS Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ACTIVE TEST".

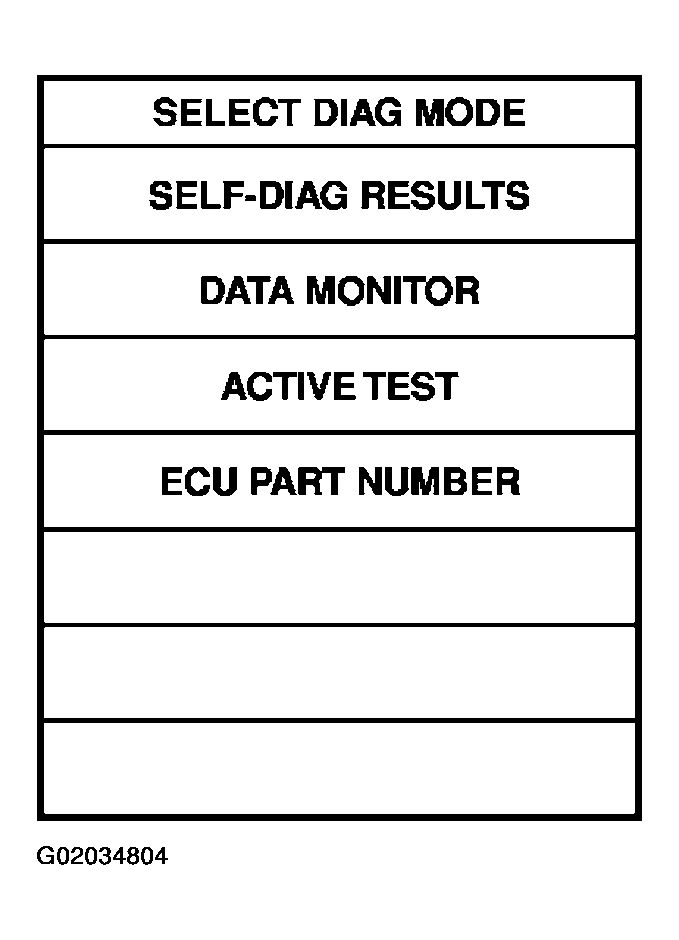

Fig 3: Consult II ACTIVE TEST Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select active test item by touching screen.

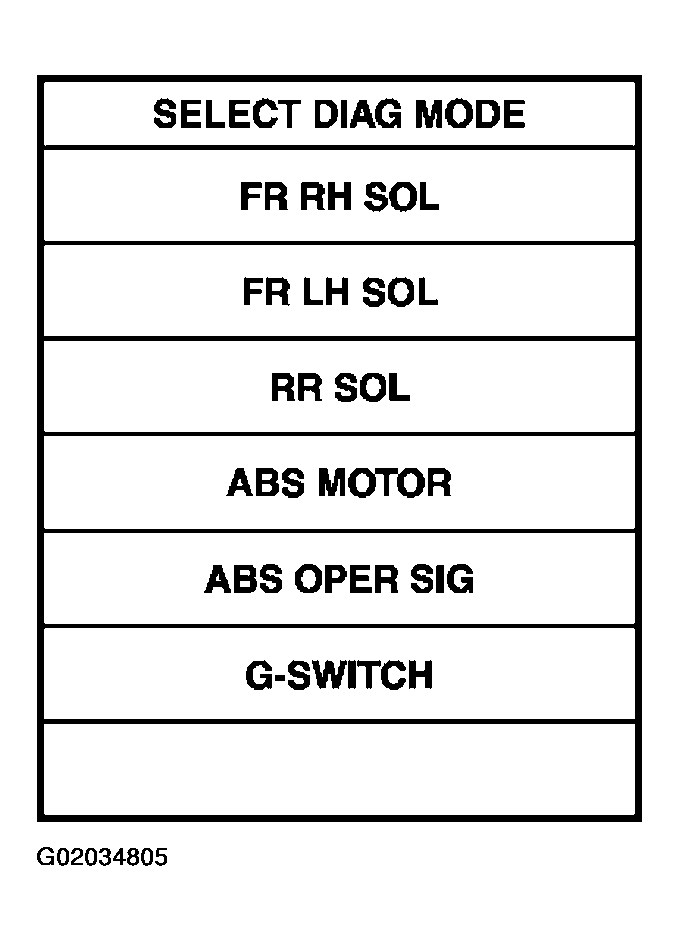

Fig 4: Consult II SELECT DIAG MODE Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Carry out the active test by touching screen key.

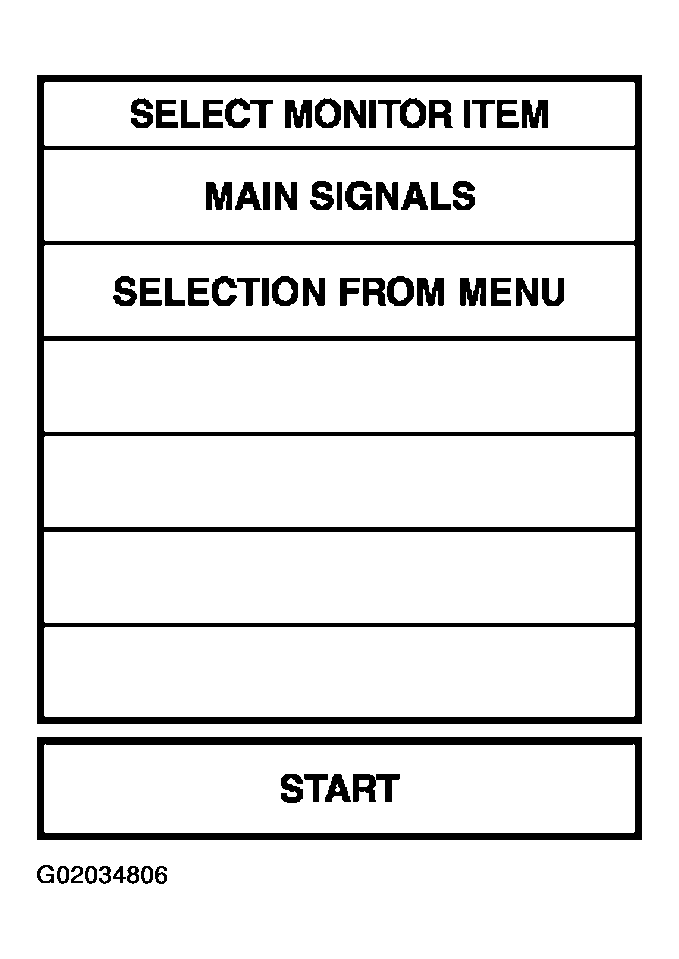

Fig 5: Consult II START Display
