Data Monitor Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II to data link connector for CONSULT-II.
Turn ignition switch ON.
Touch "START" on CONSULT-II screen.

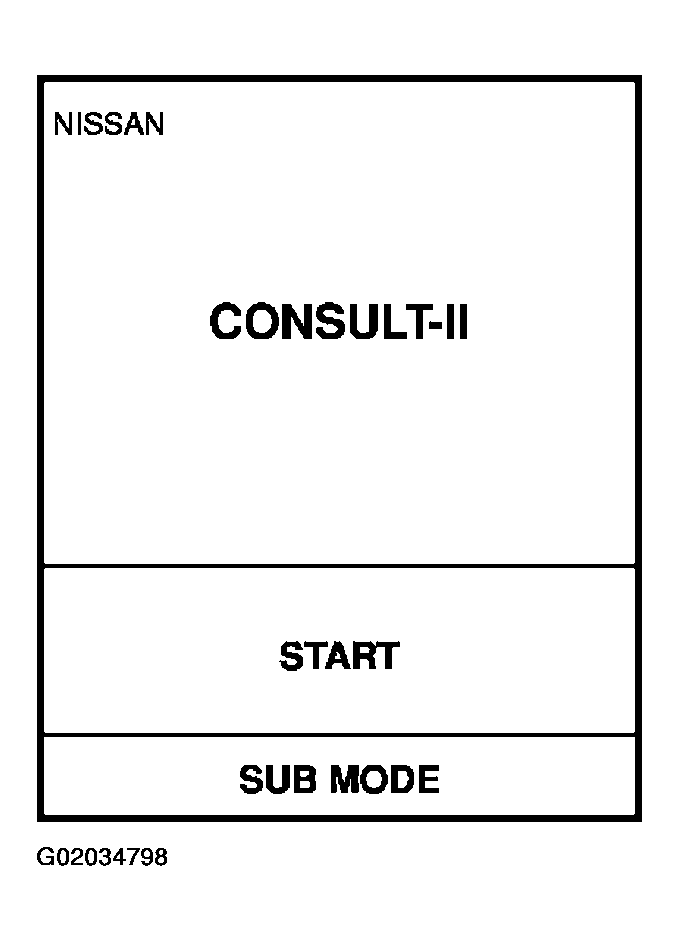

Fig 1: Consult II START Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

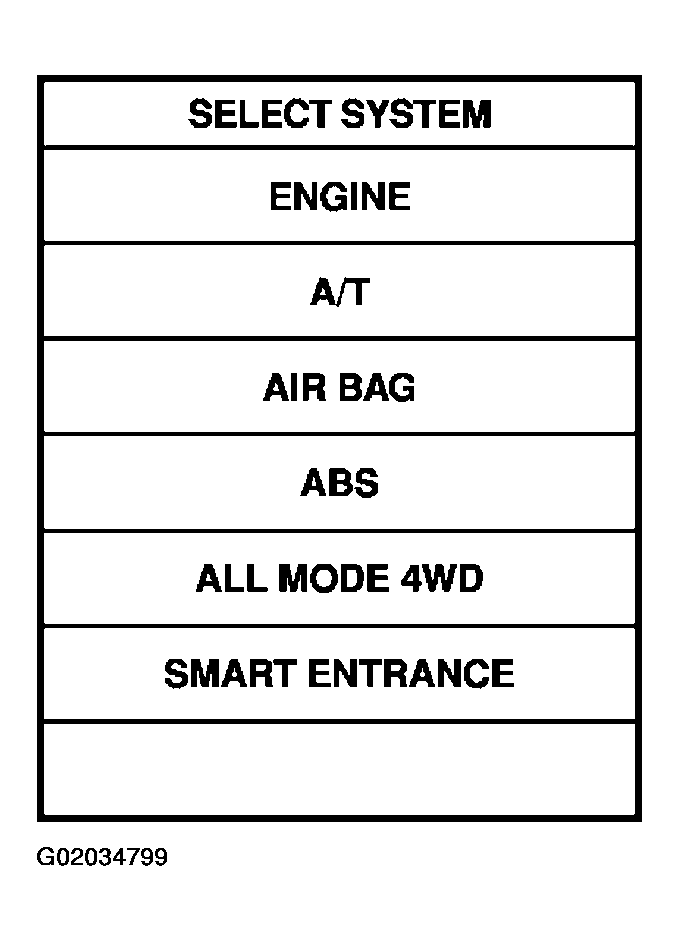

Fig 2: Consult II ABS Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

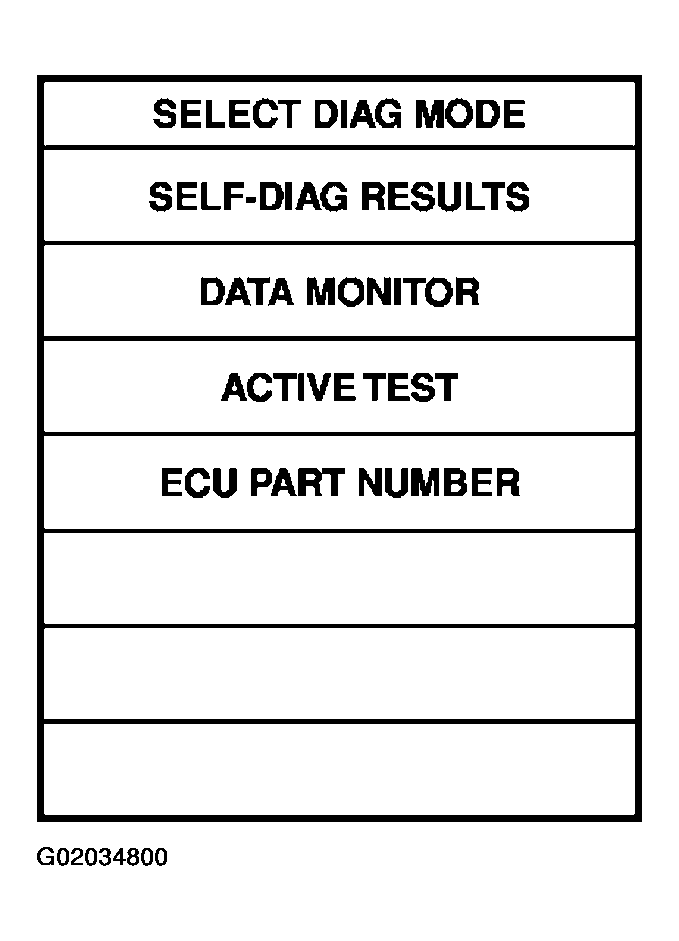

Fig 3: Consult II SELECT DIAG MODE Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SETTING" on "SELECT MONITOR ITEM" screen.

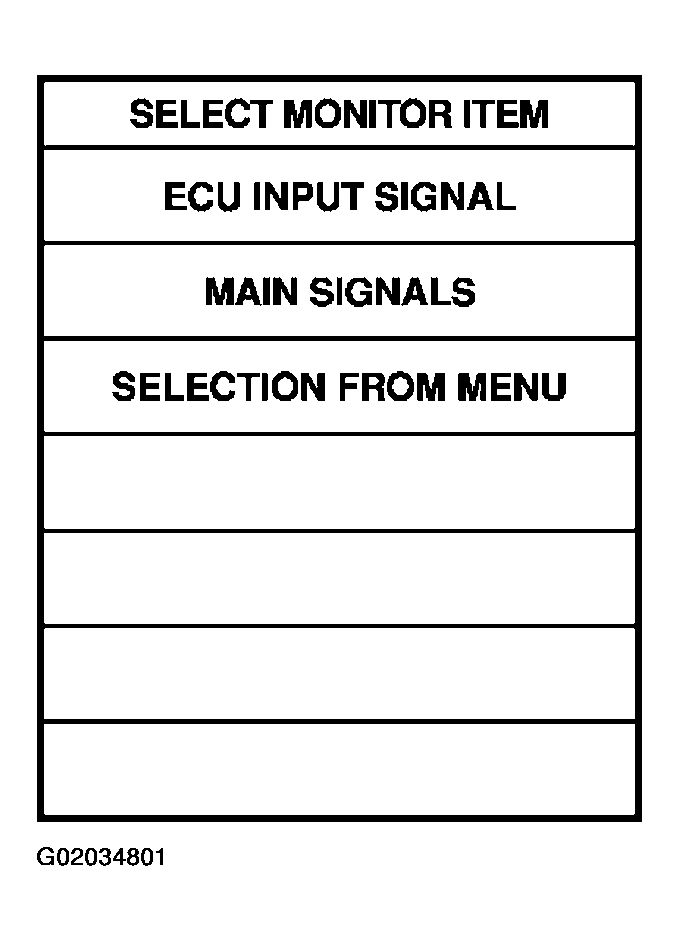

Fig 4: Consult II SELECT MONITOR ITEM Display
Courtesy of NISSAN MOTOR CO., U.S.A.
