Front Sensor Rotor: Installation
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

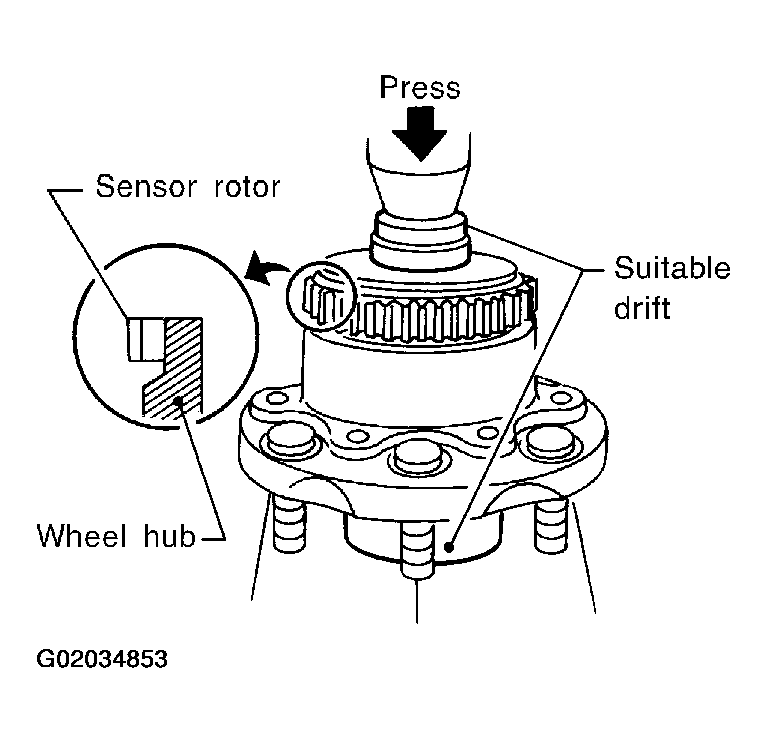

Install the sensor rotor using suitable drift and press.
- Always replace sensor rotor with new one.
- Pay attention to the direction of front sensor rotor as shown in figure.
Courtesy of NISSAN MOTOR CO., U.S.A.
