Checking Radiator Cap

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Pull the negative-pressure valve to open it and check that it closes completely when released.

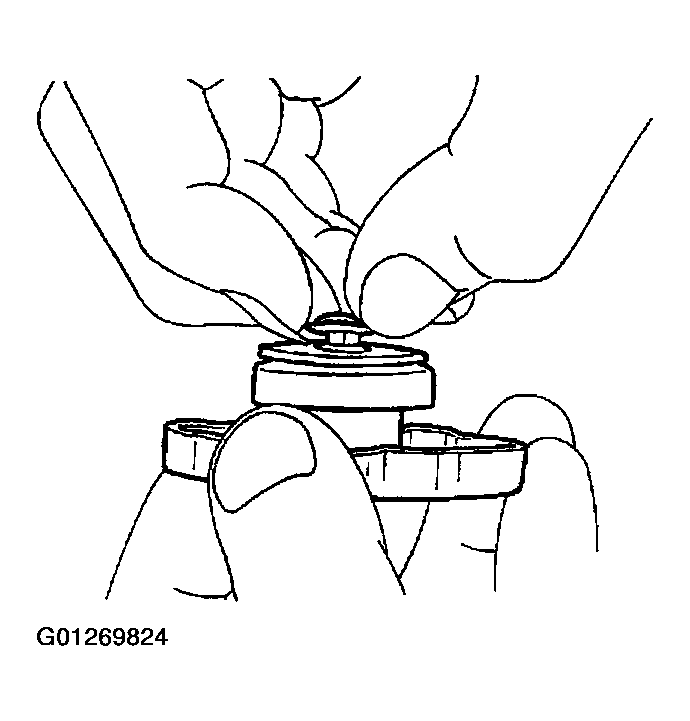

Fig 1: Checking Negative-Pressure Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check that there is no dirt or damage on the valve seat of the radiator cap negative-pressure valve.
- Check that there are no unusualness in the opening and closing conditions of the negative-pressure valve.
Check radiator cap relief pressure.

Fig 2: Checking Radiator Cap Relief Pressure
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Standard:
2. 78 - 98 kPa (0.8 - 1.0 kg/cm ² , 11 - 14 psi)
3. Limit:
4. 59 kPa (0.6 kg/cm ² , 9 psi)
- When connecting the radiator cap to the tester, apply engine coolant to the cap seal surface.
- Replace the radiator cap if there is an unusualness in the negative-pressure valve, or if the open-valve pressure is outside of the limit.
