System Diagram

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Type 17

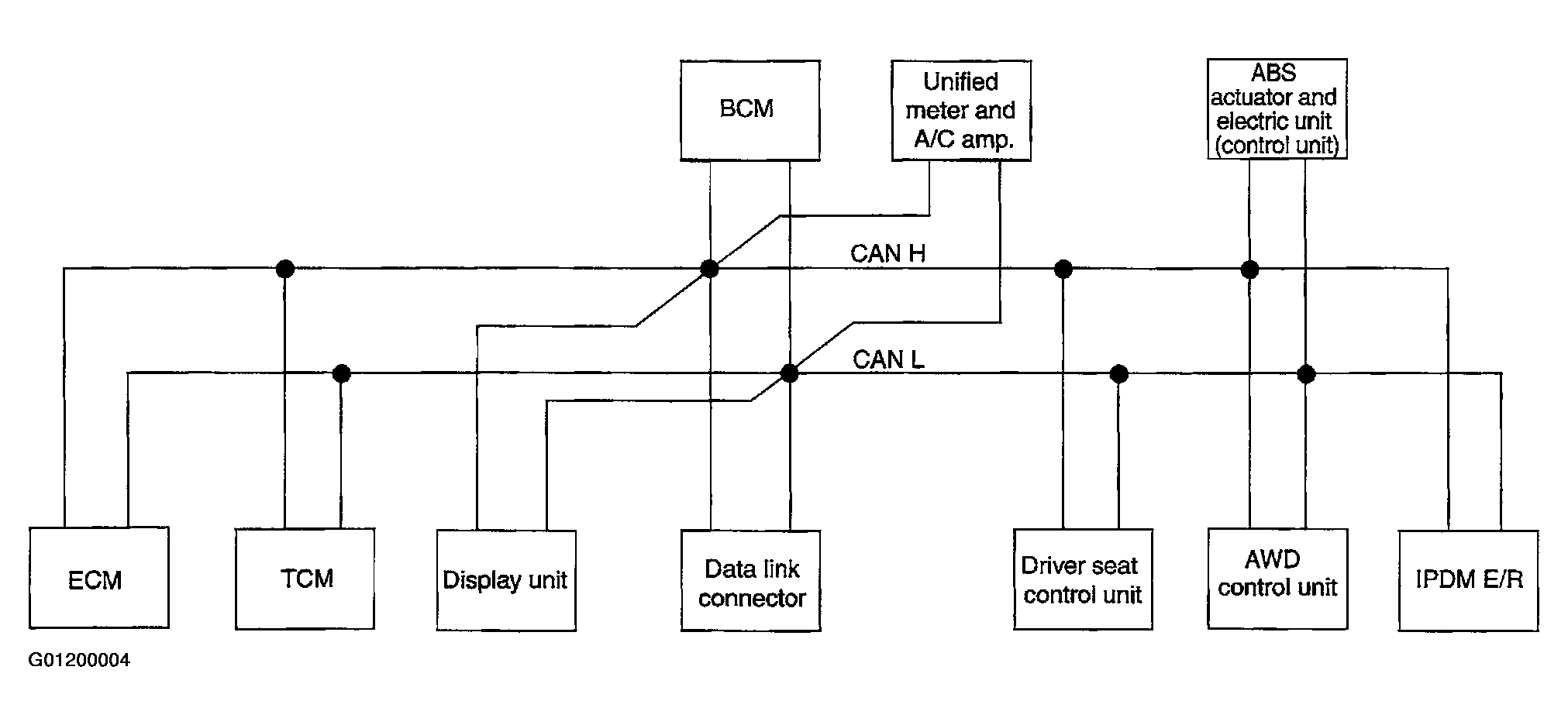

Fig 1: CAN Communication Unit (ABS Models) System Diagram (Type 17)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 18

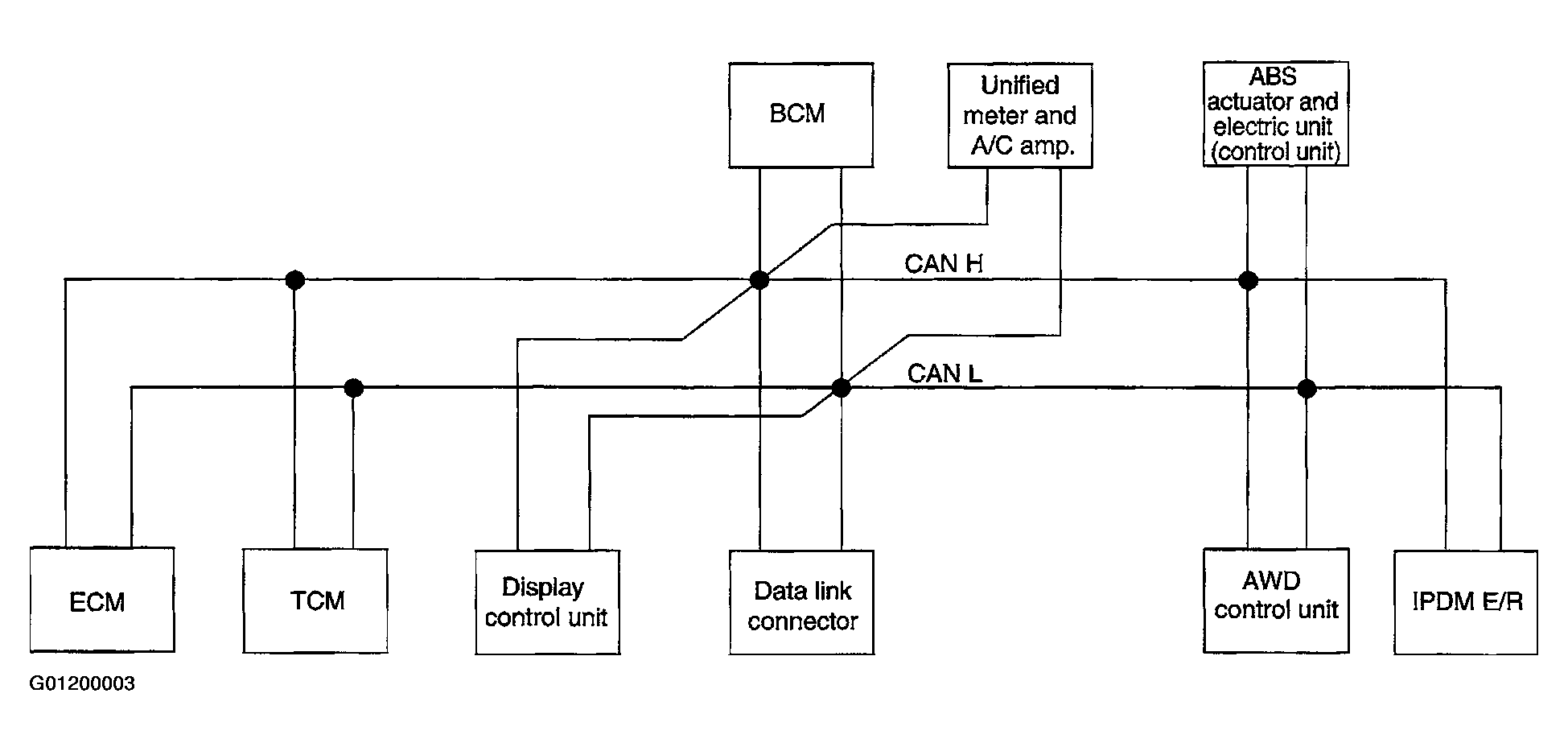

Fig 2: CAN Communication Unit (ABS Models) System Diagram (Type 18)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 19

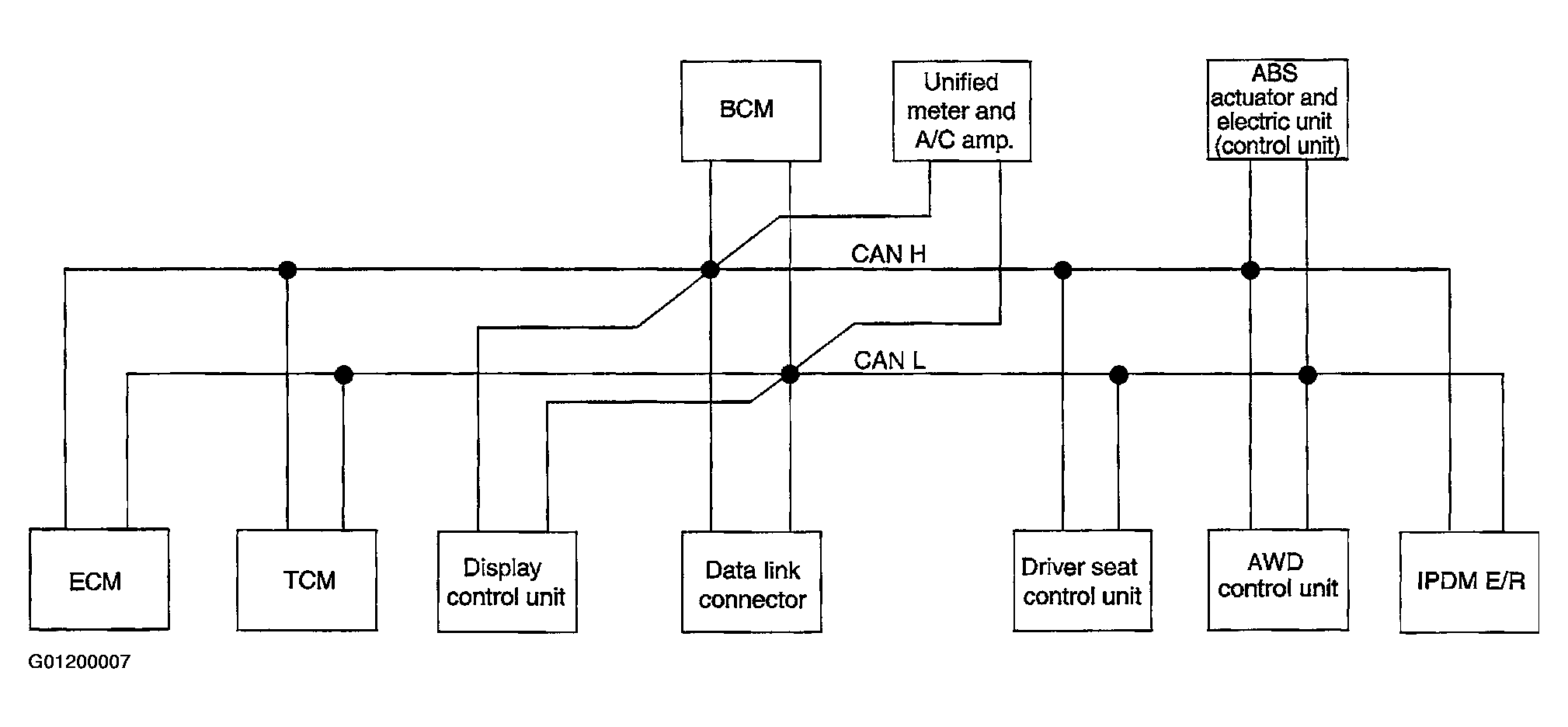

Fig 3: CAN Communication Unit (ABS Models) System Diagram (Type 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 20

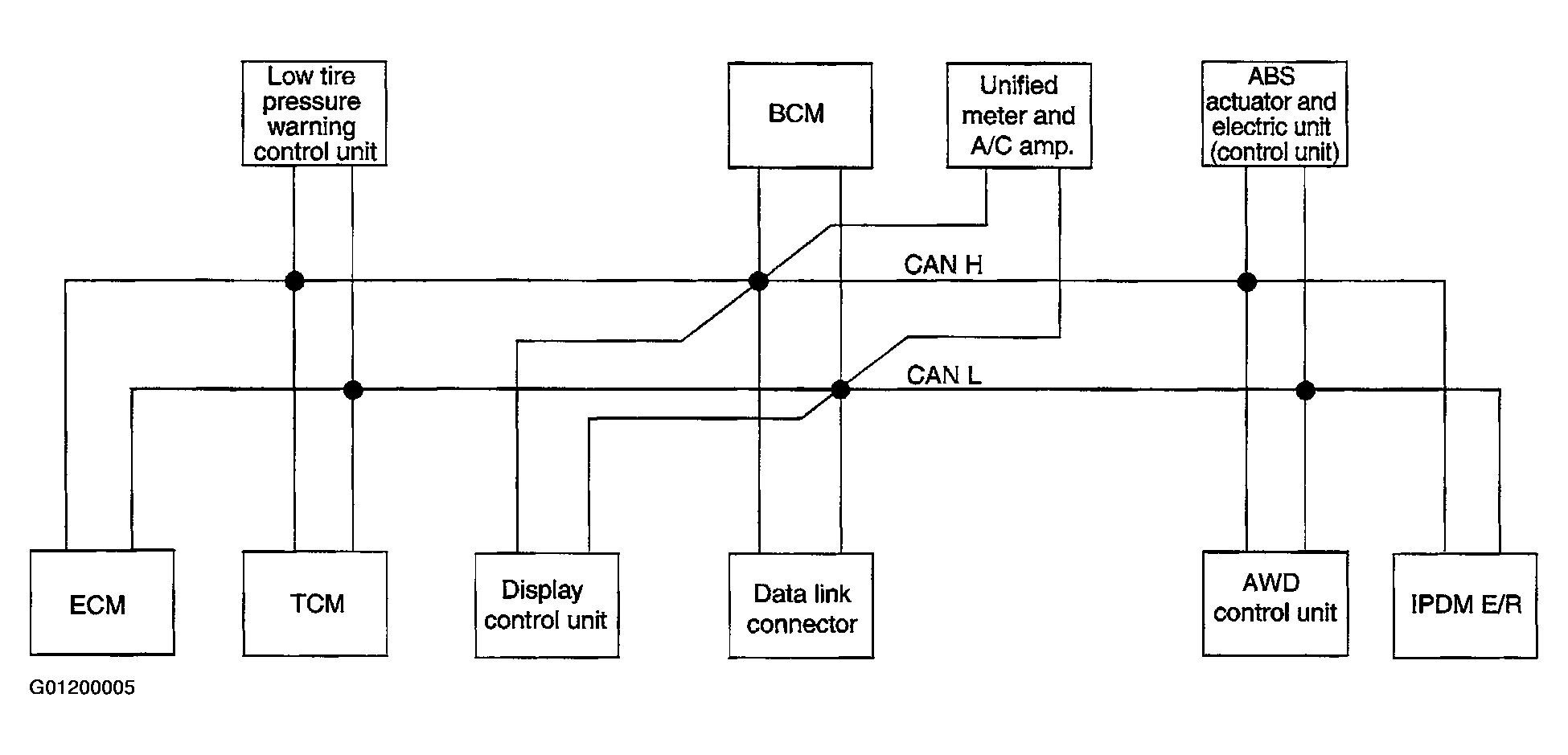

Fig 4: CAN Communication Unit (ABS Models) System Diagram (Type 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 21

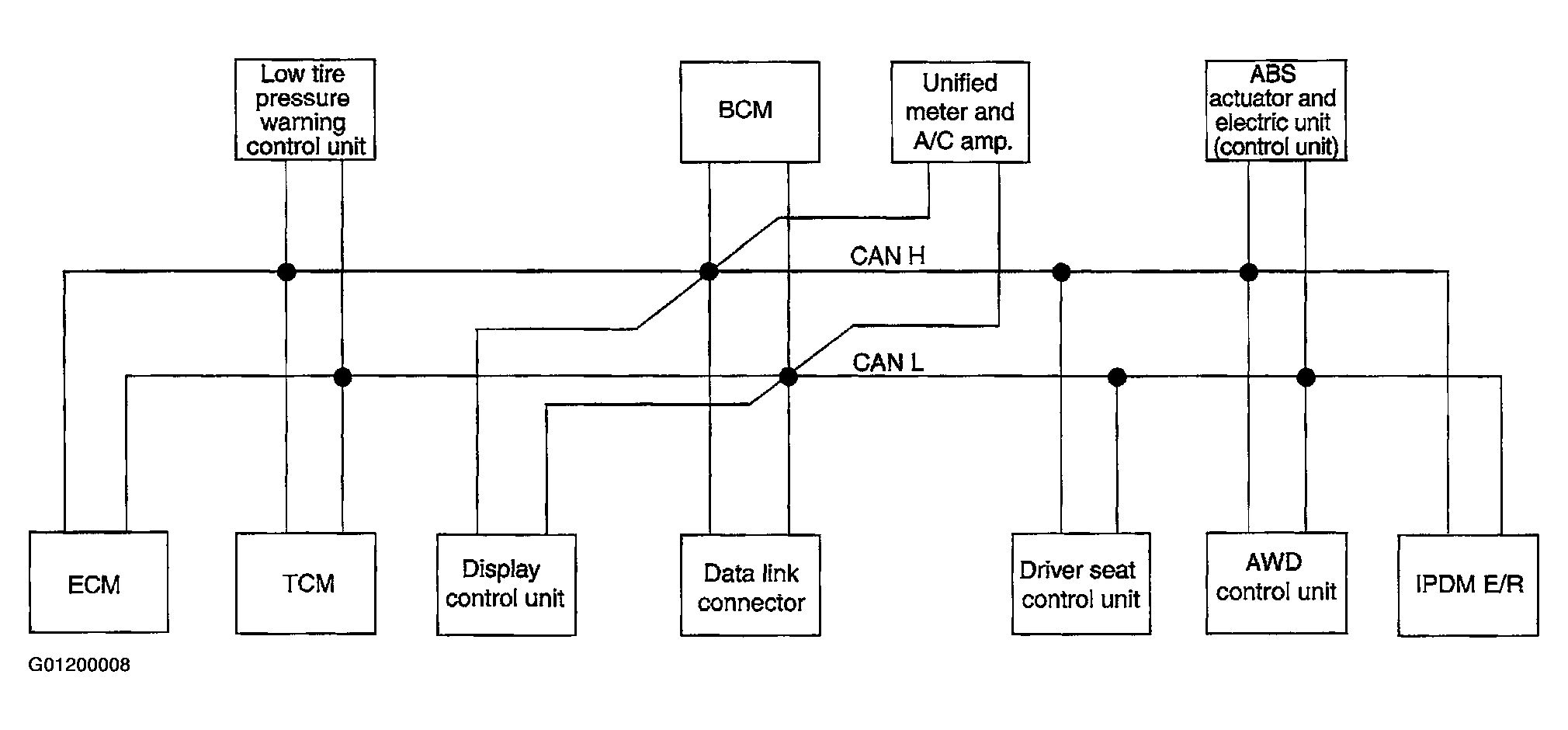

Fig 5: CAN Communication Unit (ABS Models) System Diagram (Type 21)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 22

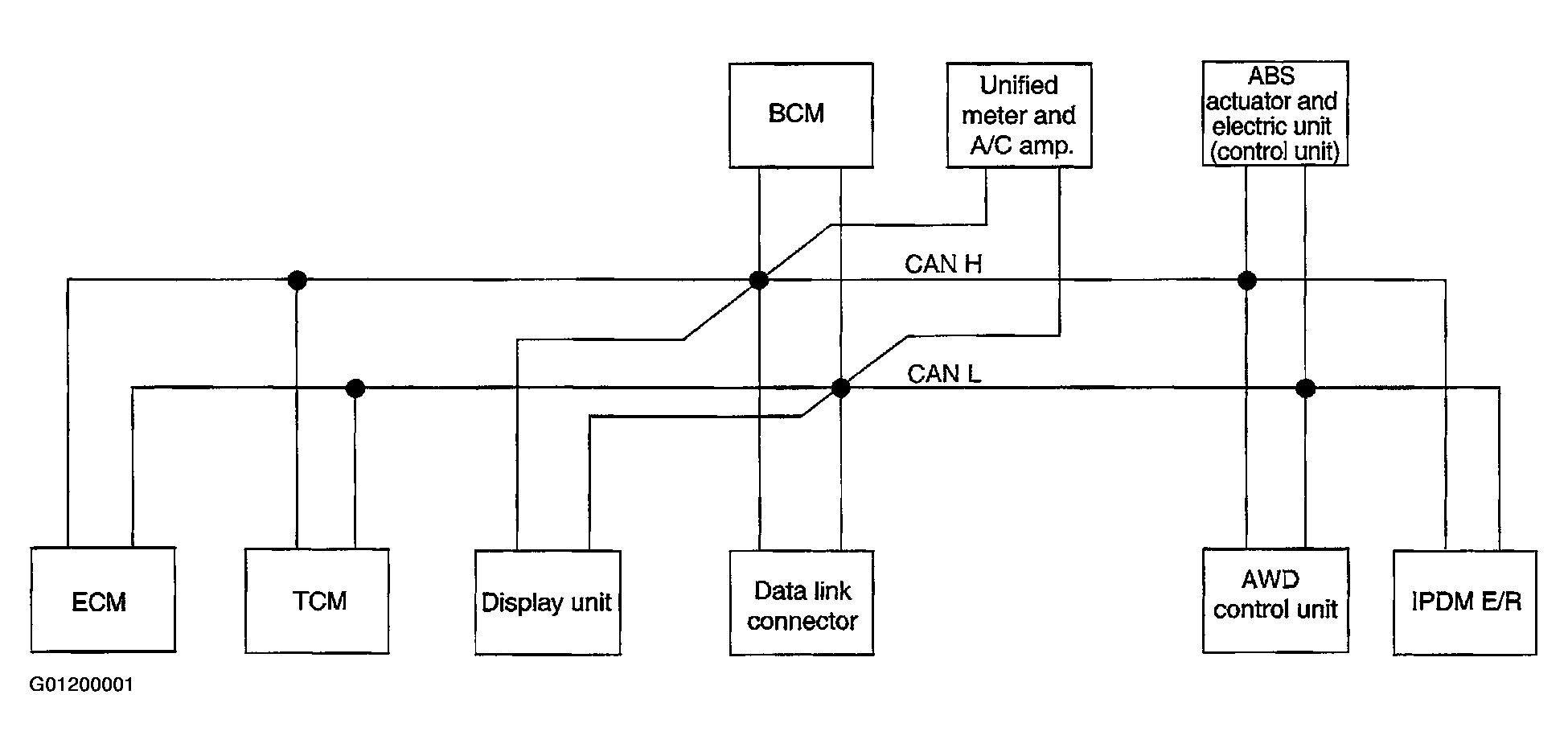

Fig 6: CAN Communication Unit (ABS Models) System Diagram (Type 22)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 23

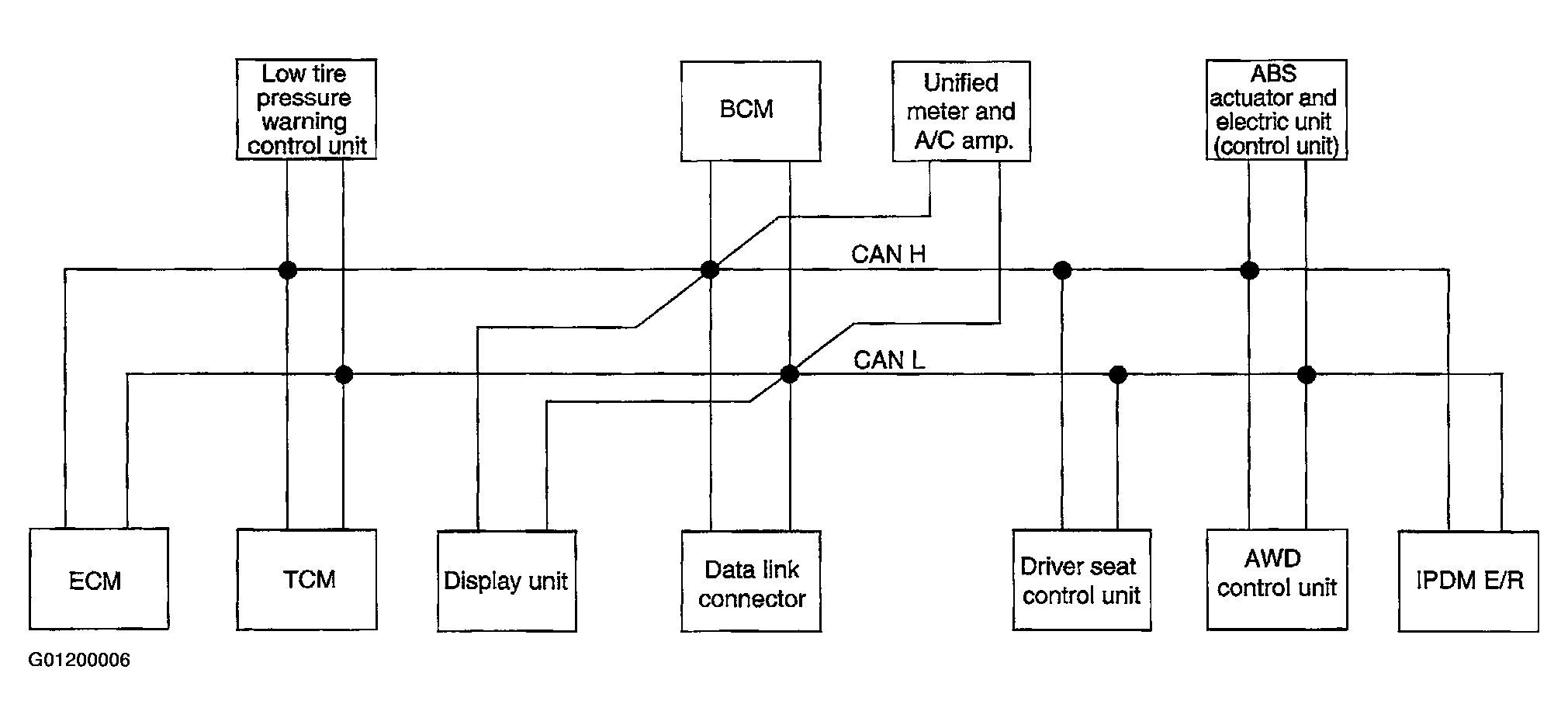

Fig 7: CAN Communication Unit (ABS Models) System Diagram (Type 23)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 24

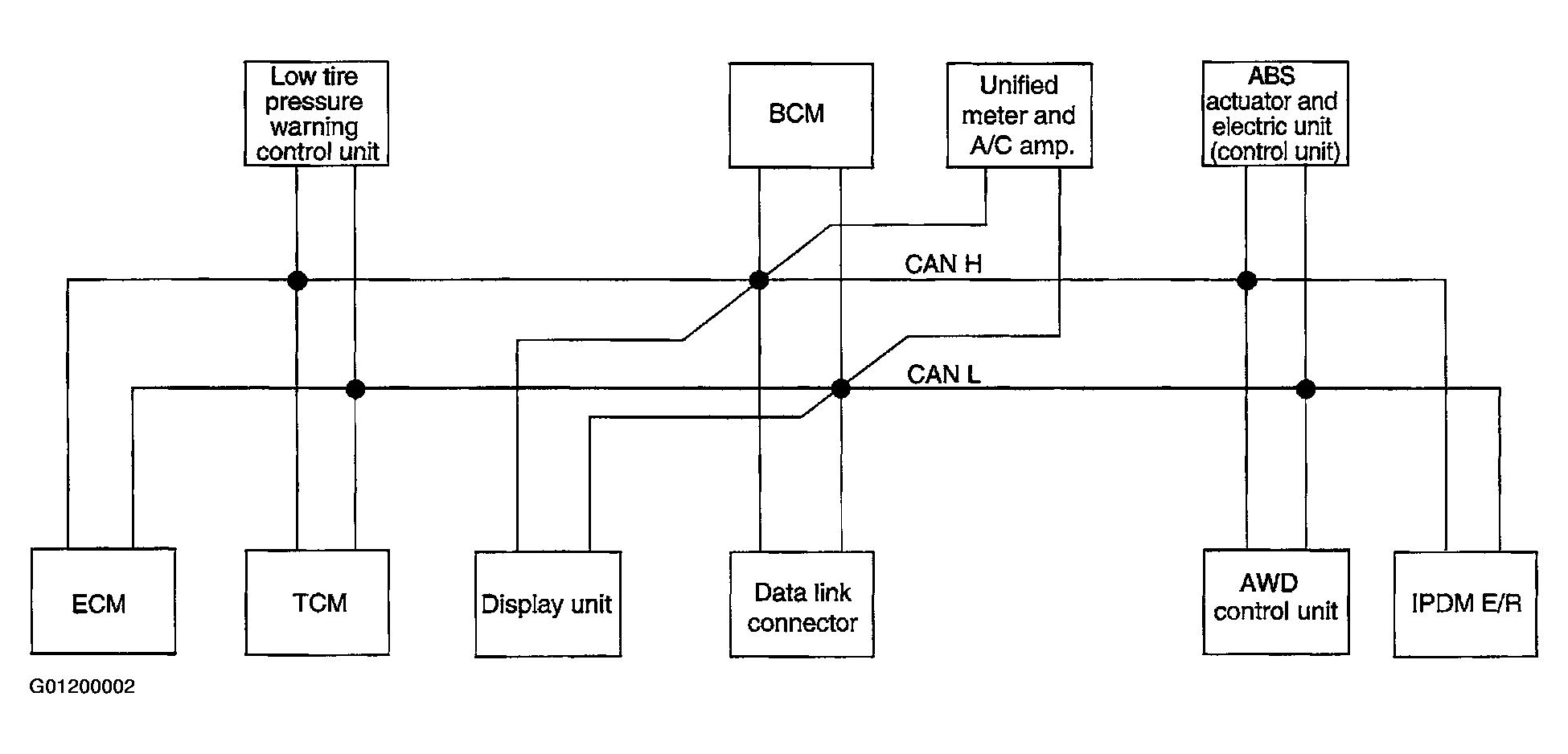

Fig 8: CAN Communication Unit (ABS Models) System Diagram (Type 24)
Courtesy of NISSAN MOTOR CO., U.S.A.
