System Diagram

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Type 25

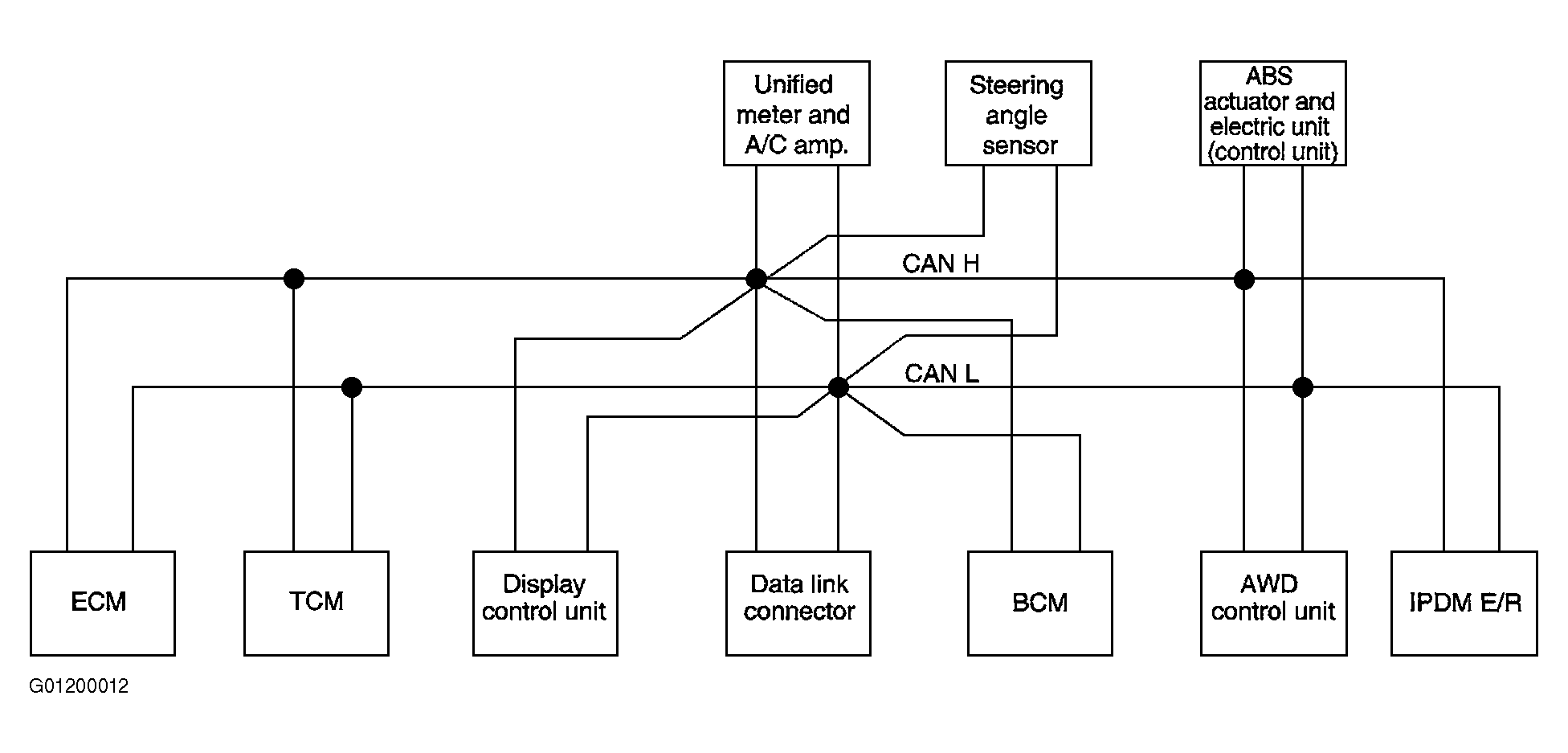

Fig 1: CAN Communication Unit (VDC Models) System Diagram (Type 25)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 26

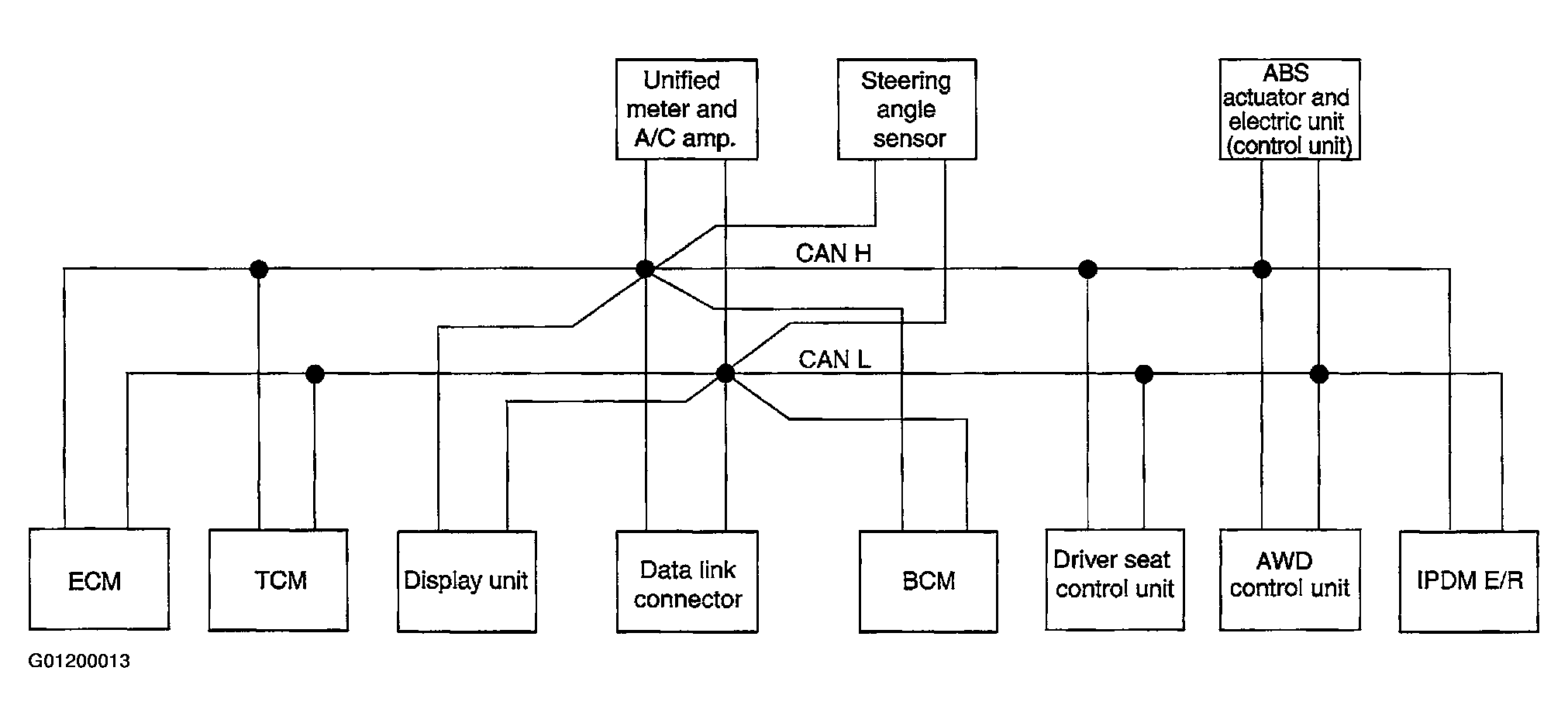

Fig 2: CAN Communication Unit (VDC Models) System Diagram (Type 26)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 27

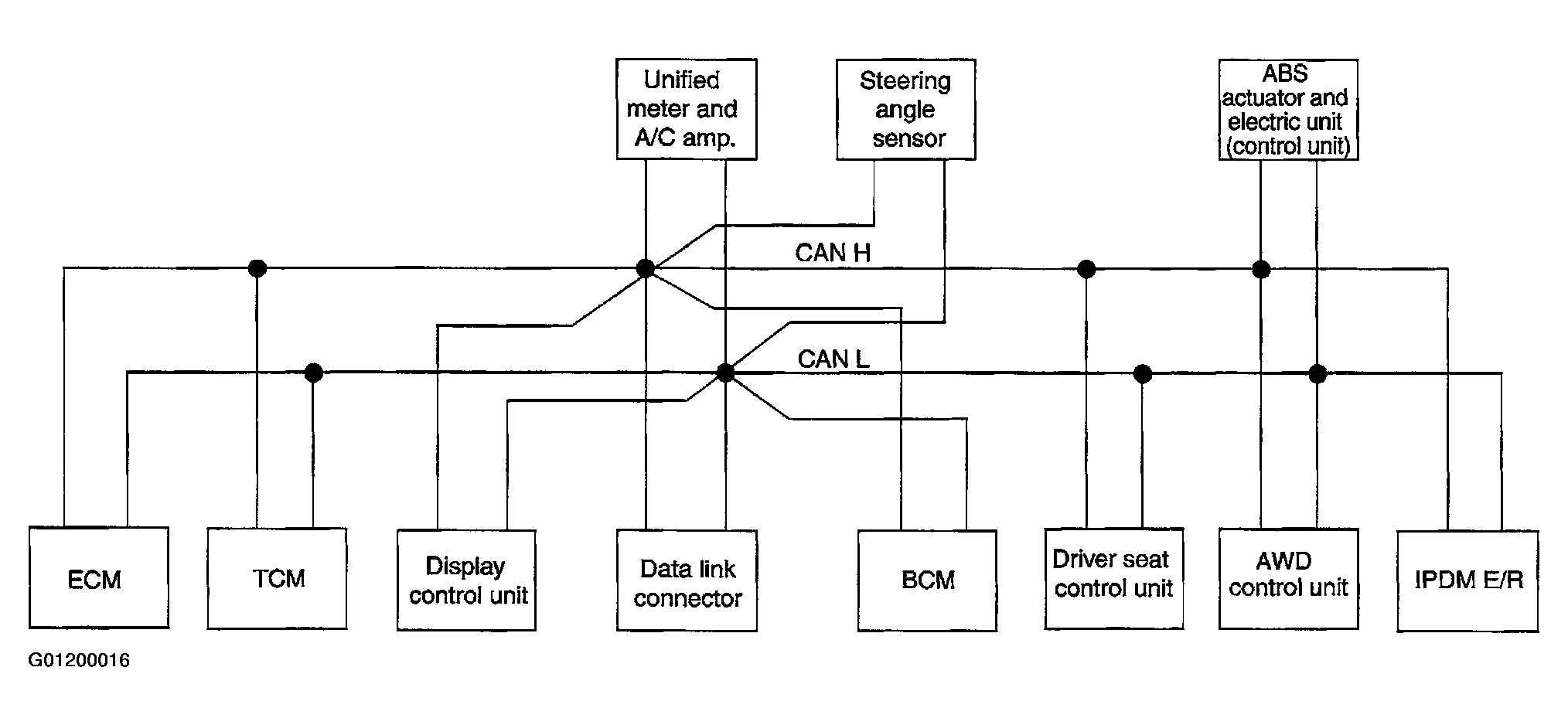

Fig 3: CAN Communication Unit (VDC Models) System Diagram (Type 27)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 28

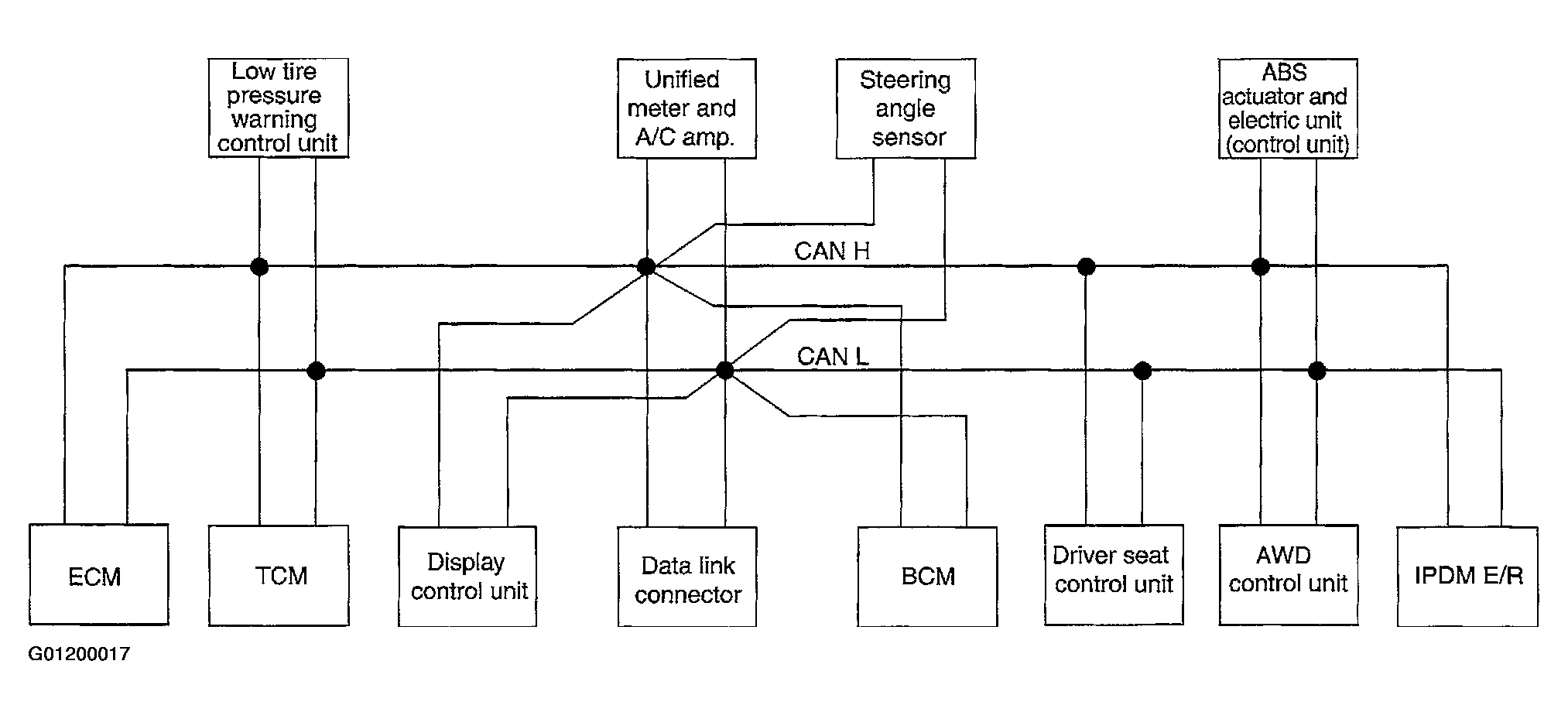

Fig 4: CAN Communication Unit (VDC Models) System Diagram (Type 28)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 29

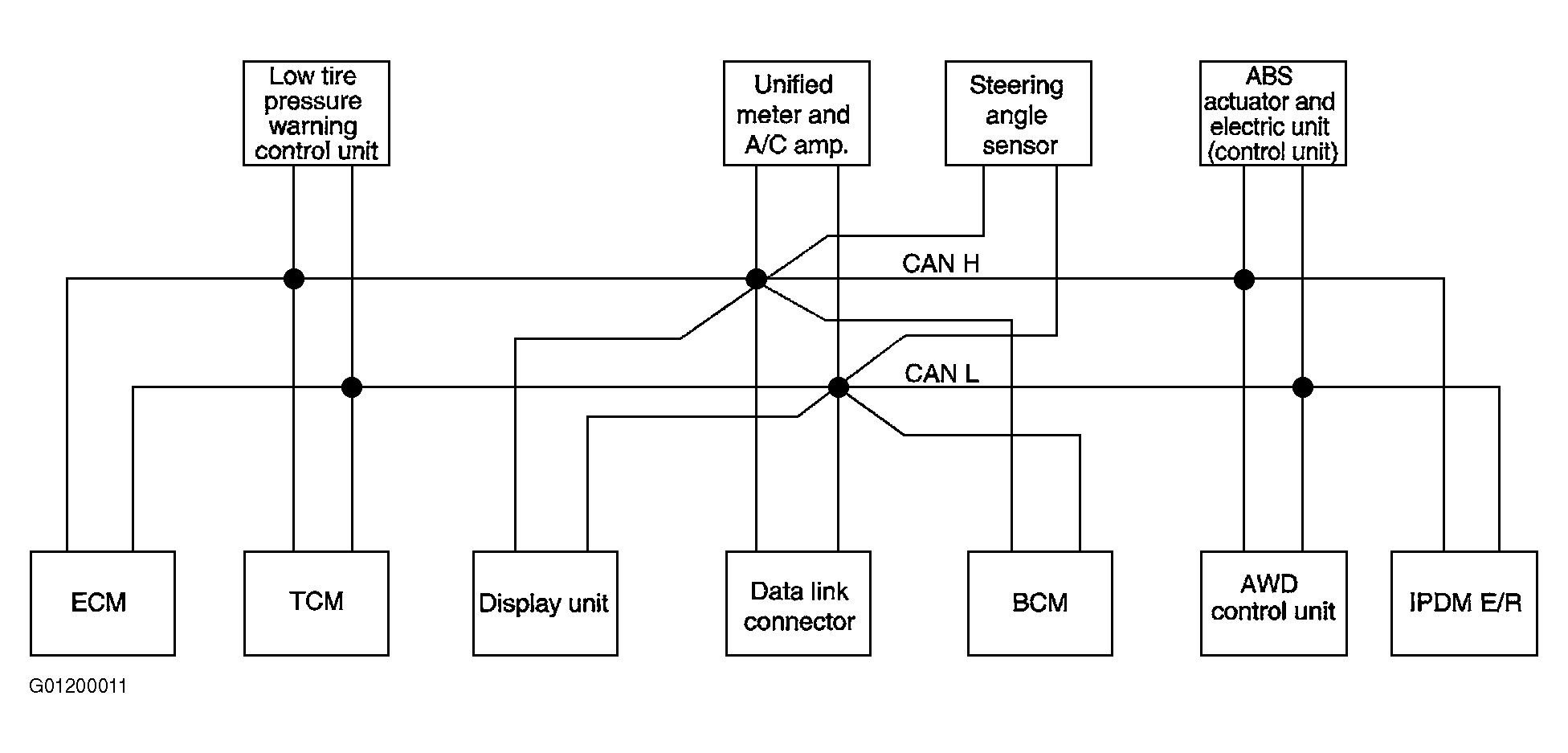

Fig 5: CAN Communication Unit (VDC Models) System Diagram (Type 29)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 30

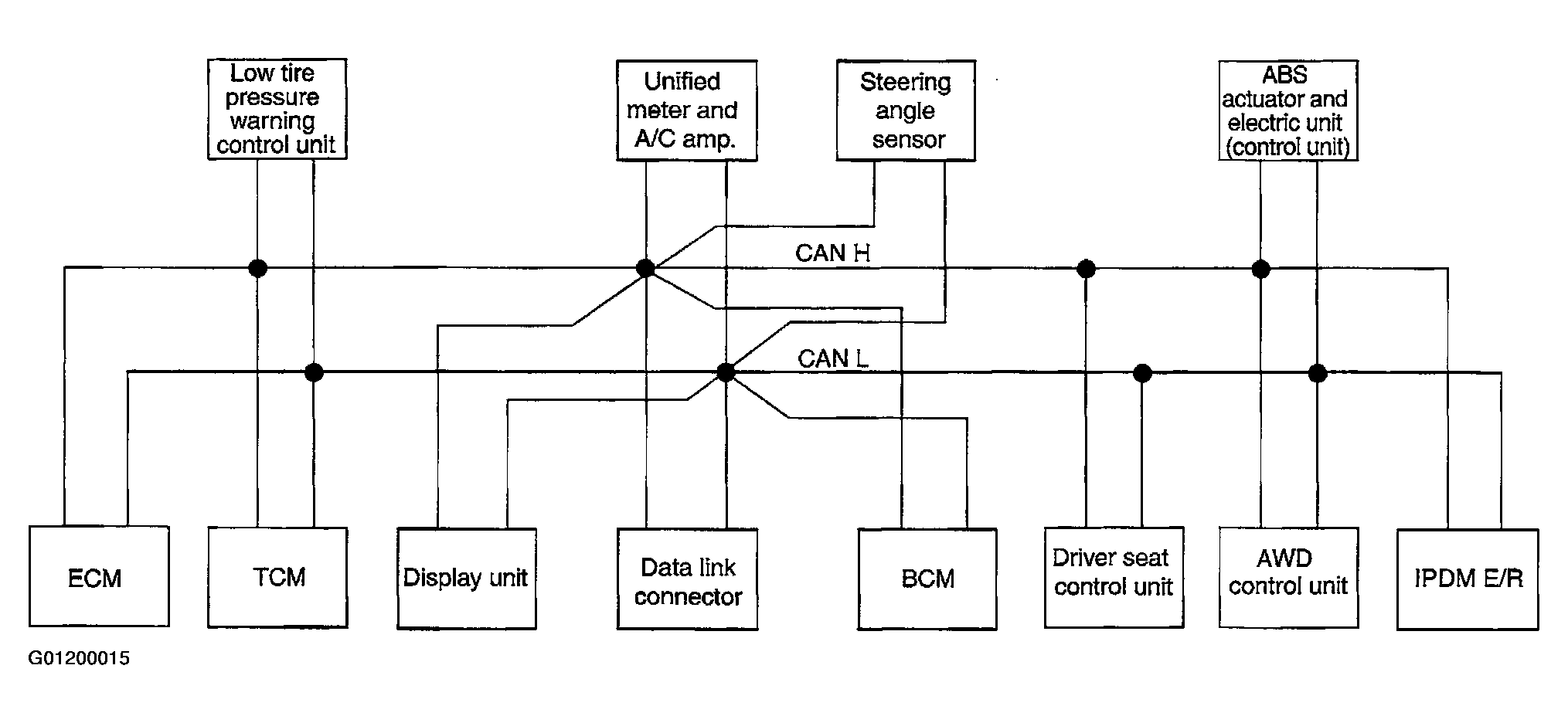

Fig 6: CAN Communication Unit (VDC Models) System Diagram (Type 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 31

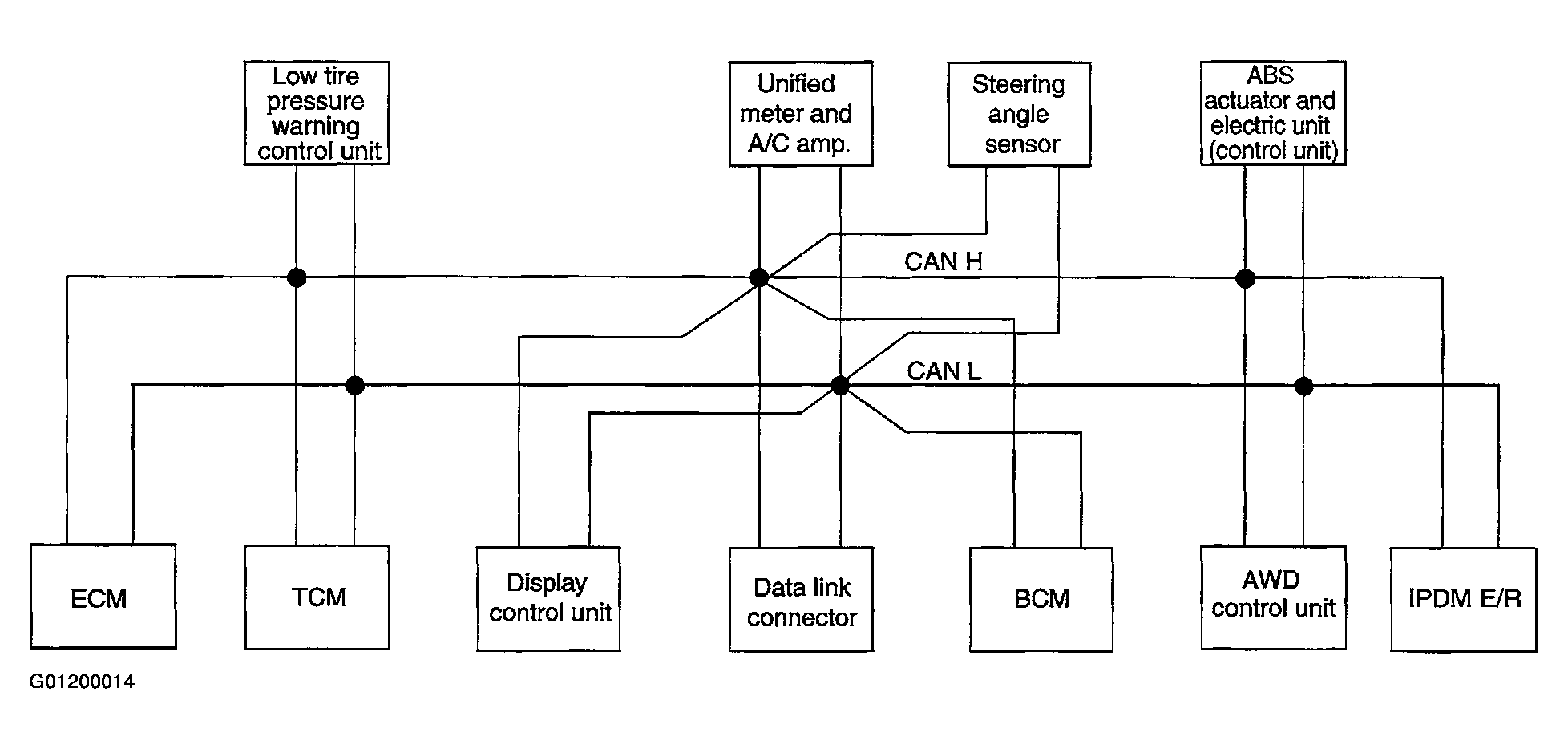

Fig 7: CAN Communication Unit (VDC Models) System Diagram (Type 31)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 32

Fig 8: CAN Communication Unit (VDC Models) System Diagram (Type 32)
Courtesy of NISSAN MOTOR CO., U.S.A.
