Drive Gear Assembly

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

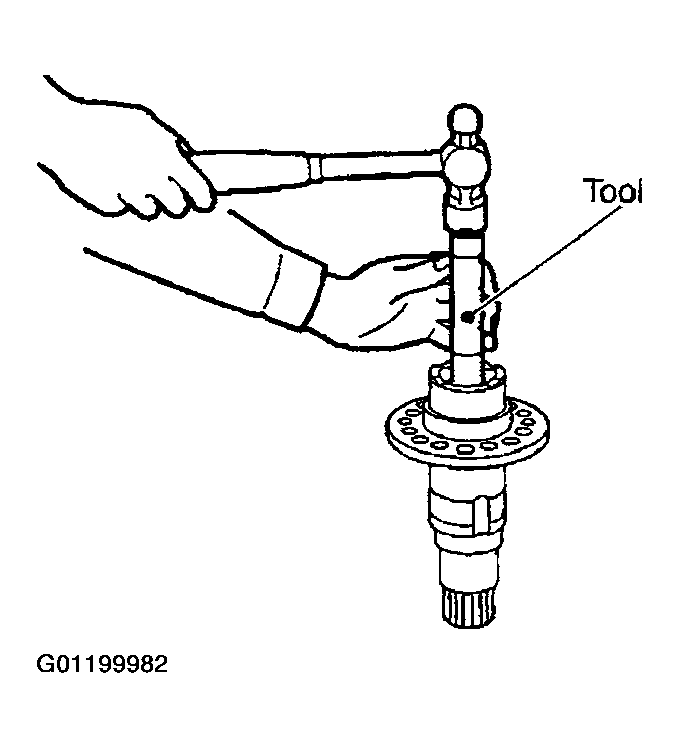

Using a drift, drive the oil seal into the gear ring.

Fig 1: Driving Oil Seal Into Gear Ring Using Drift
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number: ST33230000 (J25805-01)
CAUTION:
- When checking the Total preload torque, measure it without the oil seal, then install the oil seal.
- Discard old oil seals, replace with new ones.
- Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of the oil seal.
- The oil seal back position after the installation shall be 56.5 mm (2.22 in) from the gear ring end.

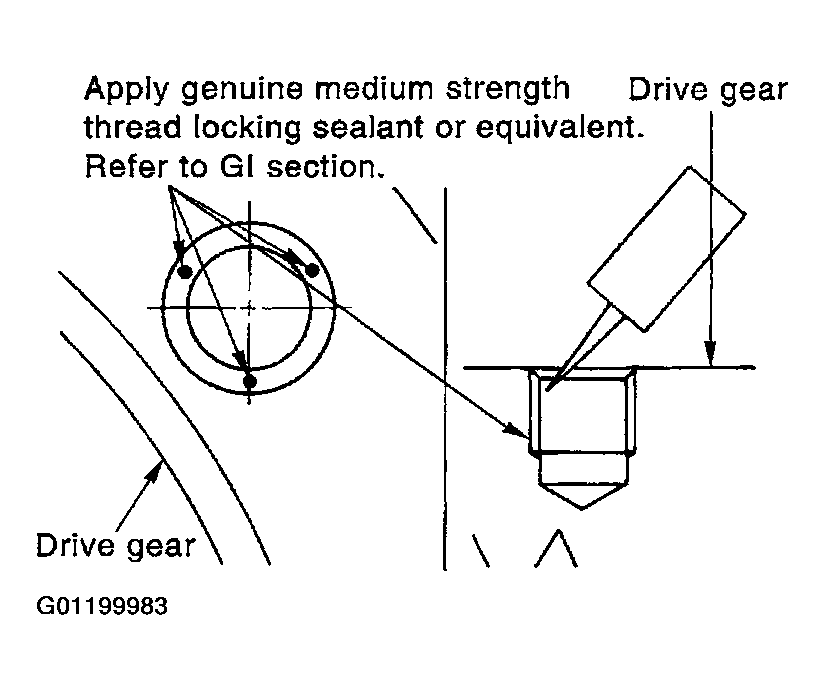

Apply a thread locking adhesive into the thread hole for the drive gear.

Fig 2: Applying Thread Locking Adhesive Into Thread Hole For Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Completely clean and de grease the drive gear back face, thread holes, and drive gear mounting bolts. (Use a gasket remover to remove the thread locking adhesive.)
2. Apply a thread locking adhesive onto the first and second threads under the thread hole chamfering of the drive gear on 3 or more different points.
Install the drive gear to gear ring, and apply anti-corrosive oil onto threads and seats on the mounting bolts, and then tighten to the specified torque.
Tightening torque

First (temporary tightening): 25 - 29 N.m (2.5 - 3.0 kg-m, 18 - 21 ft-lb)

Second (final tightening): 82 - 115 N.m (8.3 - 11.7 kg-m, 60 - 84 ft-lb)
CAUTION:
- Temporary installation before tightening the bolts through to the completion of the tightening should be within 90 seconds.
- If the thread locking adhesive is applied aside, quickly wipe it off.

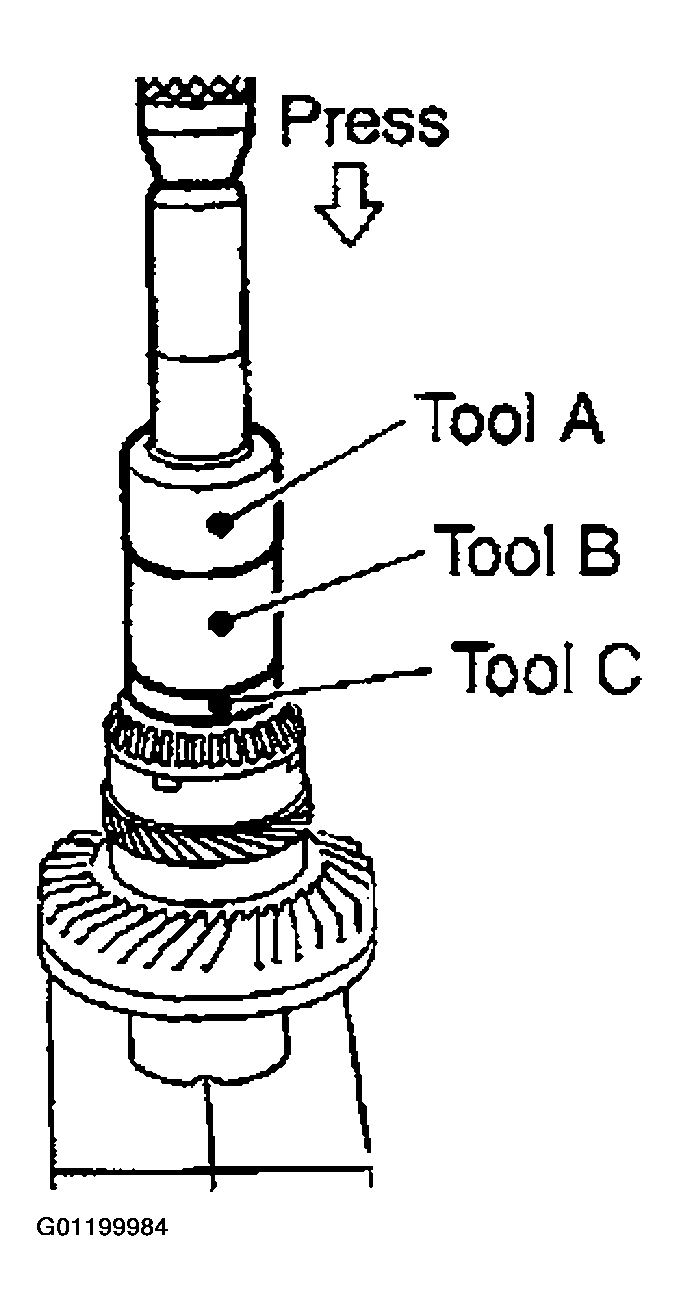

Apply gear oil to gear ring bearing inner race on the transfer case. Using a drift, install gear ring bearing inner race.

Fig 3: Applying Gear Oil To Gear Ring Bearing Inner Race On Transfer Case
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number A: ST30720000 (J25405)

B: ST27863000 ( - )

C: KV40101630 (J35870)

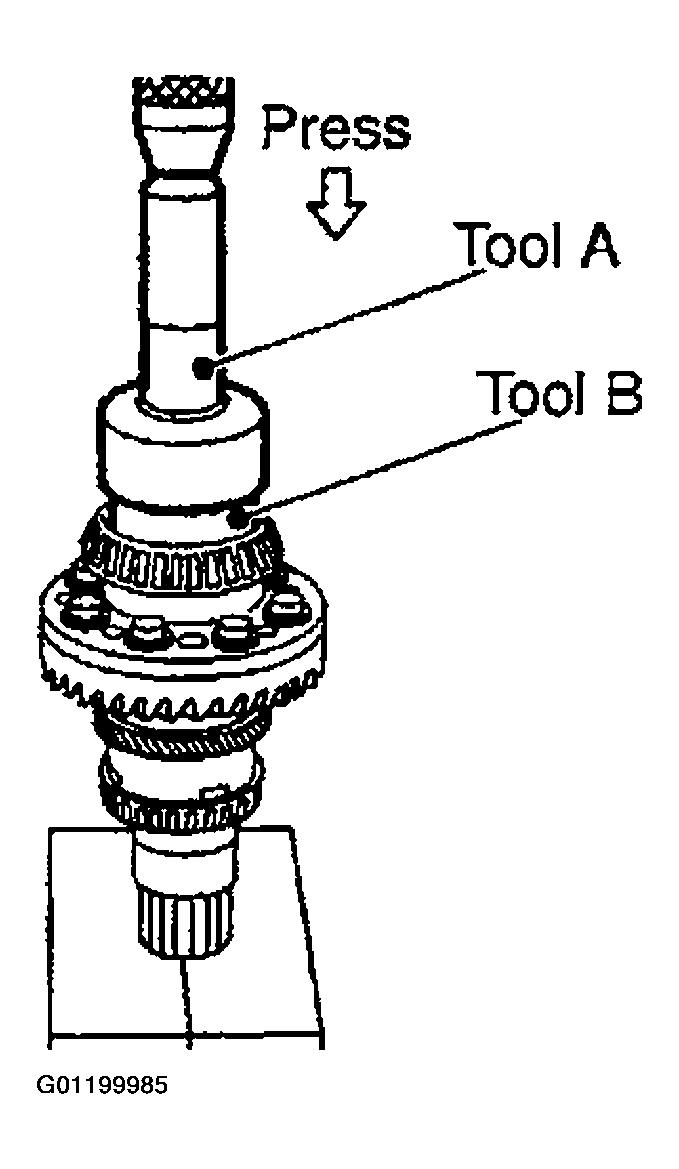

Apply gear oil to gear ring bearing inner race on the adapter case. Using a drift, install gear ring bearing inner race.
Tool number A: ST30720000 (J25405)

B: KV38102510 ( - )
Install the drive gear assembly to the transfer case.
Install the adapter case.
Check backlash, preload torque, tooth contact, and companion flange runout. Refer to PRE-INSPECTION .
CAUTION: Measure the Total preload torque without the oil seal.

Fig 4: Applying Gear Oil To Gear Ring Bearing Inner Race On Adapter Case
Courtesy of NISSAN MOTOR CO., U.S.A.
