Pinion Sleeve Assembly

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Select the pinion sleeve shim. Refer to PINION SLEEVE SHIM .
Using a drift, install the pinion rear bearing outer race.

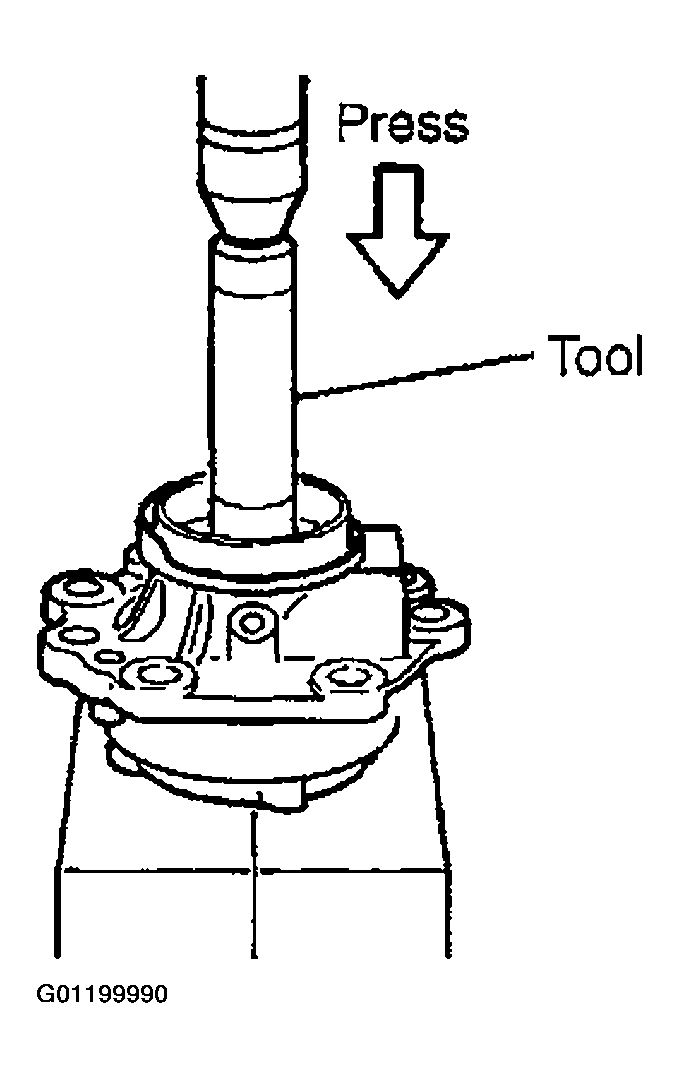

Fig 1: Installing Pinion Rear Bearing Outer Race Using Drift
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number: KV38100300 (J25523)
Using a drift, install the pinion front bearing outer race.

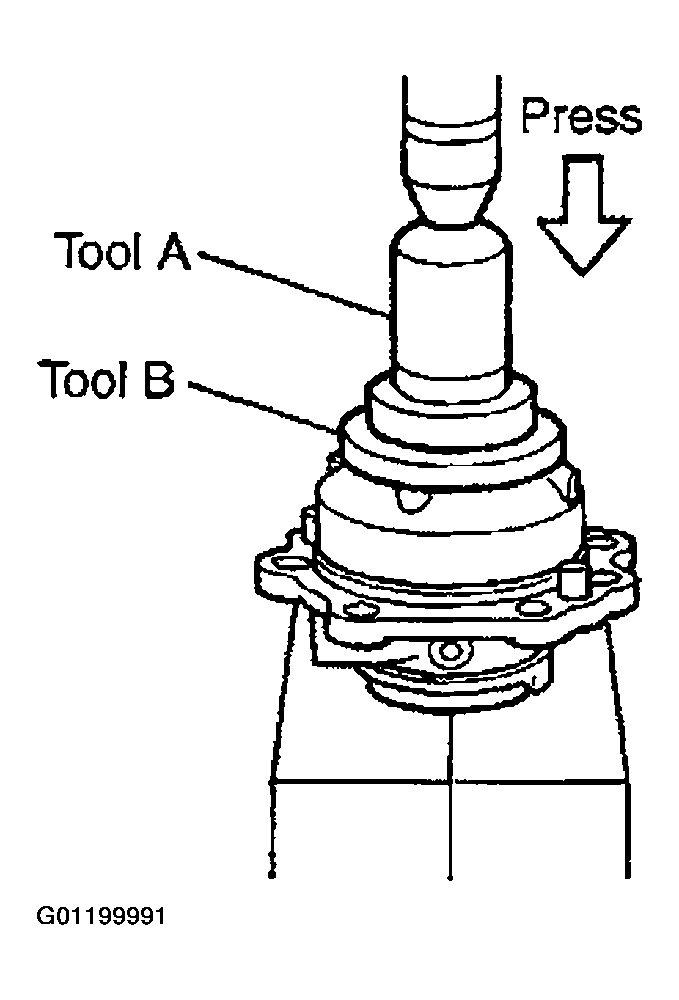

Fig 2: Installing Pinion Front Bearing Outer Race Using Drift
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number A: ST33400001 (J26082)

B: ST30901000 (J26010-01)
Apply gear oil to pinion front bearing inner race and mating position on the drive pinion gear. Using a drift, install pinion front bearing inner race to the drive pinion gear.

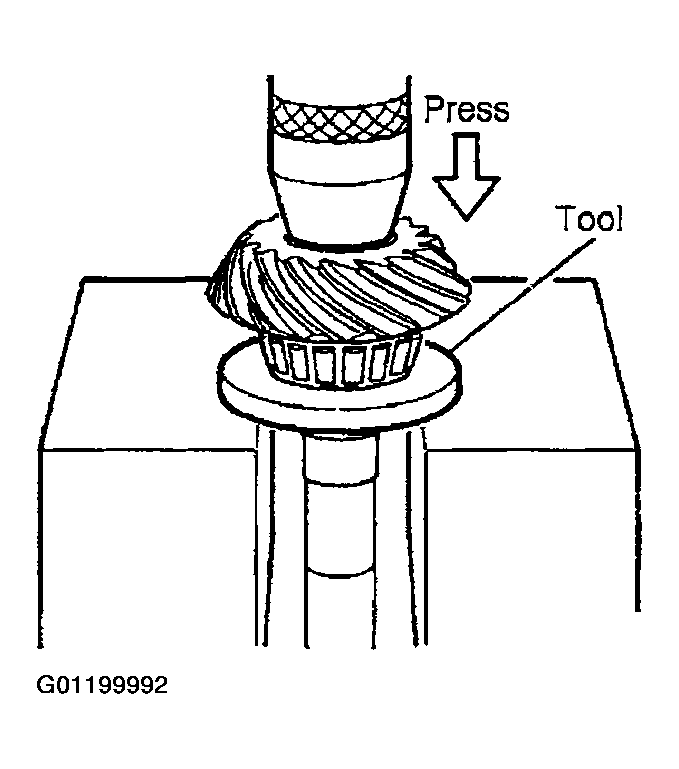

Fig 3: Installing Pinion Front Bearing Inner Race To Drive Pinion Gear Using Drift
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number: ST30901000 (J26010-01)
Install a collapsible spacer to the drive pinion gear.
CAUTION: Do not reuse the collapsible spacer.
Apply gear oil to pinion rear bearing inner race and install it to the pinion sleeve.

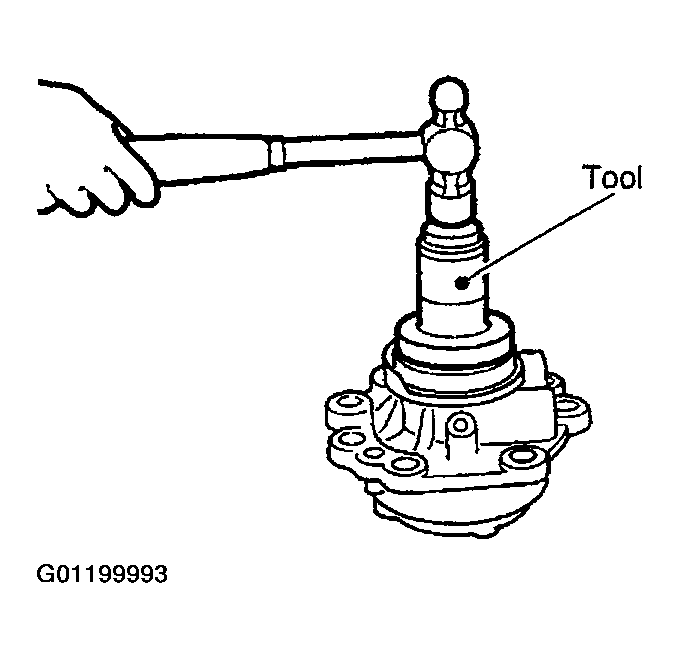

Fig 4: Installing Oil Seal To Pinion Sleeve Using Drift

Courtesy of NISSAN MOTOR CO., U.S.A.

Using a drift, install an oil seal to the pinion sleeve.
Tool number: ST33400001 (J26082)
CAUTION:
- Discard old oil seals, replace with new ones.
- Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of the oil seal.
Using a drift and press in the companion flange.

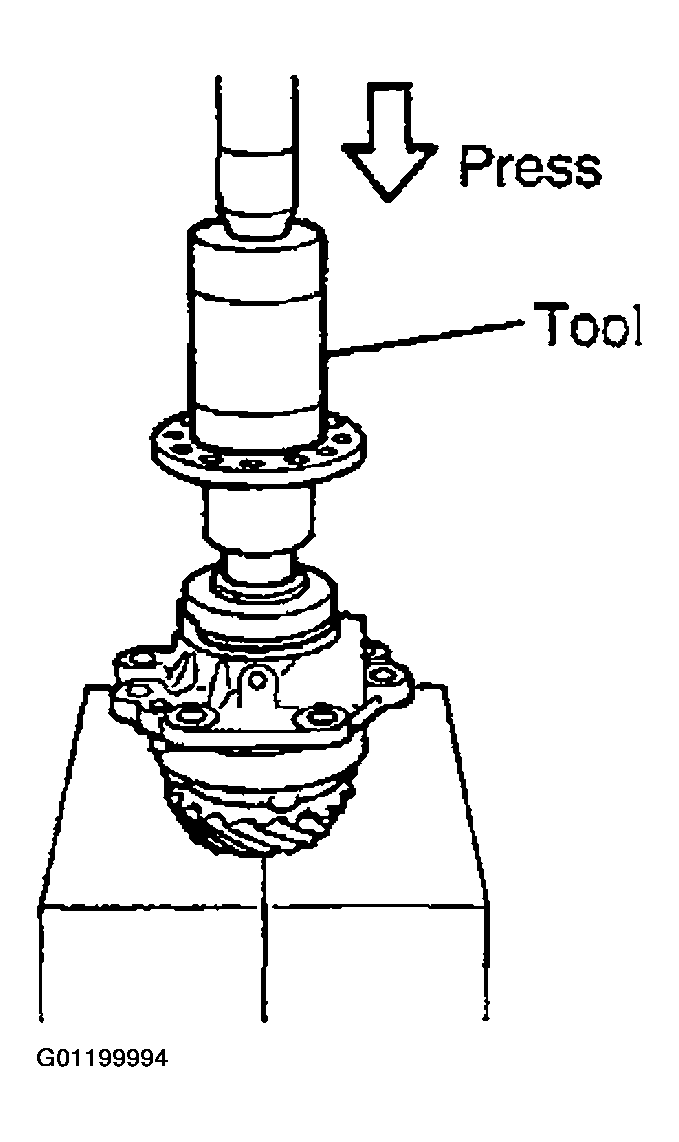

Fig 5: Pressing Companion Flange Using Drift
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number: ST33200000 (J26082)
Apply anti-corrosion oil onto threads and seat of the pinion nut and adjust the pinion nut tightening torque and pinion bearing preload torque (P'1 ).
Pinion nut tightening torque

: 128 - 294 N.m (13 - 30 kg-m, 94 - 216 ft-lb)

Pinion bearing preload torque (P'1 )

: 0.40 - 0.78 N.m (0.04 - 0.08 kg-m, 4 - 6 in-lb)
CAUTION:
- Discard the old pinion nut, replace with new ones.
- Adjust the lower limit of the pinion nut tightening torque first.
- If specified preload torque is exceeded, replace the collapsible spacer and tighten again. Never loosen the pinion nut for further preload torque adjustment.
- After the adjustment, rotate the companion flange back and forth 2 to 3 times to check for unusual noise, rotation malfunction, and other malfunctions.
Apply multi-purpose grease lightly and evenly onto an O-ring, and install it to the pinion sleeve.
CAUTION: Discard the old O-ring, replace with new one.
Assemble the selected pinion sleeve shim.
Install the pinion sleeve assembly, and apply anti-corrosive oil onto threads and seats on the mounting bolts. Tighten to the specified torque.
Tightening torque 25.5 - 33.3 N.m (2.6 - 3.3 kg-m, 19 - 24 ft- lb)
Check backlash, preload torque, tooth contact, and companion flange runout. Refer to PRE-INSPECTION .
The Total preload torque is as follows:

Total preload torque

With all oil seals installed: P'1 + 0.45 - 0.47 N.m (0.045 - 0.048 kg-m, 3.9 - 4.1 in-lb)

Without transfer case oil seal and gear ring oil seal

: P'1 + 0.35 - 0.37 N.m (0.035 - 0.038 kg-m, 3.1 - 3.2 in-lb)
