Adapter Case

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

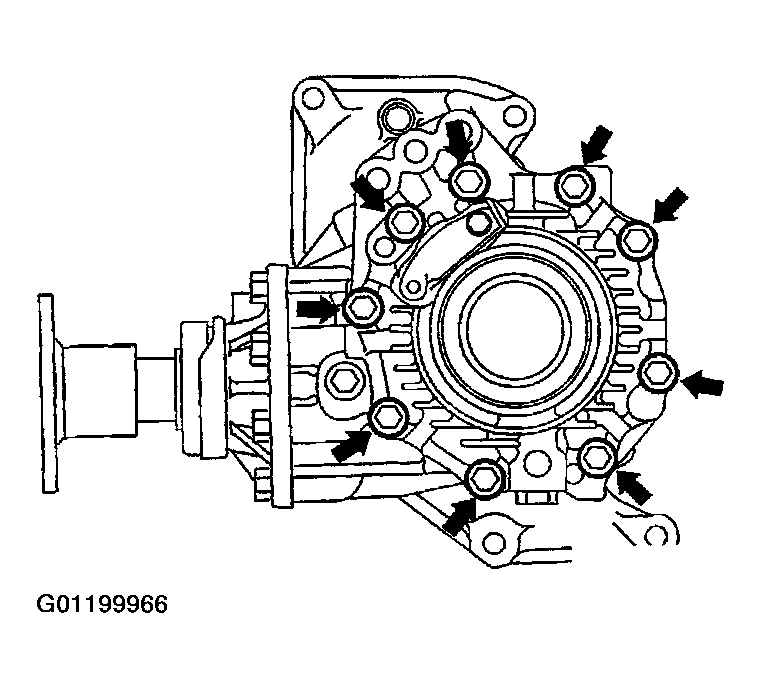

Remove the adapter case mounting bolts.

Fig 1: Removing Adapter Case Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

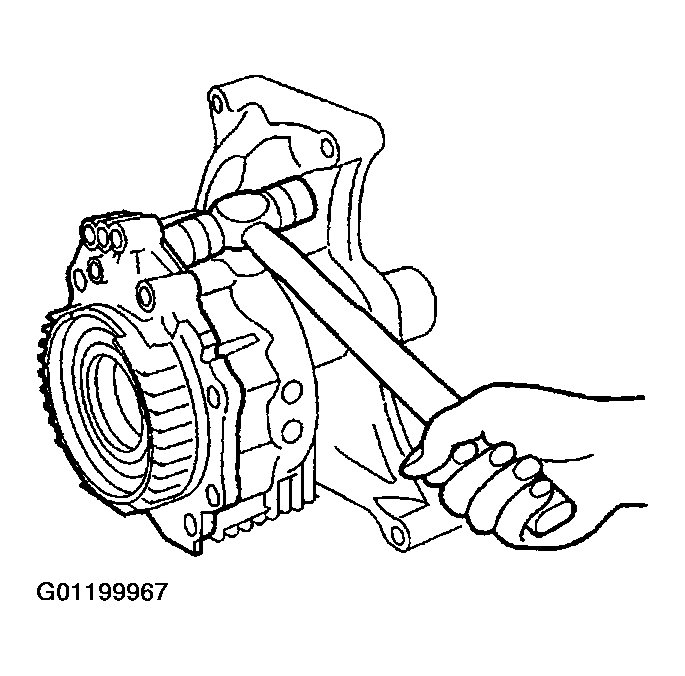

Using a plastic hammer, tap the adapter case to remove.

Fig 2: Taping Adapter Case To Remove Using Plastic Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the O-ring.

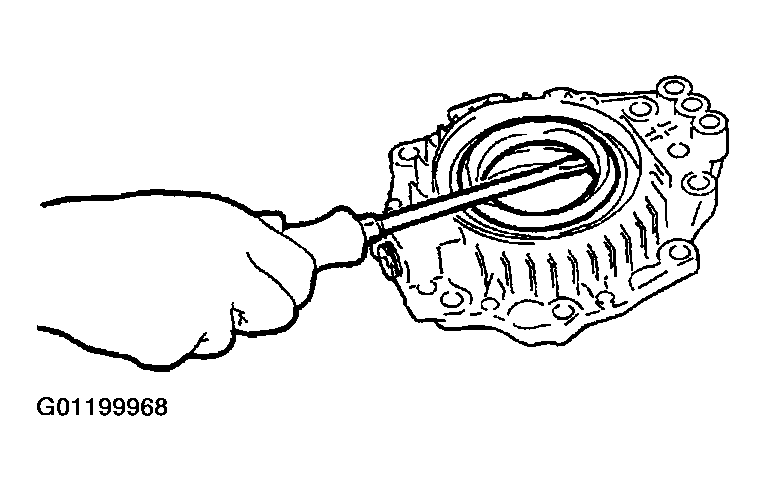

Using a flat-bladed screwdriver, remove the oil seal.

Fig 3: Removing Oil Seal Using Flat-Bladed Screwdriver
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful not to damage the adapter case.

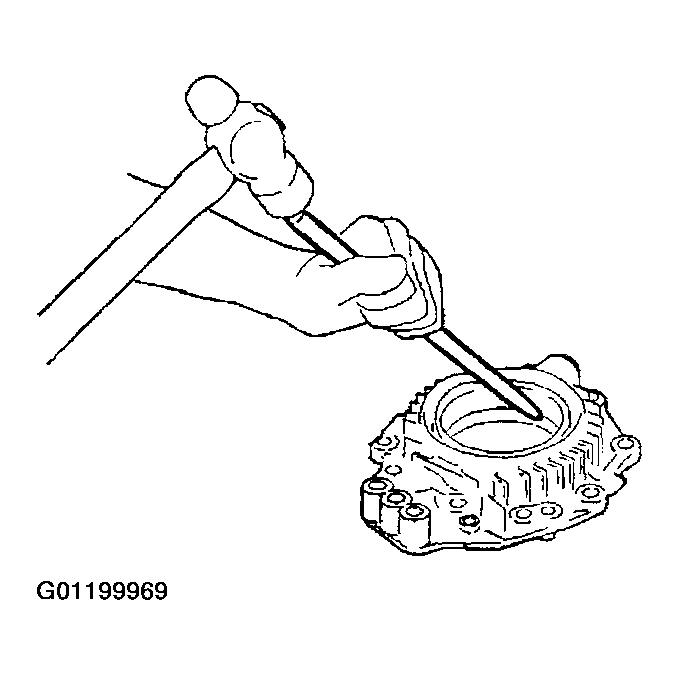

Using a brass rod, tap the adjusting shim from the cutout on the adapter case to remove the adjusting shim and gear ring bearing outer race.

Fig 4: Taping Adjusting Shim From The Cutout On Adapter Case Using Brass Rod
Courtesy of NISSAN MOTOR CO., U.S.A.

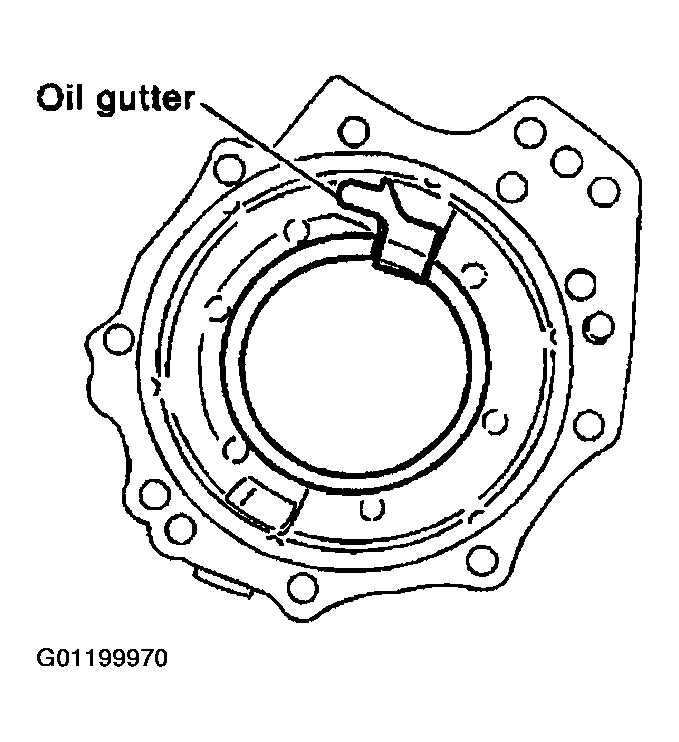

Remove the oil gutter.

Fig 5: Removing Oil Gutter
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the drain plug.
