Transfer Case

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pinion sleeve assembly.
  2. Remove the adapter case.
  3. Remove the drive gear assembly from the transfer case.
  4. Using a flat-bladed screwdriver, remove the oil seal.

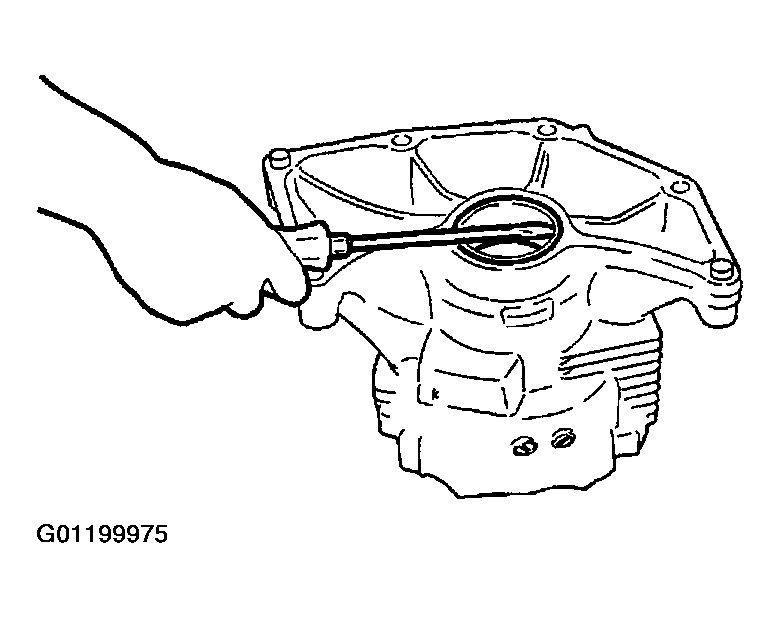

    Fig 1: Removing Oil Seal Using Flat-Bladed Screwdriver
    G01199975Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful not to damage the transfer case.
  5. Remove the oil defense.

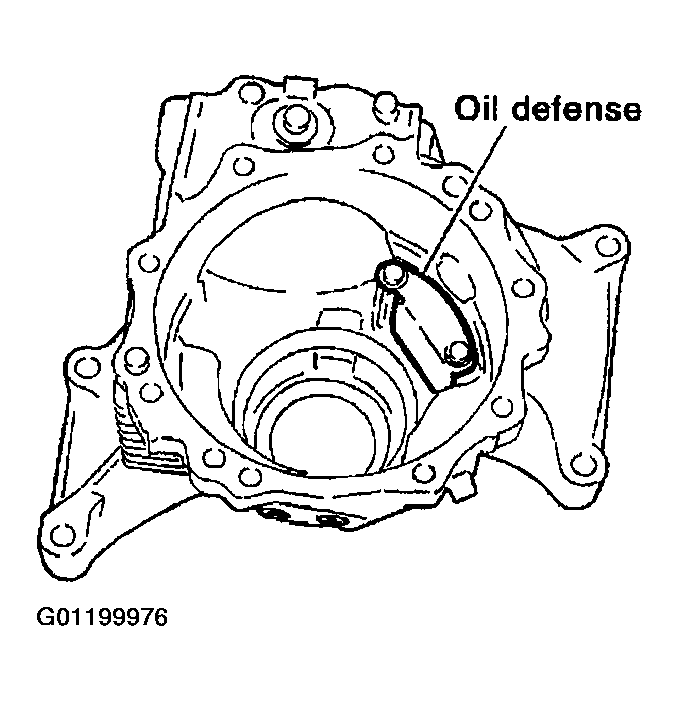

    Fig 2: Removing Oil Defense
    G01199976Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Using a brass rod, tap the adjusting shim evenly from the 2 cutouts on the transfer case to remove the adjusting shim and gear ring bearing outer race.

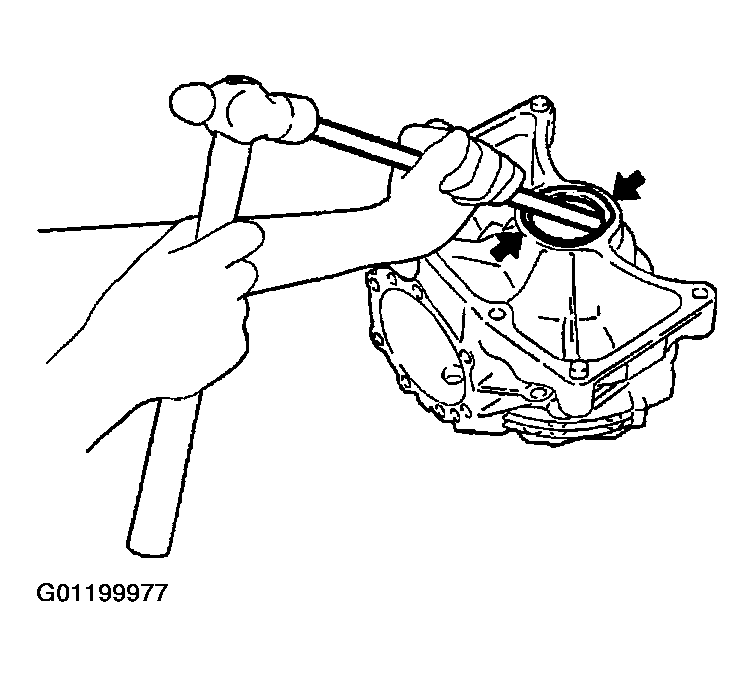

    Fig 3: Taping Adjusting Shim Using Brass Rod
    G01199977Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove the filler plug, and breather tube.
