Removal And Installation From Vehicle: Installation

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

When installing the transfer to the transaxle, install the mounting bolts following the standard below.

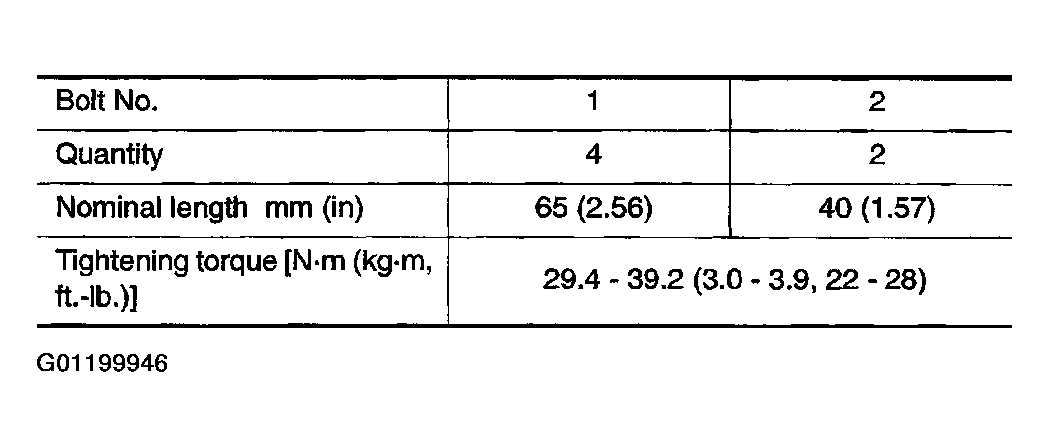

Fig 1: Bolt Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When installing the transfer to the transaxle, be careful not to damage the oil seals.

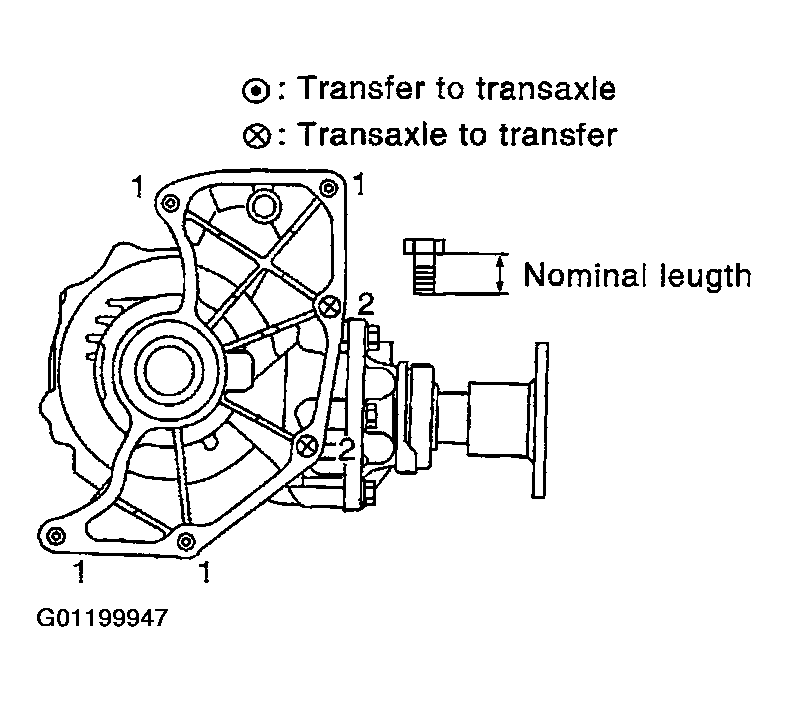

Fig 2: Installing Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

After the installation, check the oil level and for oil leakage. Refer to TRANSFER FLUID .
