Transfer Fluid: Replacement: Draining
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When draining oil, protect exhaust tube flange with cover.
- Run the vehicle to warm up the transfer body sufficiently.

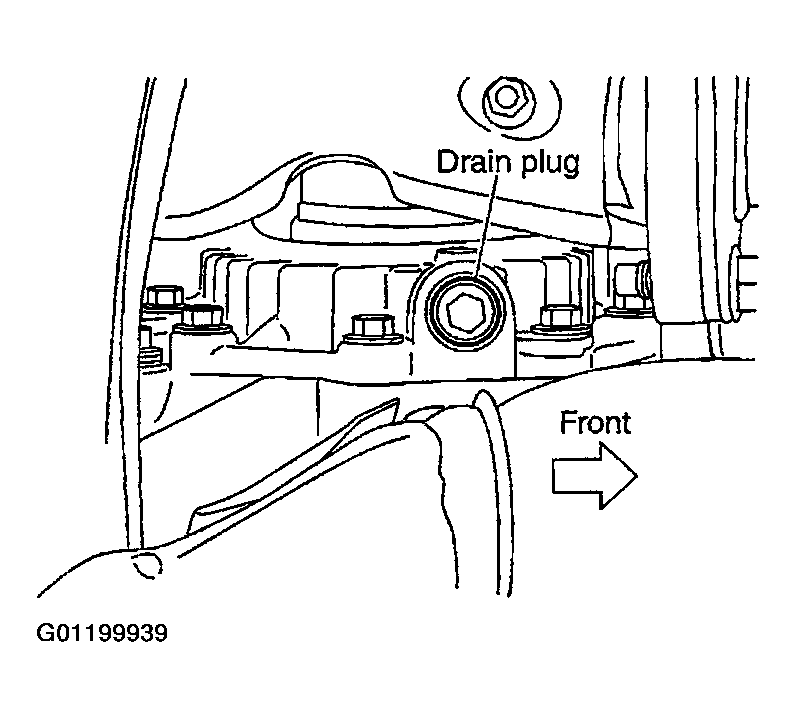

- Stop the engine, and remove the drain plug to drain the transfer oil.
- Apply recommended sealant to drain plug. Position drain plug on transfer and tighten to the specified torque. Refer to COMPONENT PARTS LOCATION .
Drain plug tightening torque
: 9.8 - 19.6 N.m (1.0 - 1.9 kg-m, 87 - 173 in-lb)
