Operating Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

With the engine stopped, change the vacuum to the atmospheric pressure by depressing the brake pedal several times. Then with brake pedal fully depressed, start the engine and when the vacuum pressure reaches the standard, make sure the clearance between the brake pedal and floor panel decreases.

CAUTION: Depressing pedal interval is approximately 5 seconds.

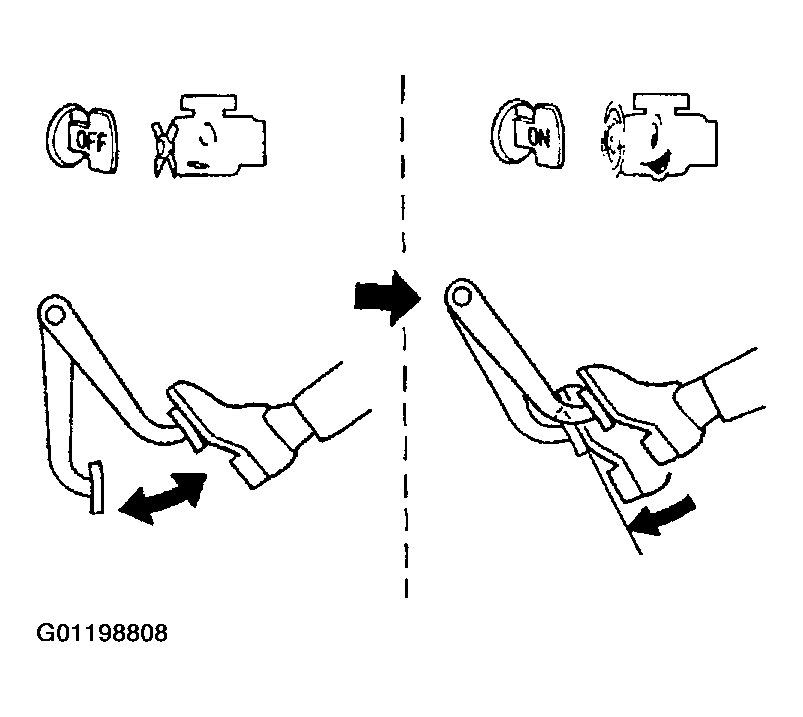

Fig 1: Pressing And Releasing Brake Pedal
G01198808Courtesy of NISSAN MOTOR CO., U.S.A.
