Rear Disc Brake: Components

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

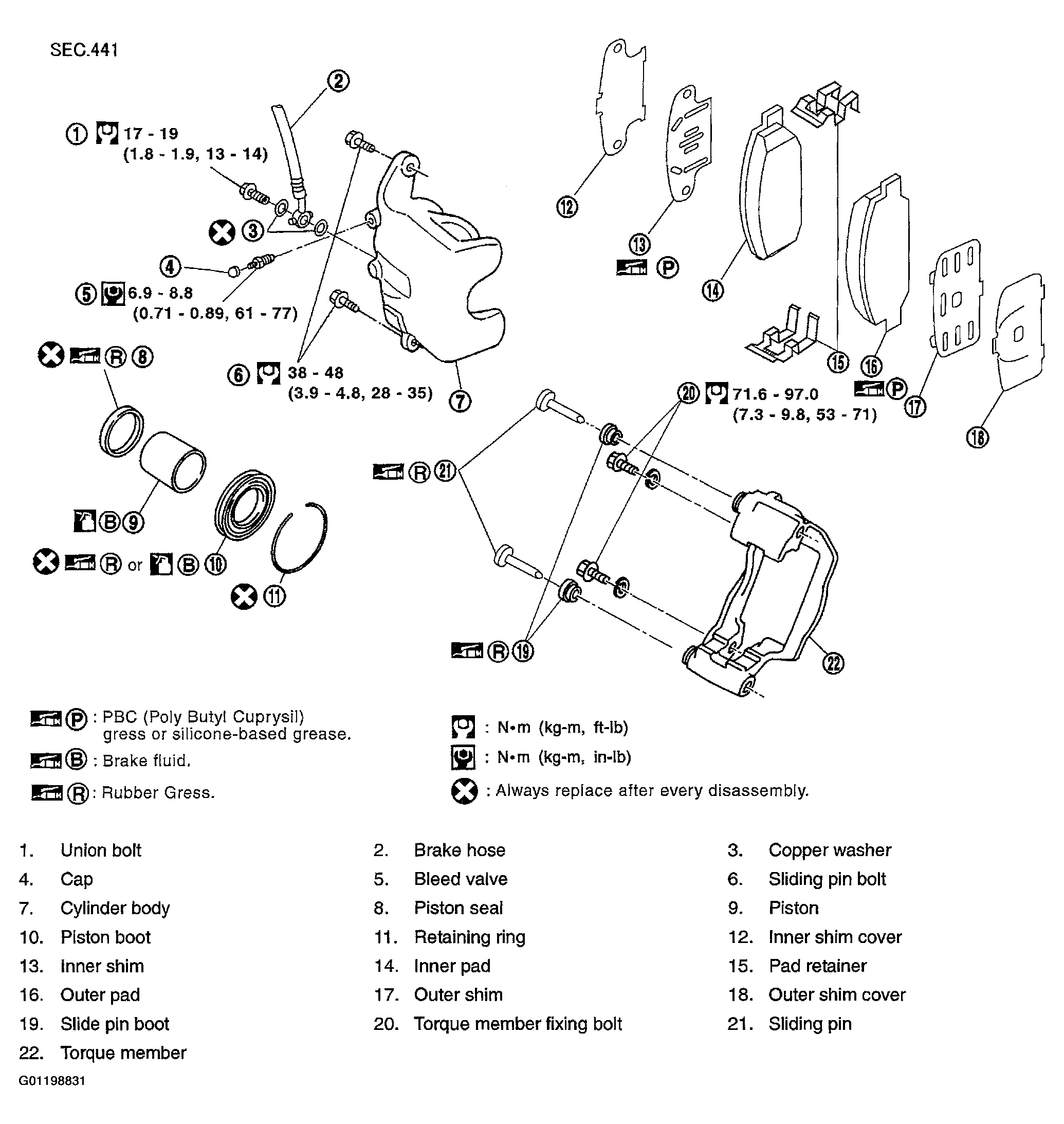

Fig 1: Identifying Rear Disc Brake Components

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize of air borne particles or other materials.

CAUTION:

While removing cylinder body, never depress the brake pedal because the piston will pop out.
It is not necessary to remove bolts on torque member and brake hose except for disassembly or replacement of the caliper assembly. In this case, suspend cylinder body with a wire so as not to stretch brake hose.
Do not damage piston boot.
If any shim is subject to serious corrosion, replace it with a new one.
Always replace shims and shim covers as a set when replacing brake pads.
Burnish the brake contact surface after refinishing or replacing rotors, after replacing pads, or it a soft pedal occurs at very low mileage. Refer to BRAKE BURNISHING PROCEDURE .
