Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Touch ABS.
If ABS is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT
Touch ACTIVE TEST.
Test item selection screen is displayed.
Touch necessary test item.

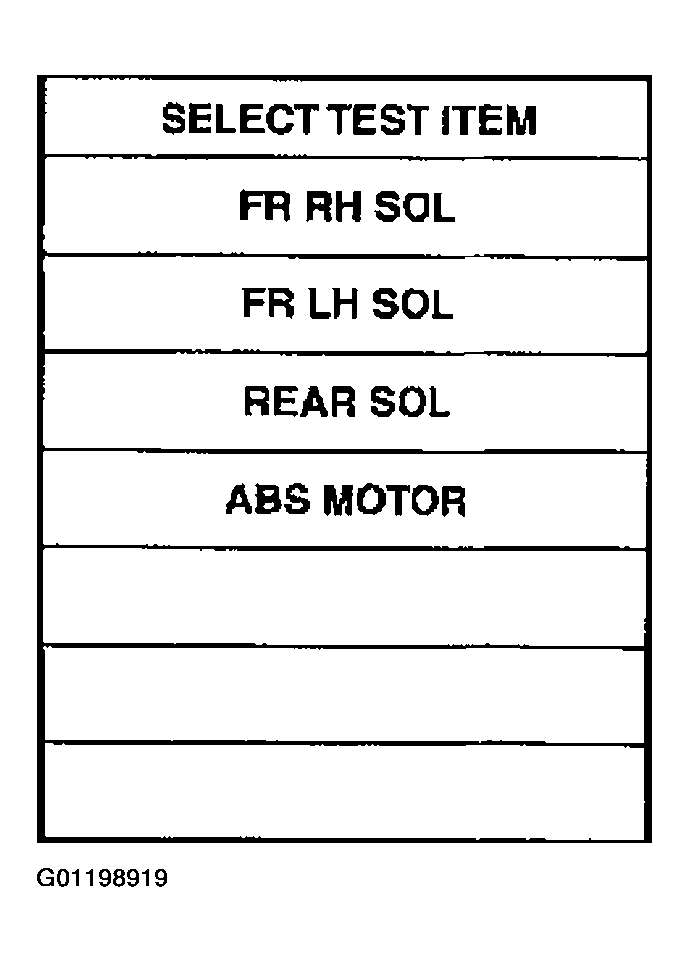

Fig 1: CONSULT-II SELECT TEST ITEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
With SELECT TEST SIGNALS display shown in reverse, touch START.
ACTIVE TEST screen will be displayed, so conduct following test.
