Reference Value From CONSULT-II

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The display in Fig 1 and Fig 2 shows control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short-circuited.

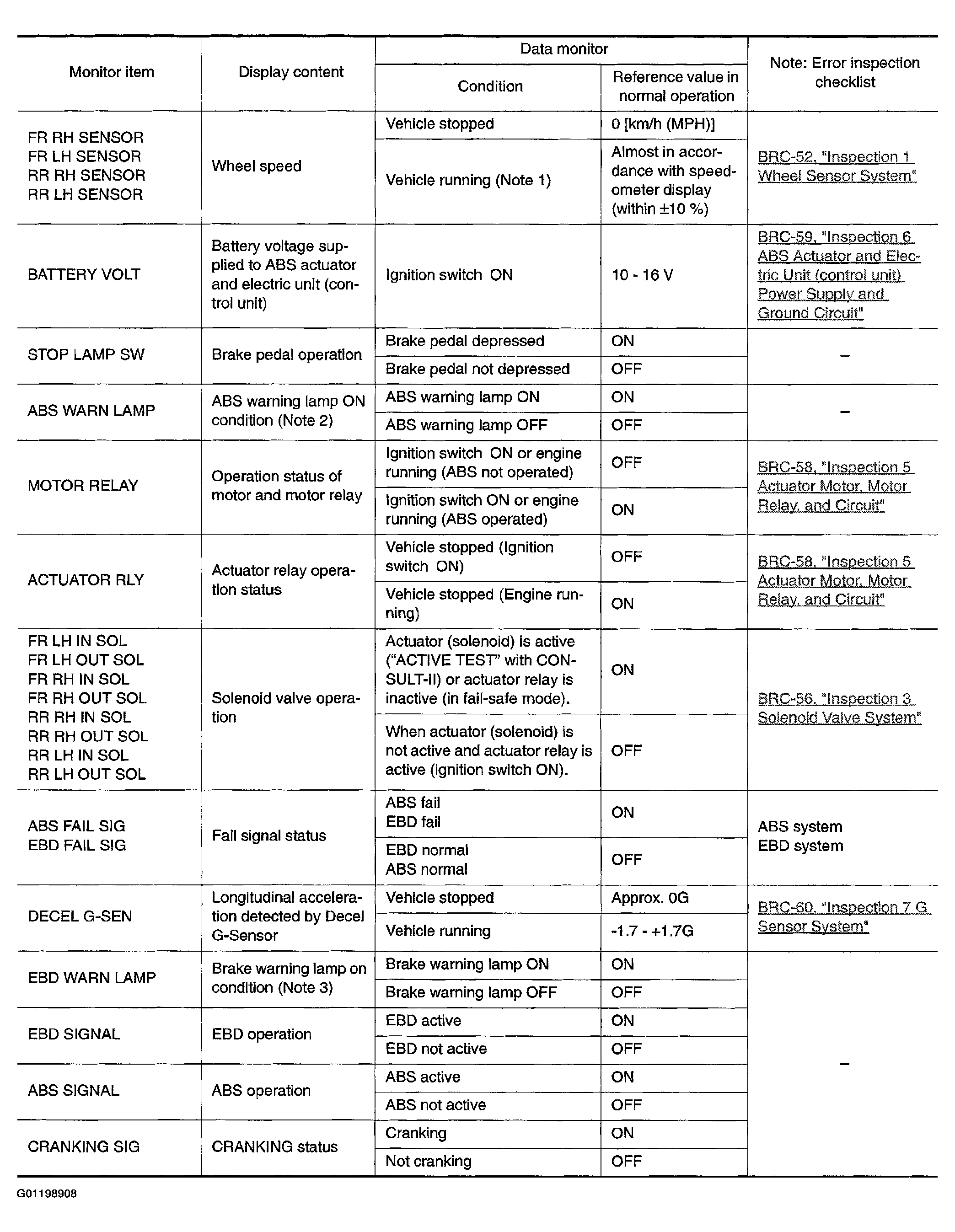

Fig 1: Control Unit Input/Output Signal Standard Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

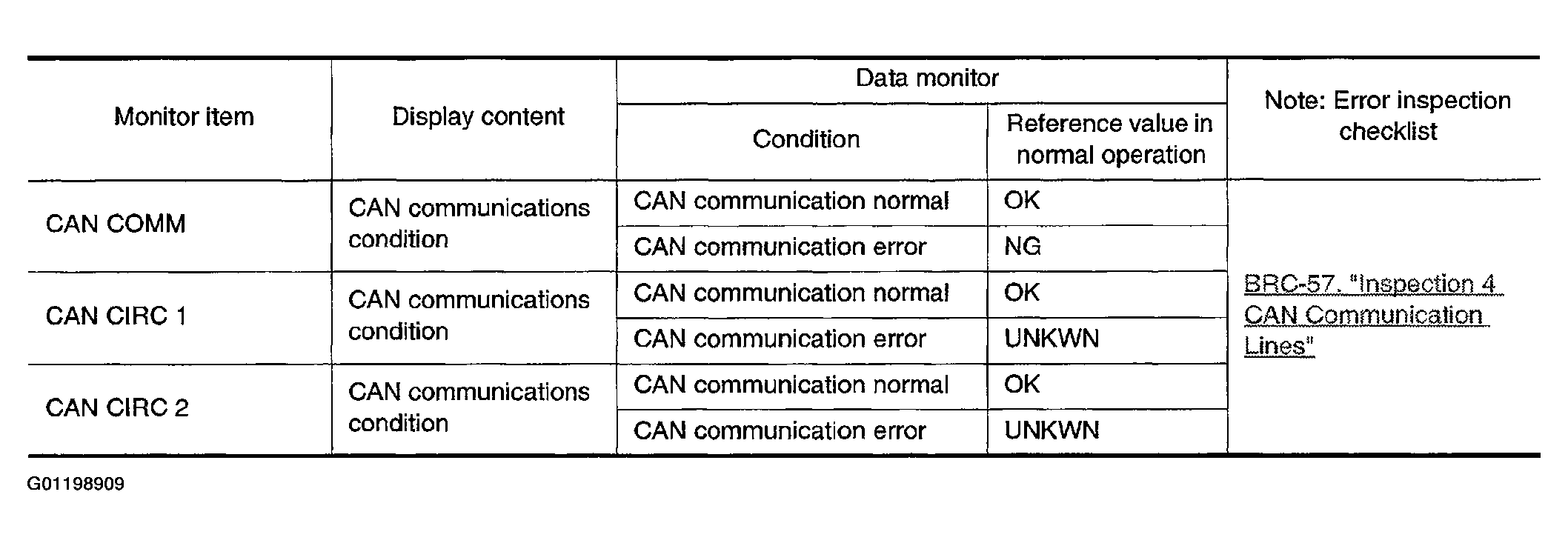

Fig 2: Control Unit Input/Output Signal Standard Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Note 1: Confirm tire pressure is normal.

Note 2: ON/OFF timing of ABS warning lamp

ON: For approximately 2 seconds after ignition switch is turned ON, or when a malfunction is detected.

OFF: Approximately 2 seconds after ignition switch is turned ON (when system is in normal operation).

Note 3: Serves as EBD warning lamp .
