Inspection 7 G Sensor System

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

INSPECTION PROCEDURE

CHECK SELF-DIAGNOSIS RESULT
Check self-diagnosis results.

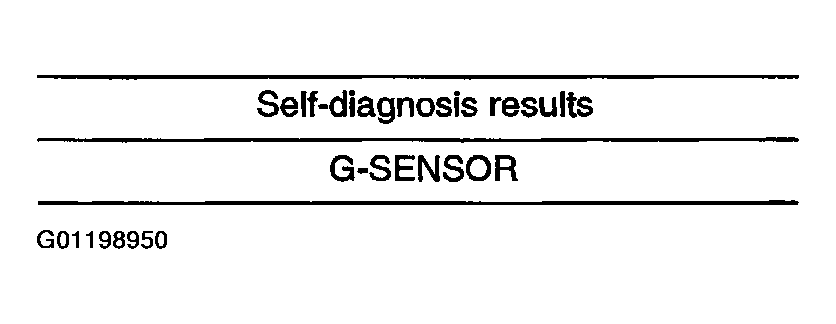

Fig 1: Self-Diagnosis Result Check Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Is Above Displayed In Self-Diagnosis Display Items?
1. YES: GO TO 2.
2. NO: Inspection END
CHECK G SENSOR
Use Data Monitor to check if the G sensor are normal.

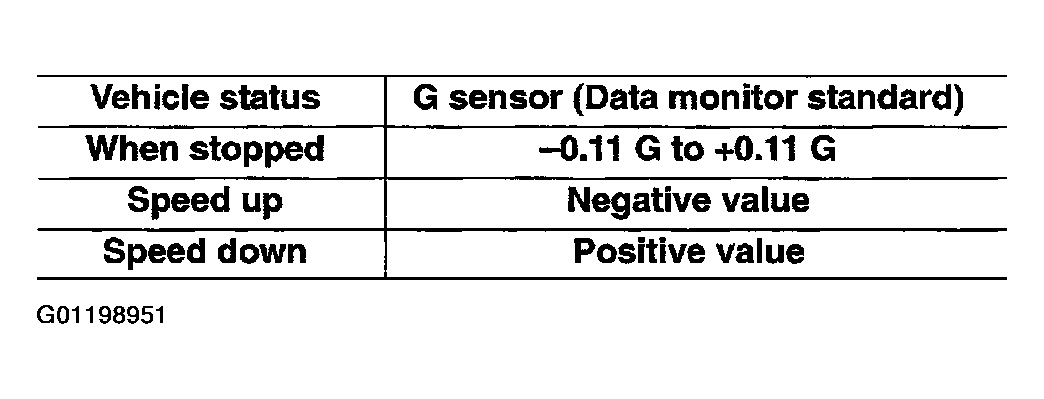

Fig 2: G Sensor Check Table
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Inspects End
2. NG: Replace ABS actuator and electric unit (control unit) and then re-conduct ABS actuator and electric unit (control unit) self-diagnosis.
