Trouble Diagnosis Chart By Symptom

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always check the Work Flow before troubleshooting. Refer to WORK FLOW .
Always check key fob battery before replacing key fob.

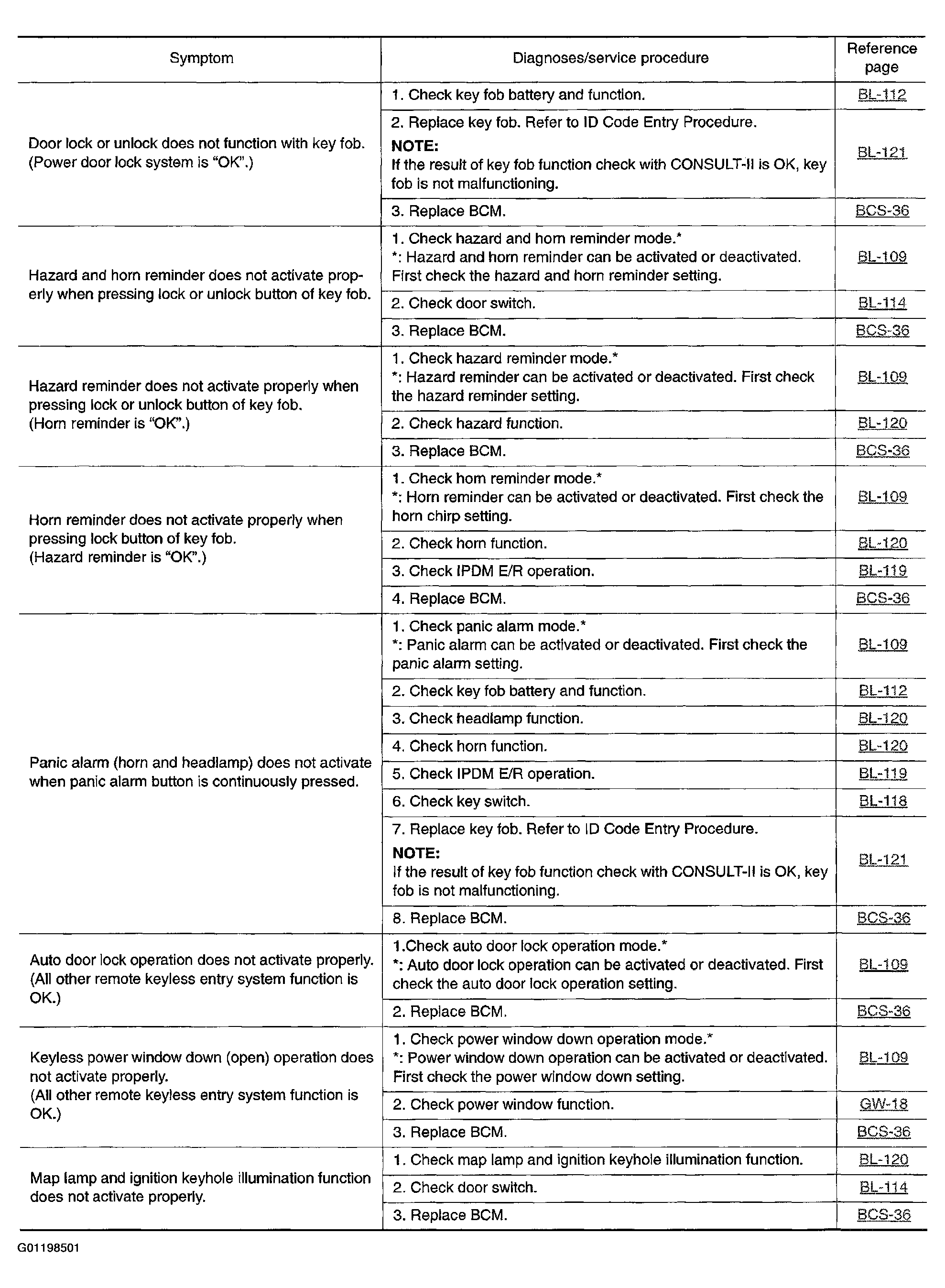

Fig 1: Trouble Diagnosis Chart By Symptom (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

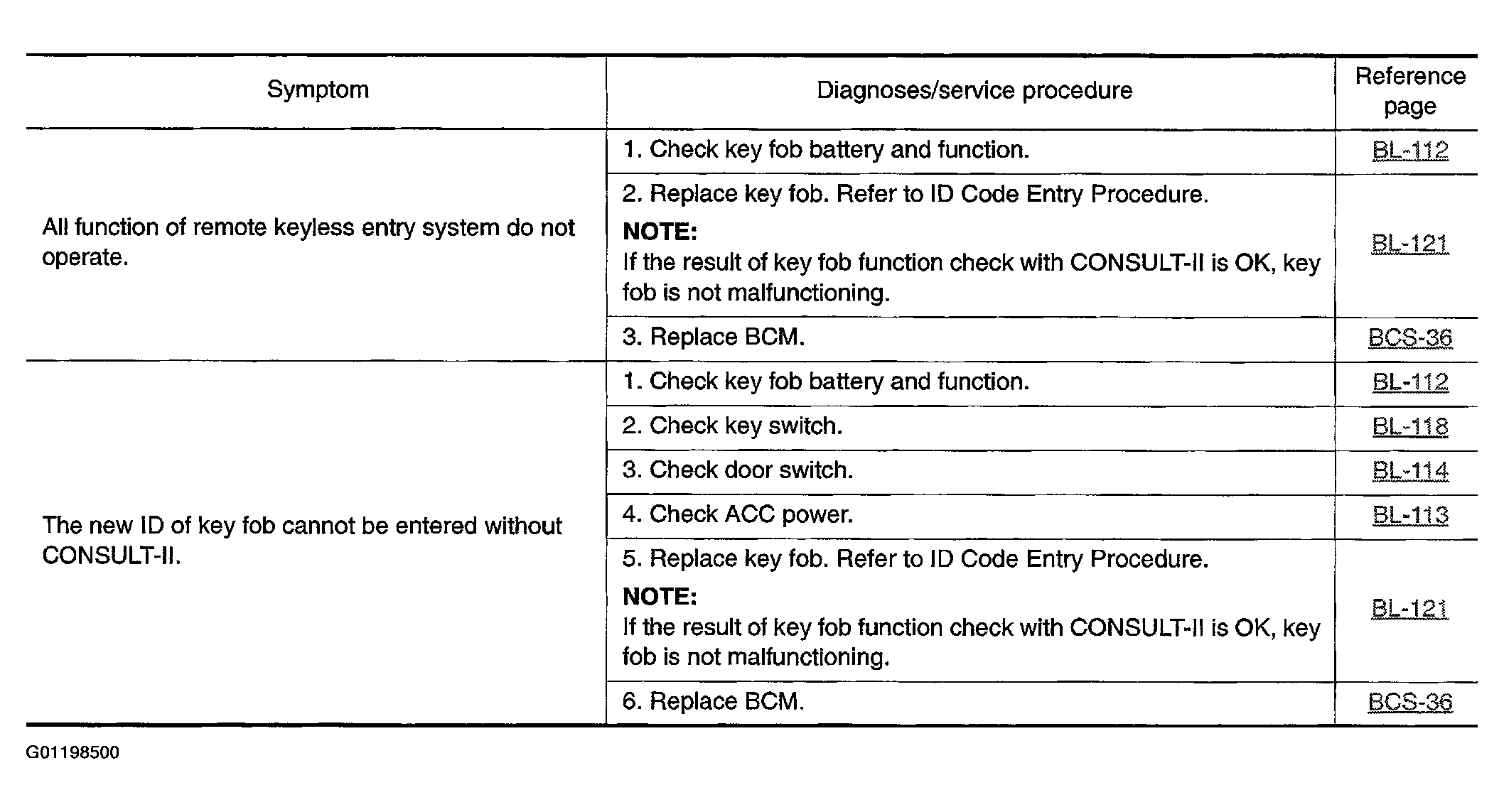

Fig 2: Trouble Diagnosis Chart By Symptom (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
