Center Console

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

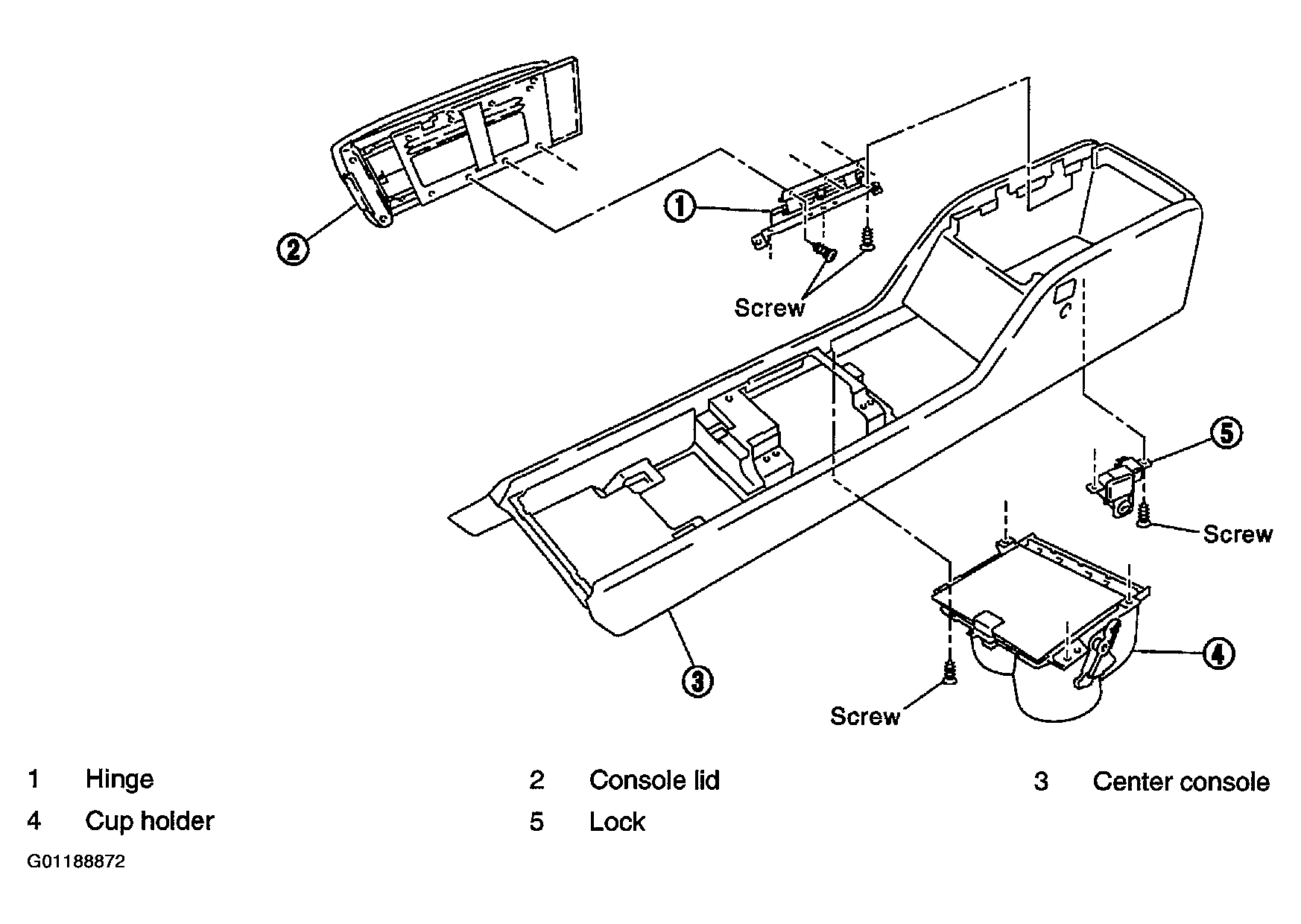

Fig 1: Disassembly And Assembly-Center Console
G01188872Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws fixing cup holder from back side, and then remove it.
  2. Remove screws fixing lock from back side, and then remove it.
  3. Remove screws fixing console lid to remove it.
  4. Remove screws fixing hinge from back side, to remove it.
