Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Instrument driver lower panel. Refer to INSTRUMENT DRIVER LOWER PANEL .
  2. Disconnect BCM connector.
  3. Remove screws (2) to remove BCM.

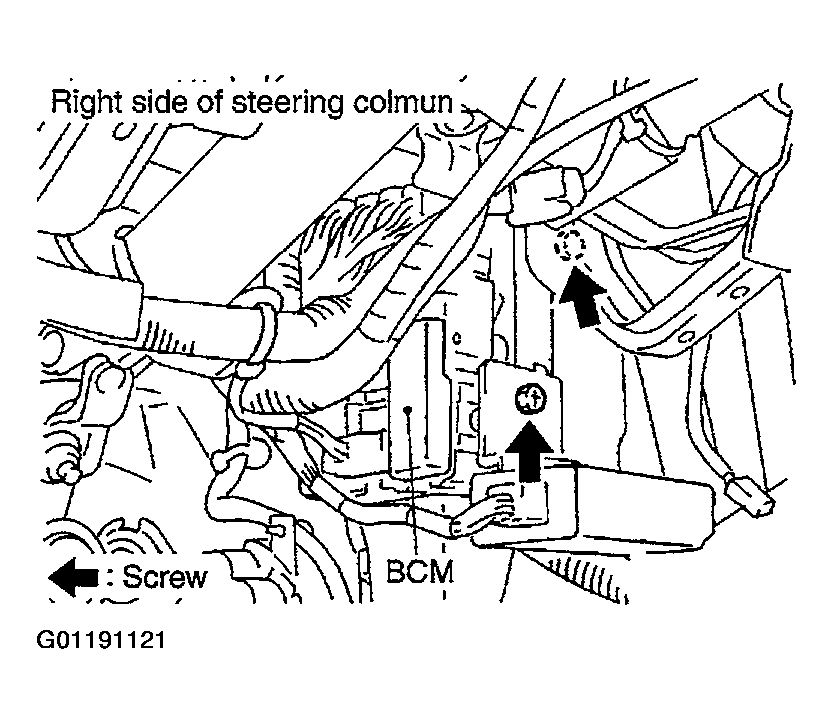

    Fig 1: Locating BCM Screws
    G01191121Courtesy of NISSAN MOTOR CO., U.S.A.
