CAN Communication Unit For AWD Models: Notes

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Go to CAN system, when selecting your car model from the following table.

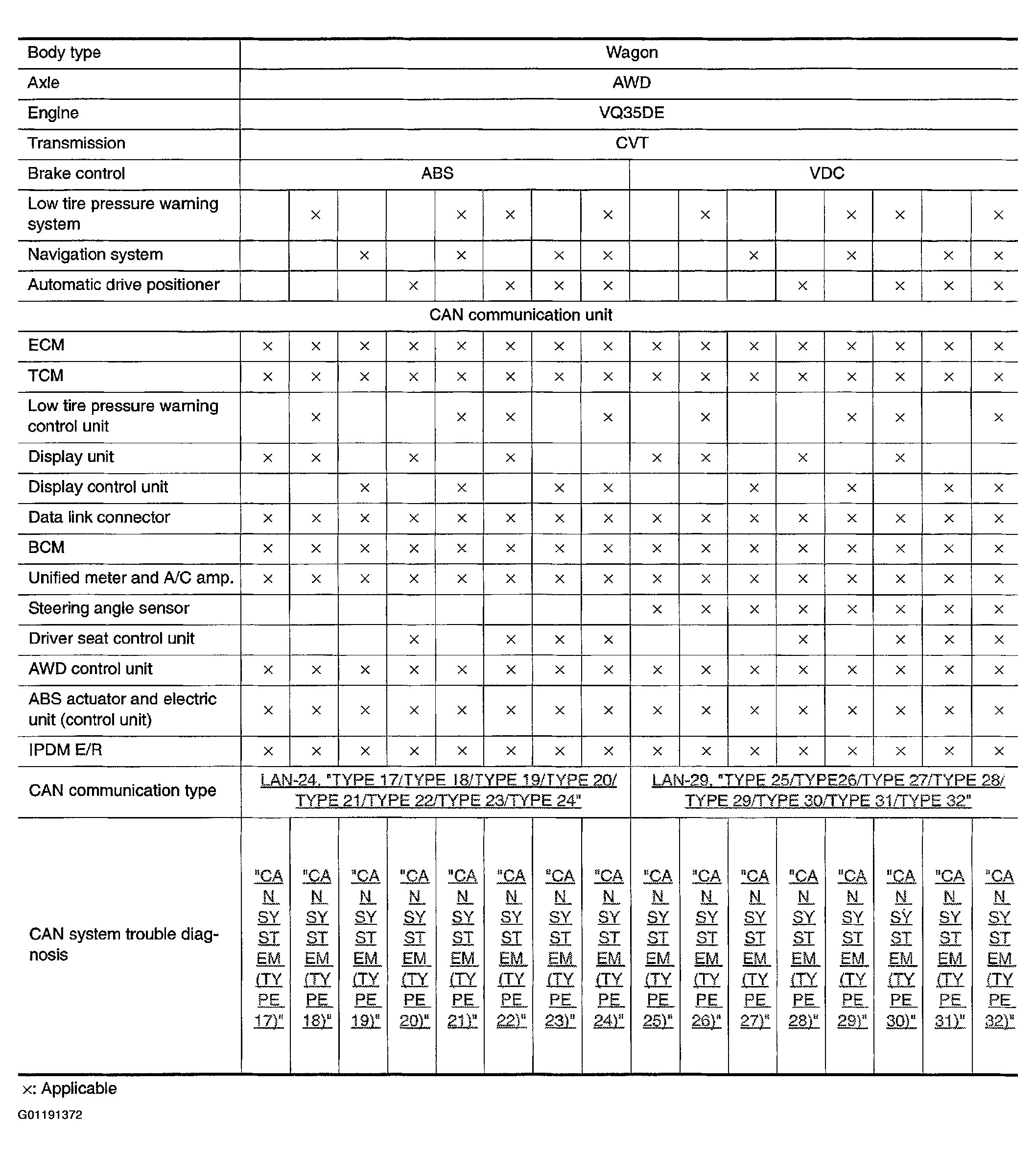

Fig 1: Determining CAN AWD Model System Type
G01191372Courtesy of NISSAN MOTOR CO., U.S.A.
