Can System

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

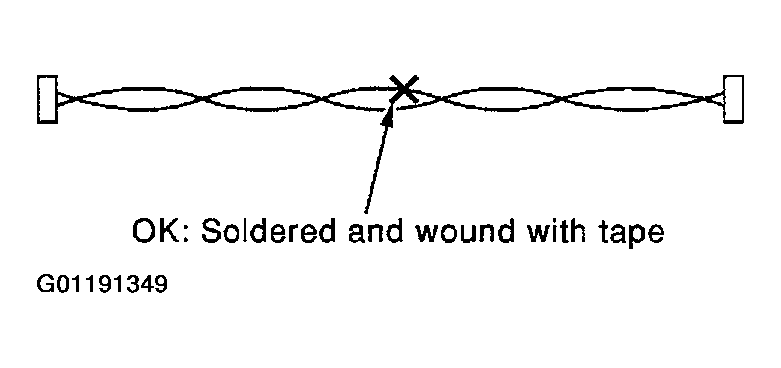

Solder the repaired parts, and wrap with tape. Frays of twisted line must be within 110 mm (4.33 in)

Fig 1: Identifying Usable Solder Repair
Courtesy of NISSAN MOTOR CO., U.S.A.

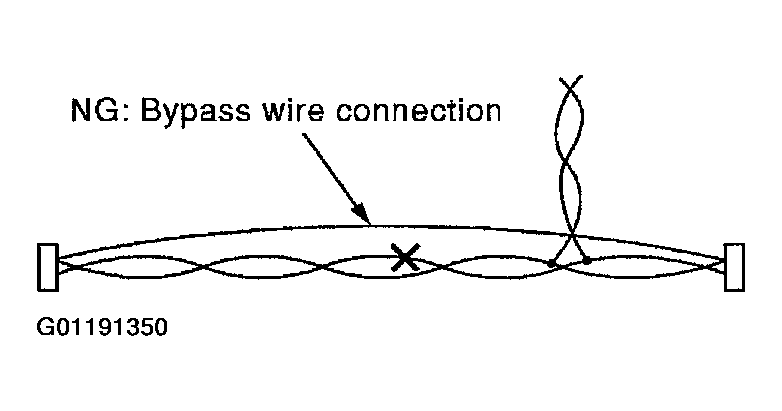

Do not perform bypass wire connections for the repair parts. The spliced wire will become separated and the characteristics of twisted line will be lost.

Fig 2: Identifying Unusable Solder Repairs Causing Attenuation
Courtesy of NISSAN MOTOR CO., U.S.A.
