ECM Replacement Procedures (NTB00-052C)

WARNING: This page is about the Sentra Base, Automatic, which is a different variant/trim than selected.
Publication date: 2004-04-16
Reference number: NTB00-052C
Supersedes refnos: NTB00-052, NTB00-052A, NTB00-052B

ECM REPLACEMENT PROCEDURES

ECM REPLACEMENT PROCEDURES

TECHNICAL SERVICE BULLETIN

Reference Number(s): NTB00-052C, Date of Issue:  April 16, 2004
NISSAN: ALL 2000 and later; 1999 Frontier (D22); 1999 Quest (V41); 1999 Pathfinder (R50) from VIN JN8AR07**XW350101
Classification: EC00-007c
NOTE: THIS BULLETIN HAS BEEN REVISED.
  • The Service Procedures for replacing an ECM on an Applied vehicle were revised.
  • Please use this bulletin NTB00-052c for complete information.
  • Discard all previously distributed copies of NTB00-052.

APPLIED VEHICLE(S):

All 2000 and later

1999 Frontier (D22)

1999 Quest (V41)

1999 Pathfinder (R50) from VIN JN8AR07**XW350101

IF YOU CONFIRM:

The Electronic Control Module (ECM) needs to be replaced on a 2000 MY and later vehicle, or an Applied 1999 MY vehicle (see above).

ACTIONS:

CAUTION: Failure to perform all the work steps in the specified order can cause poor engine running, MIL 'ON', or vehicle emission test rejection.
IMPORTANT: The purpose of "ACTIONS" (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire SERVICE PROCEDURE  as it contains information that is essential to successfully completing this repair.

CLAIMS INFORMATION

If the ECM is replaced WITHOUT re-programming, submit a Primary Failed Part (PP) line using the following claims coding:

CLAIMS INFORMATION (WITHOUT RE-PROGRAMMING)

DESCRIPTION PFP OP CODE SYM DIA FRT
Replace Engine Control Module (1) DE28AA (2) 32 (3)
Combination, if required: Enter VIN into ECM. 2005-UP vehicles ONLY.   DE281A     0.2 hrs
Perform Idle Air Volume Learning procedure (6)   DE96AA (6)     (3)
PLUS, if required
Reprogram NATS Immobilizer key(s)   RL49AA     (3)
PLUS, if required
As per the indicated Section "E" Diagnostic Op Code   (5)     (5)
(1) Use the indicated ECM P/N as the PFP.
(2) Use the customer complaint.
(3) Reference the current Nissan Flat Rate Manual and use the indicated Flat Rate Time for the vehicle being repaired.
() Reference the final CONSULT-II printout and use the indicated ECM P/N as the PFP.
(5) As Indicated from the Main Section "E" diagnostic Op Code.
(6) Includes adequate time to perform the "ACCELERATOR PEDAL & THROTTLE VALVE CLOSED POSITION LEARNING" procedure.

OR

If the ECM is replaced and requires re-programming, submit a Primary Failed Part (PP) line using the following claims coding:

NOTE: You MUST  retain the final CONSULT-II printout with the ECM P/N and Calibration ID number and attach it to the work order as a permanent record.
CLAIMS INFORMATION (WITH RE-PROGRAMMING)s

DESCRIPTION PFP OP CODE SYM DIA FRT
Replace Engine Control Module (4) DE28AA (2) 32 (3)
Reprogram New ECM   DE97AA     (3)
Combination, if required: Enter VIN into ECM. 2005-up vehicles ONLY.   DE281A     0.2 hrs
Perform Idle Air Volume Learning procedure (6)   DE96AA (6)     (3)
PLUS, if required
Reprogram NATS Immobilizer key(s)   RL49AA     (3)
PLUS, if required
As per the indicated Section "E" Diagnostic Op Code   (5)     (5)
() Use the indicated ECM P/N as the PFP.
(2) Use the customer complaint.
(3) Reference the current Nissan Flat Rate Manual and use the indicated Flat Rate Time for the vehicle being repaired.
(4) Reference the final CONSULT-II printout and use the indicated ECM P/N as the PFP.
(5) As Indicated from the Main Section "E" diagnostic Op Code.
(6) Includes adequate time to perform the "ACCELERATOR PEDAL & THROTTLE VALVE CLOSED POSITION LEARNING" procedure.

SERVICE PROCEDURE

Check NATS On The Vehicle

  1. Check to see if the vehicle you're working on has "ECM based" NATS V2.0 or V5.0.
    1. If the vehicle has ECM based NATS V2.0 or V5.0, it will NOT start after you install a service replacement ECM. So you'll have to re-register all ignition keys, including spare keys with CONSULT-II and the purple NATS card. After you do this, proceed with step 2.
      • If you do not know how to re-register the keys, refer to the ESM for the NATS key re-registration procedure.
    2. If the vehicle has "BCM based" NATS (instead of ECM based NATS V2.0 or V5.0), you do NOT have to re-register the ignition or spare keys. Proceed with step 2.

    Check For ECM Data Updates in ASIST

  2. In ASIST, select [CONSULT Utilities] : [ECM/TCM Data]. Then choose Model and Model Year (see Fig 1 ).

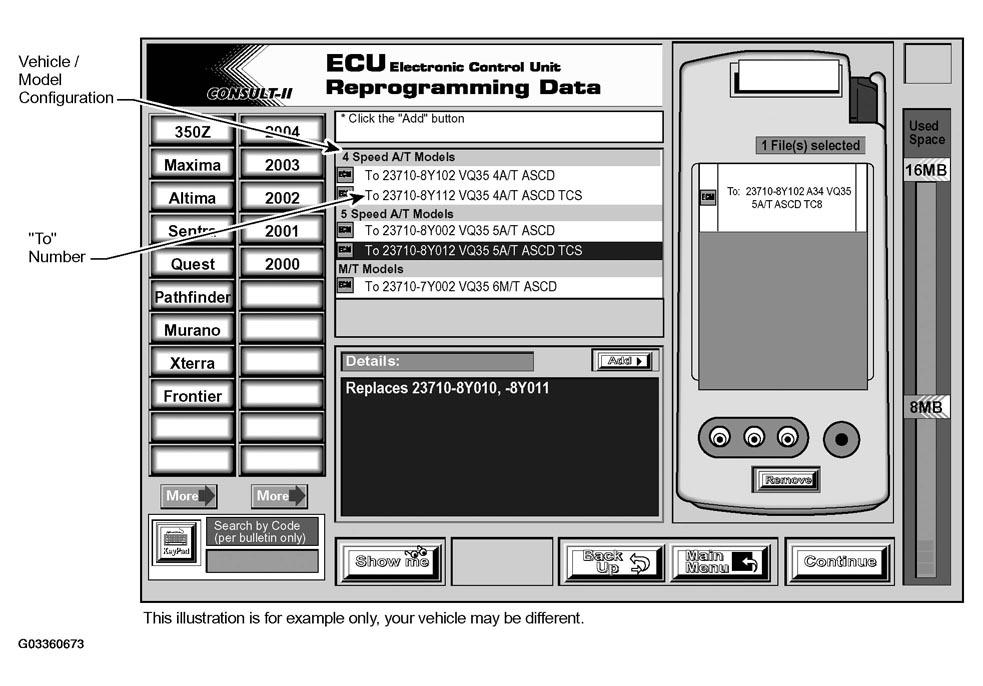

    Fig 1: ECU Reprogramming Data Display
    G03360673
  3. Look for ECM Data Updates (listed by ECM P/N's and vehicle configuration) in the top, center display panel of the ASIST screen (see Fig 1 ).
    1. If there is no updates listed for your vehicle configuration, you do NOT have to reprogram the service replacement ECM. Proceed with step  5 (next page).
    2. If there is updates listed for your vehicle configuration, see if they apply to the service replacement ECM you're going to install. Do this by performing step 4 (next step).
  4. Select the "configuration" on the screen for the vehicle you're working on. Then confirm that your ECM is listed in the "Replaces 23710-XXXXX, -XXXXX, etc" section in the lower, center "Details" panel of the ASIST screen (see Fig 1 ).
    1. If your ECM is listed in the "Details" panel, you must reprogram the ECM with the latest data update. After you do this, proceed with step 5.
      • If you do not know how to reprogram the ECM, click here for the ECM Reprogramming Procedure or refer to Attachment A in the printed copy of this bulletin.
        CAUTION: The 1999-2000 Frontier and 1999-2000 Pathfinder have a gray CONSULT connector AND a white GST connector. Do NOT attempt to perform the ECM Reprogramming procedure with CONSULT-II connected to the gray CONSULT connector. See the appropriate ESM for further details if necessary.
    2. If your ECM is NOT listed in the "Details" panel, you do NOT have to reprogram the ECM. Proceed with step 5.

    Accelerator Pedal & Throttle Valve Closed Position Learning

  5. Perform the Accelerator Pedal & Throttle Valve Closed Position Learning as follows:
    1. Make sure the accelerator pedal is fully released.
    2. Turn the ignition switch "ON" for 2 seconds.
    3. Turn the ignition switch "OFF" for 10 seconds.
    4. Turn the ignition switch "ON" for 2 seconds, then
    5. Turn the ignition switch "OFF" again for 10 seconds (see Fig 2 ).
    6. Proceed with step 6.

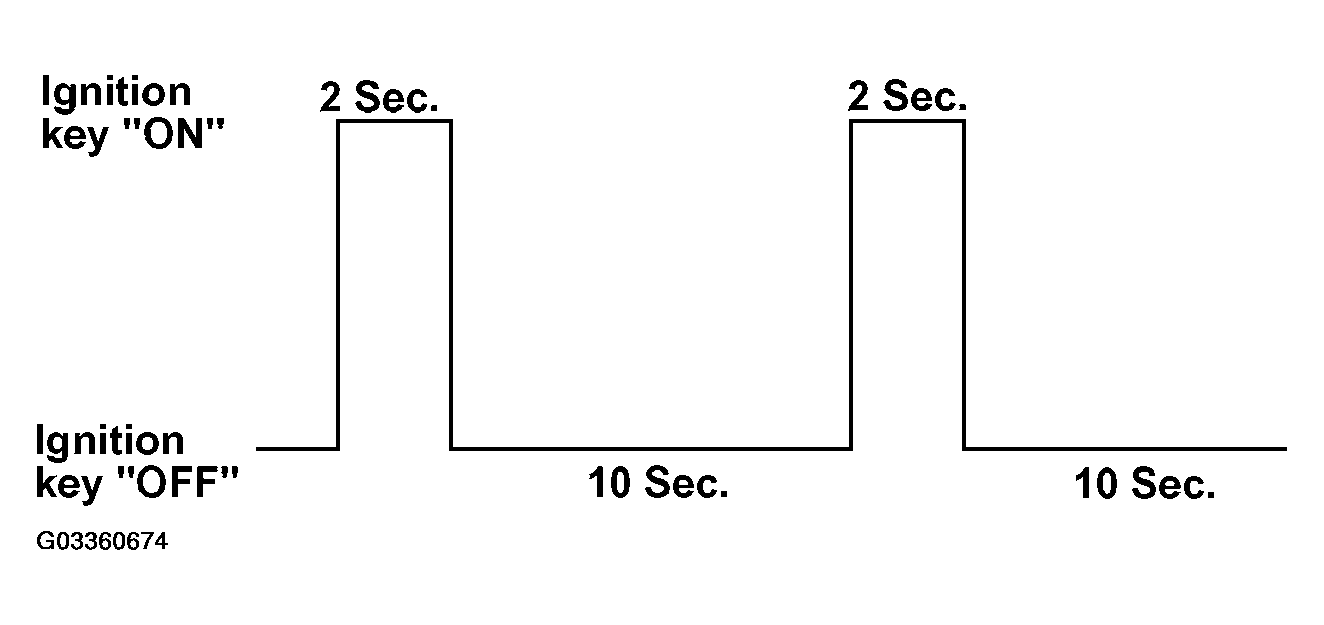

      Fig 2: Accelerator Pedal & Throttle Valve Closed Position Learning Cycle
      G03360674

    Perform Idle Air Volume Learning (IAVL)

    NOTE: Make sure all electrical loads are turned OFF, including A/C, defroster, radio, lights, etc. while performing the following procedures. Also, make sure the engine cooling fans are NOT operating during the following procedures.
  6. Perform the Idle Air Volume Learning procedure as follows:
    1. Connect CONSULT-II to the vehicle.
    2. Warm up engine and transmission to operating temperature.
    3. In the CONSULT WORK SUPPORT  mode, select IDLE AIR VOL LEARN.  See Fig 3 .
      NOTE:
      • If IDLE AIR VOL LEARN is not shown as a SELECT WORK ITEM on CONSULT, the vehicle does not need the procedure.
      • In this case only, this bulletin is complete, no further action is needed.

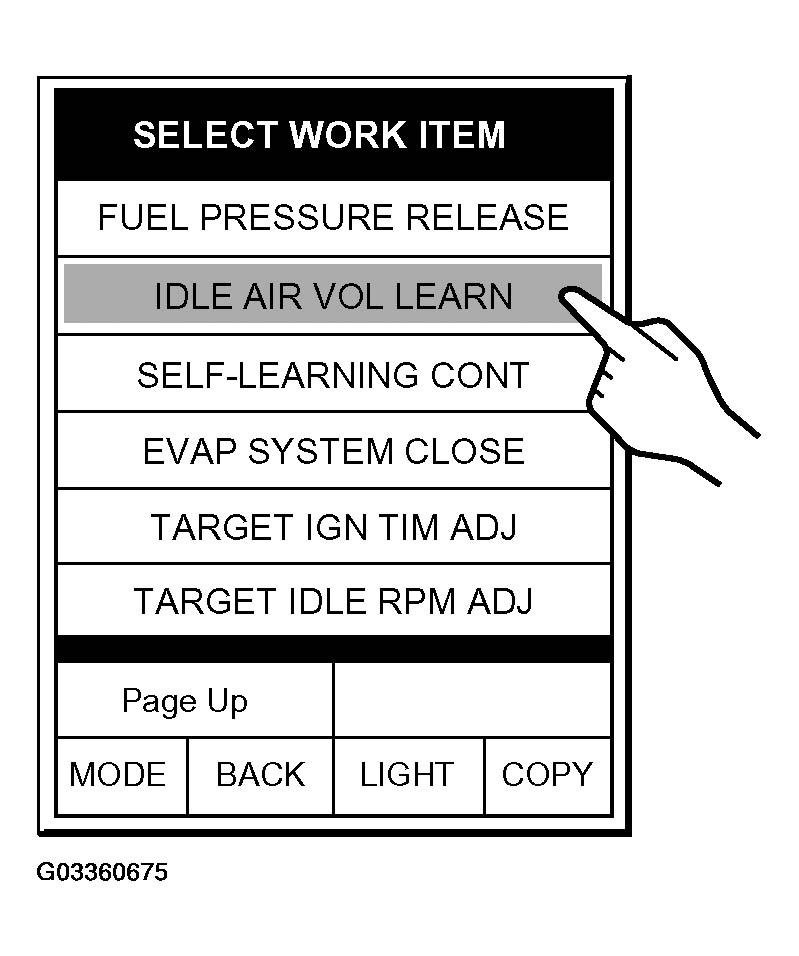

        Fig 3: Selecting "Idle Air Vol Learn" On Consult
        G03360675
    4. Press START  on the "IDLE AIR VOL LEARN" screen. See Fig 4 .

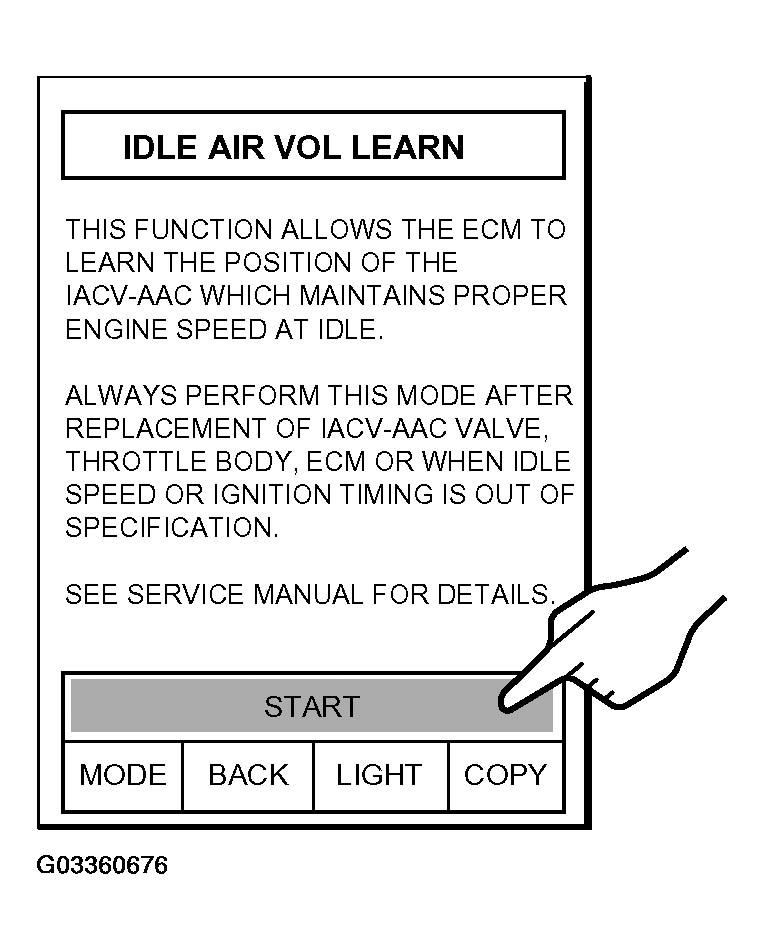

      Fig 4: Pressing Start On "Idle Air Vol Learn" Screen
      G03360676
    5. Press [START]  on the "WORK SUPPORT" screen to begin the Idle Air Volume Learning (IAVL) procedure. See Fig 5 .
      • The IAVL procedure will take several minutes to complete.
      • CONSULT will display "Please Wait" in the center of the screen while the IAVL procedure is in process. See Fig 6 .

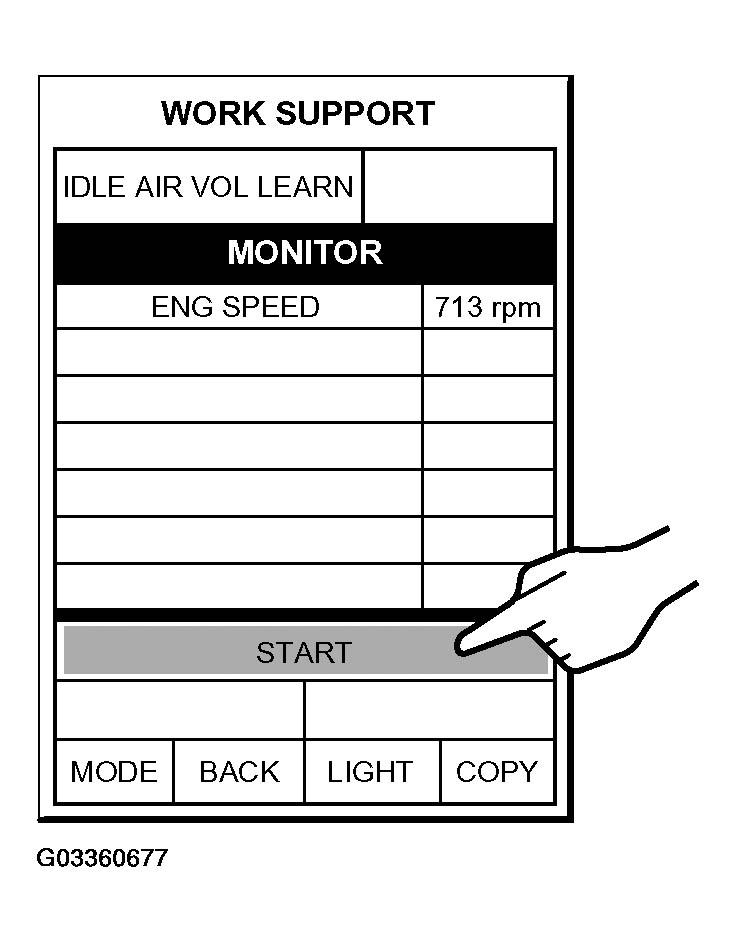

        Fig 5: Pressing [Start] On "Work Support" Screen
        G03360677
      • CONSULT will display "CMPLT" in the top right corner of the screen when the IAVL procedure is finished. See Fig 7 .
    6. Once the IAVL procedure is finished, proceed with step 7.

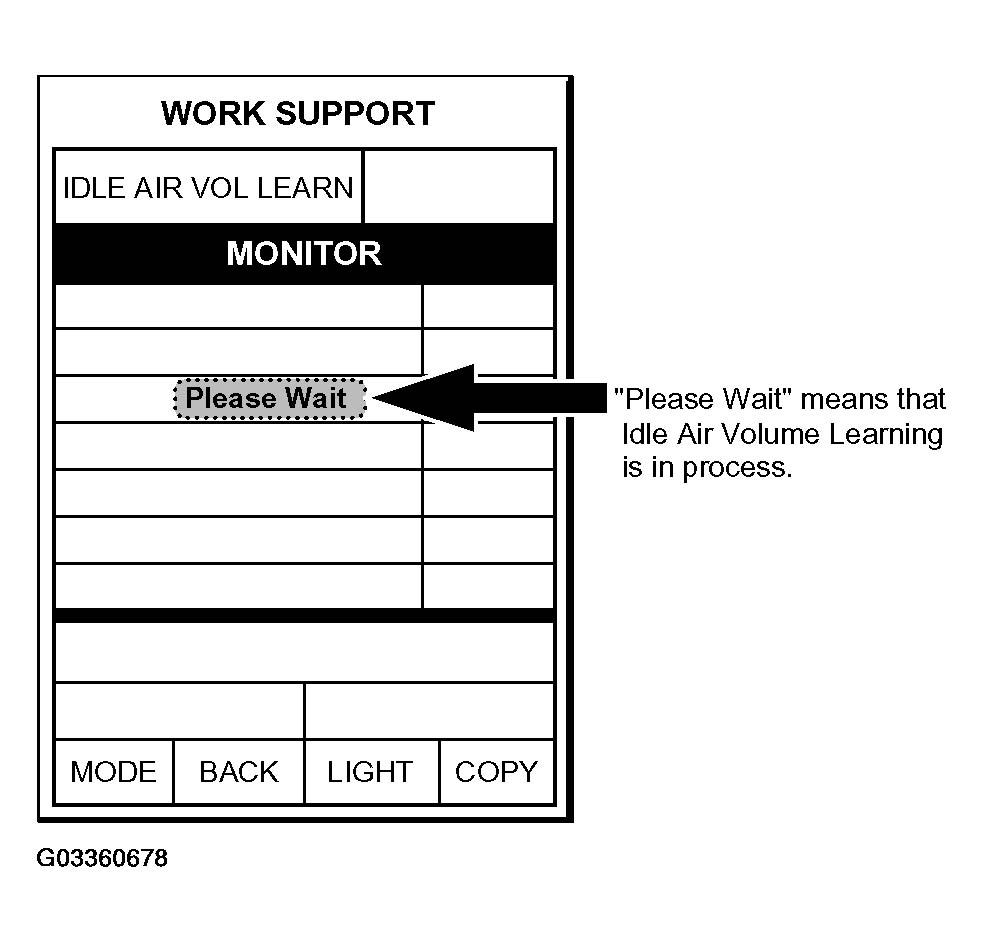

      Fig 6: Display "Please Wait" In Center Of Screen
      G03360678

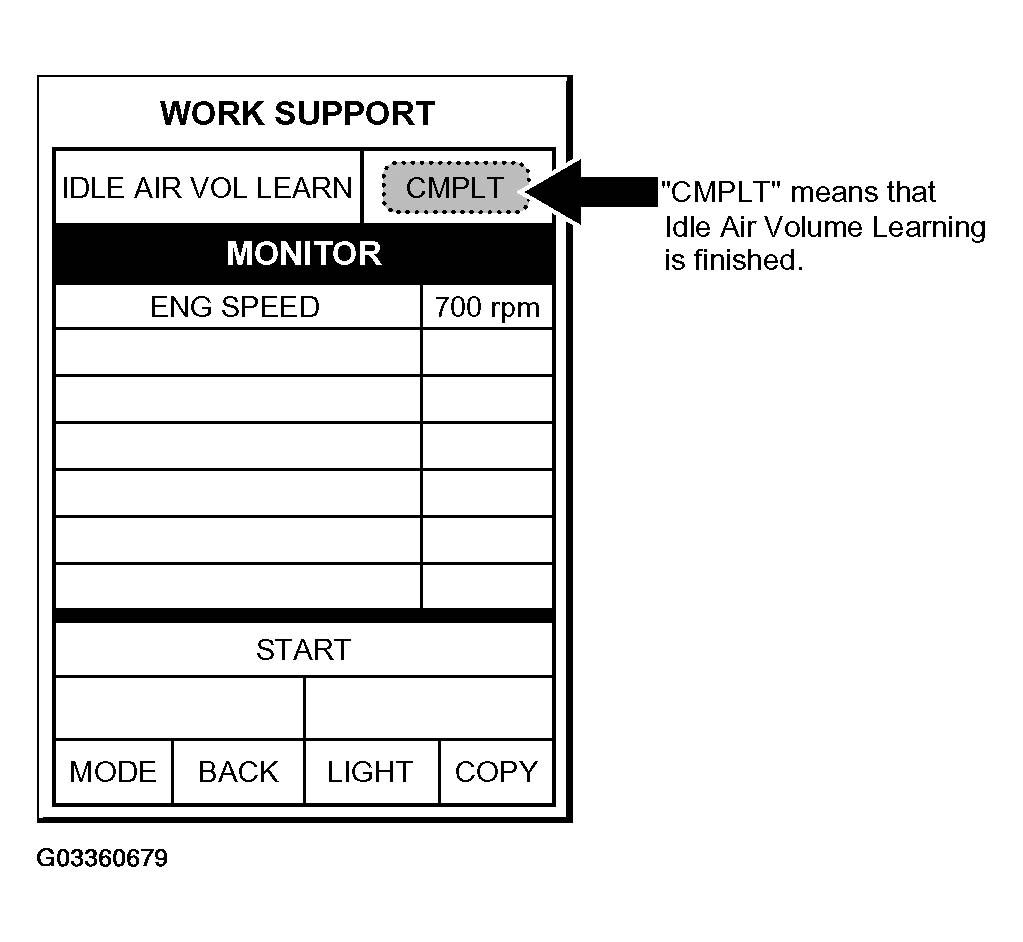

      Fig 7: Display "CMPLT" In Top Right Corner Of Screen
      G03360679

    For 2005 and Later MY Vehicles ONLY: Enter VIN Into New Service Replacement ECM

  7. Enter the VIN into the new service replacement ECM as follows:
    1. Select [ENGINE]  on the "Select System" screen. See Fig 8 .

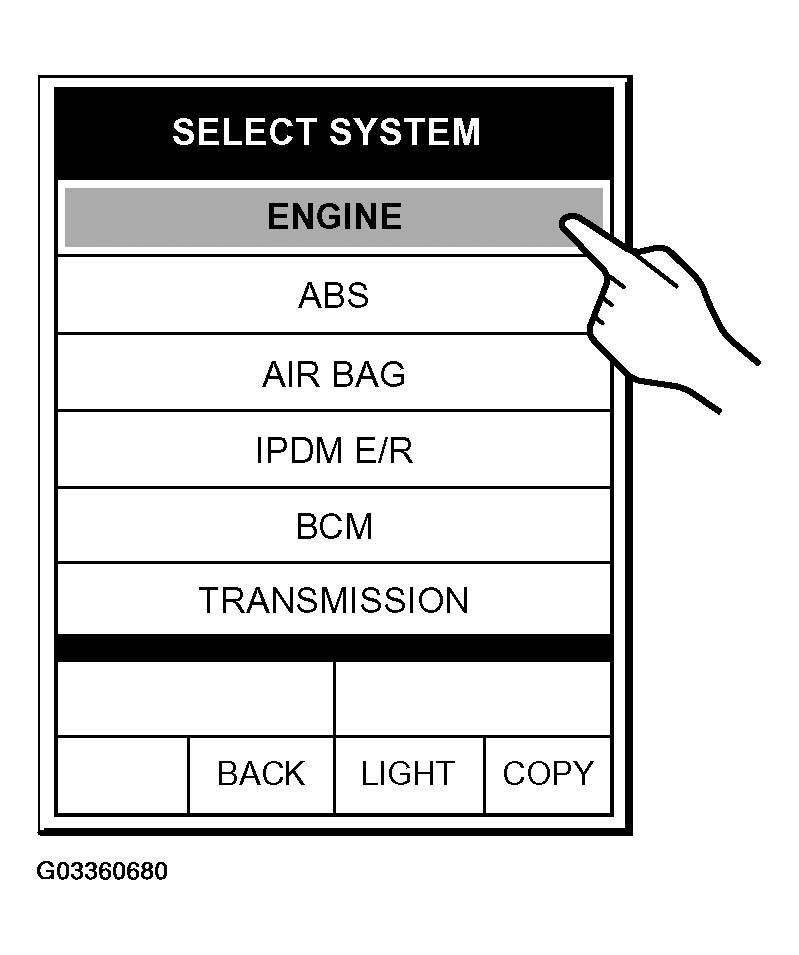

      Fig 8: Selecting [Engine] On "Select System" Screen
      G03360680

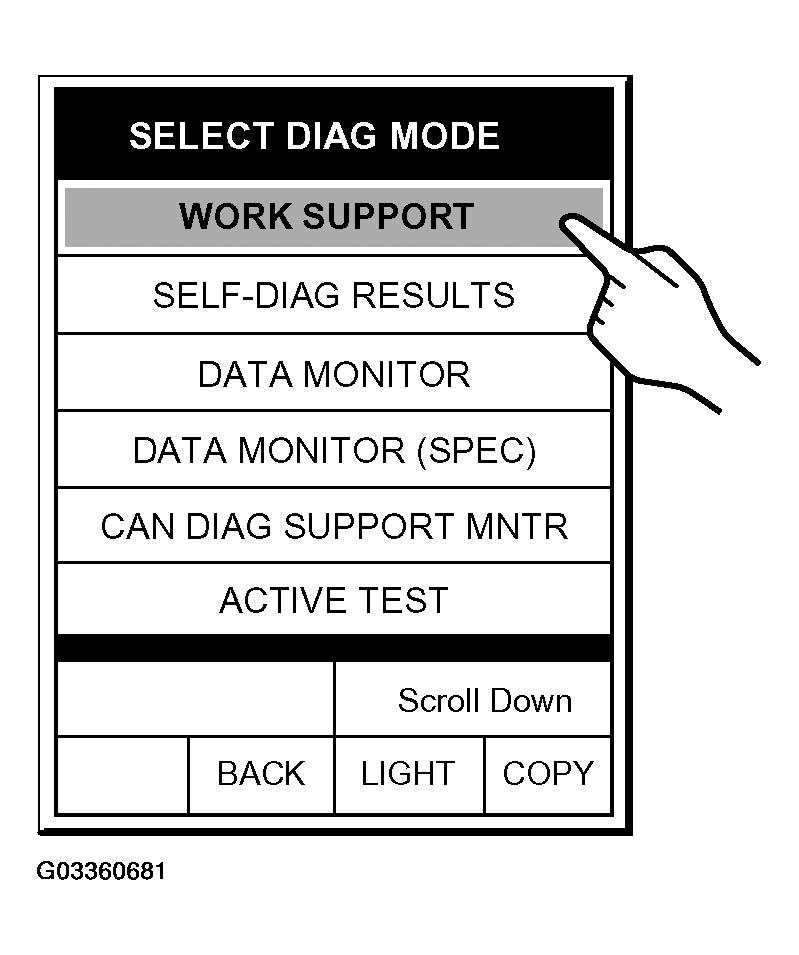

    2. Select [WORK SUPPORT]  on the "Select Diag Mode" screen. See Fig 9 .
      Fig 9: Selecting [Work Support] On "Select Diag Mode" Screen
      G03360681
    3. Scroll down and select [VIN REGISTRATION]  on the "Select Work Item" screen. See Fig 10 .

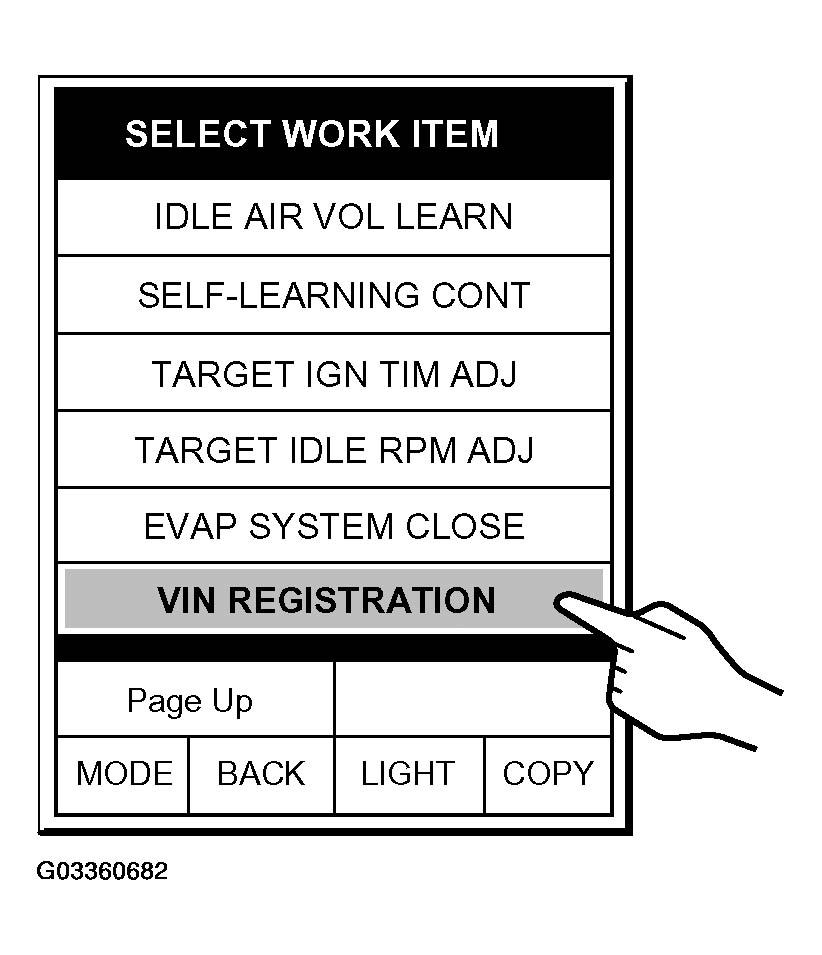

      Fig 10: Selecting [VIN Registration] On "Select Work Item" Screen
      G03360682
    4. Press [START]  on the "VIN Registration" screen. See Fig 11 .

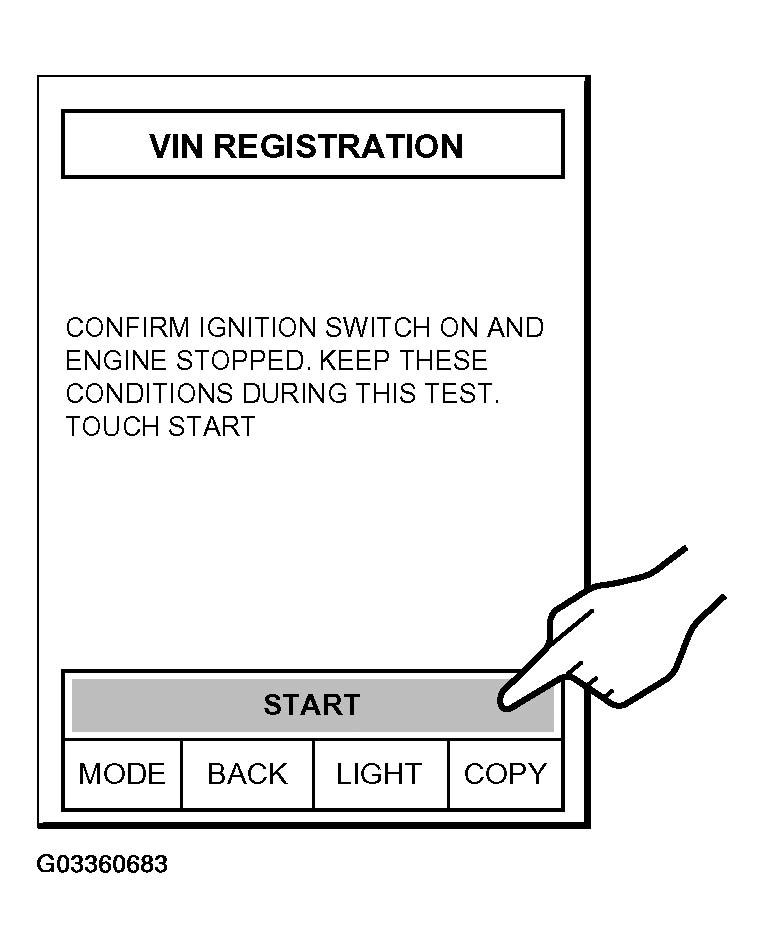

      Fig 11: Pressing [Start] On "VIN Registration" Screen
      G03360683

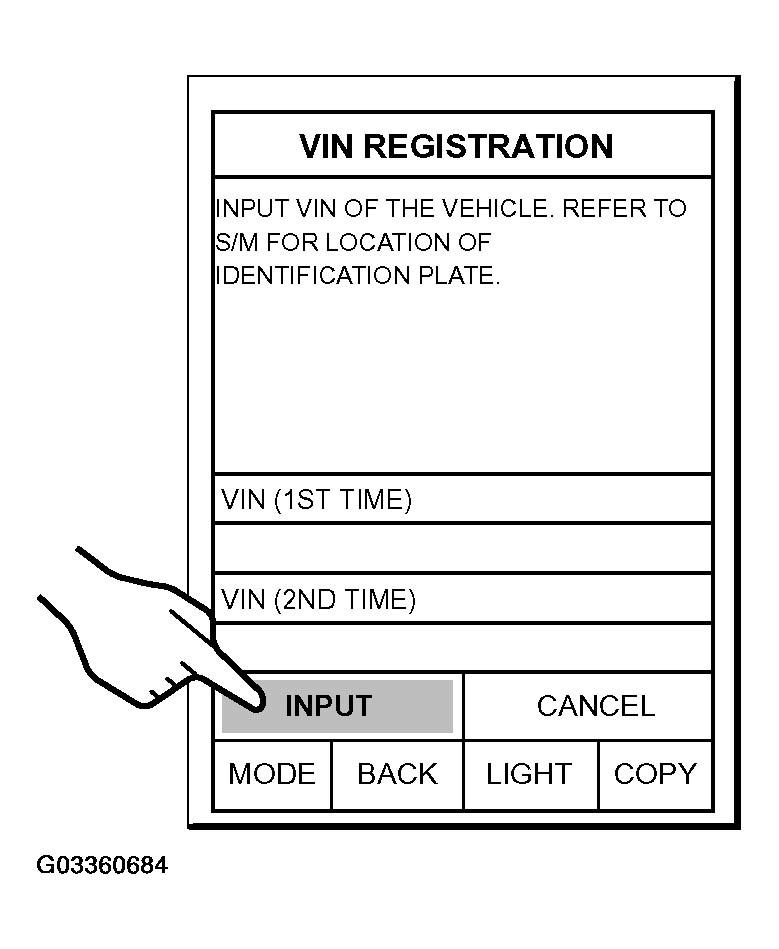

    5. Select [INPUT]  on the "VIN Registration" screen. See Fig 12 .
      Fig 12: Selecting [Input] On "VIN Registration" Screen
      G03360684
    6. Enter the entire VIN using the keyboard. See Fig 13 .
      • Use [CHNG] to switch between the letters and numbers keyboard screens.

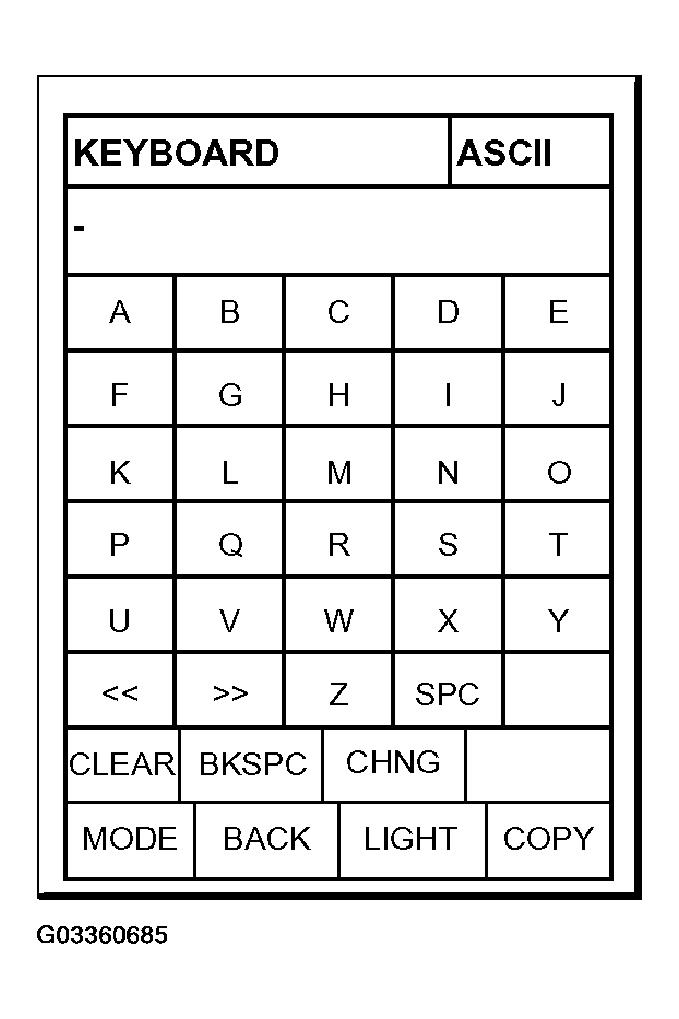

        Fig 13: Display Keyboard Screen
        G03360685
    7. Once the entire VIN is entered, select [ENTER]  on the "Keyboard" screen. See Fig 14 .

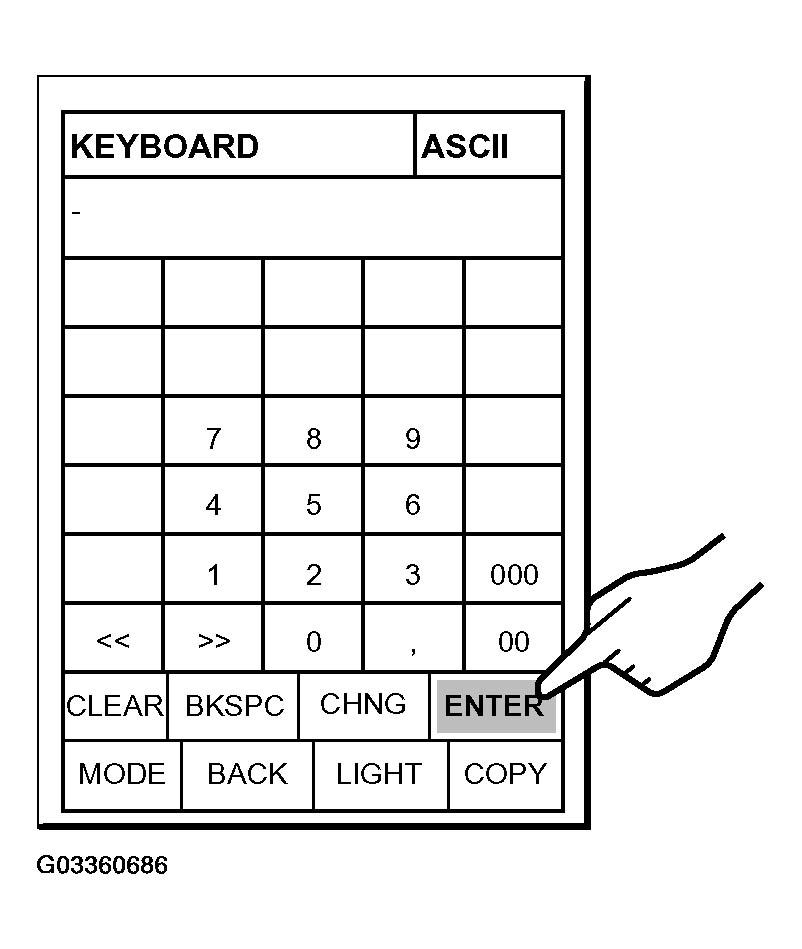

      Fig 14: Selecting [Enter] on "Keyboard" Screen
      G03360686

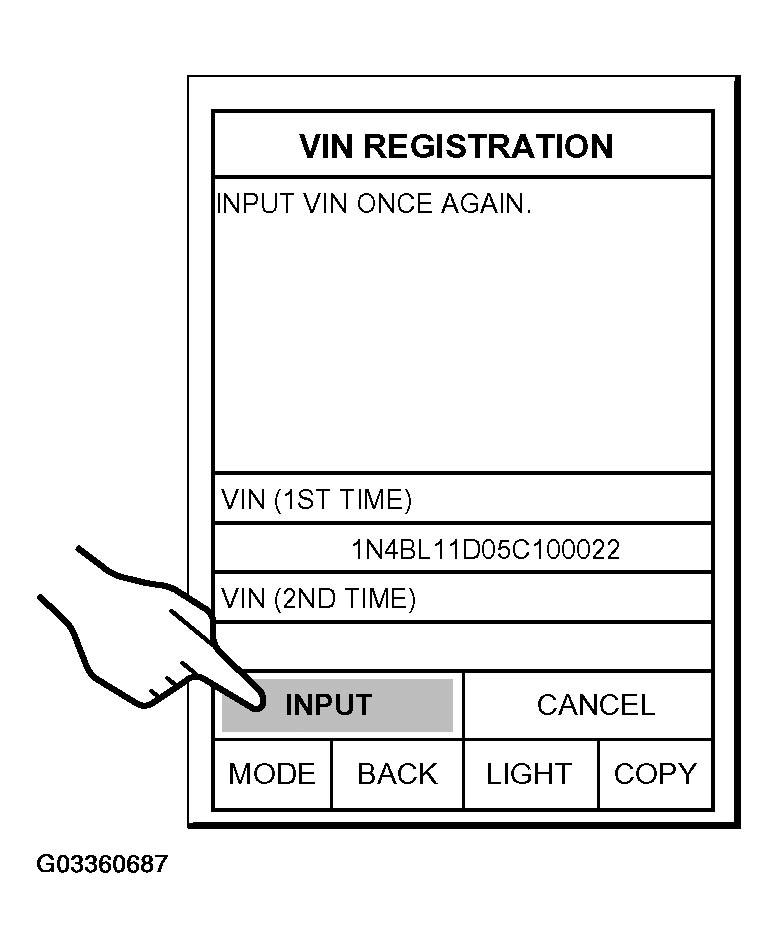

    8. Select [INPUT]  on the "VIN Registration" screen and enter the entire VIN again. See Fig 15 .
      • You MUST enter the VIN a second time for confirmation purposes.
        Fig 15: Selecting [Input] On "VIN Registration" Screen
        G03360687
    9. Once the entire VIN is entered (a second time), select [ENTER]  on the "Keyboard" screen. See Fig 16 .

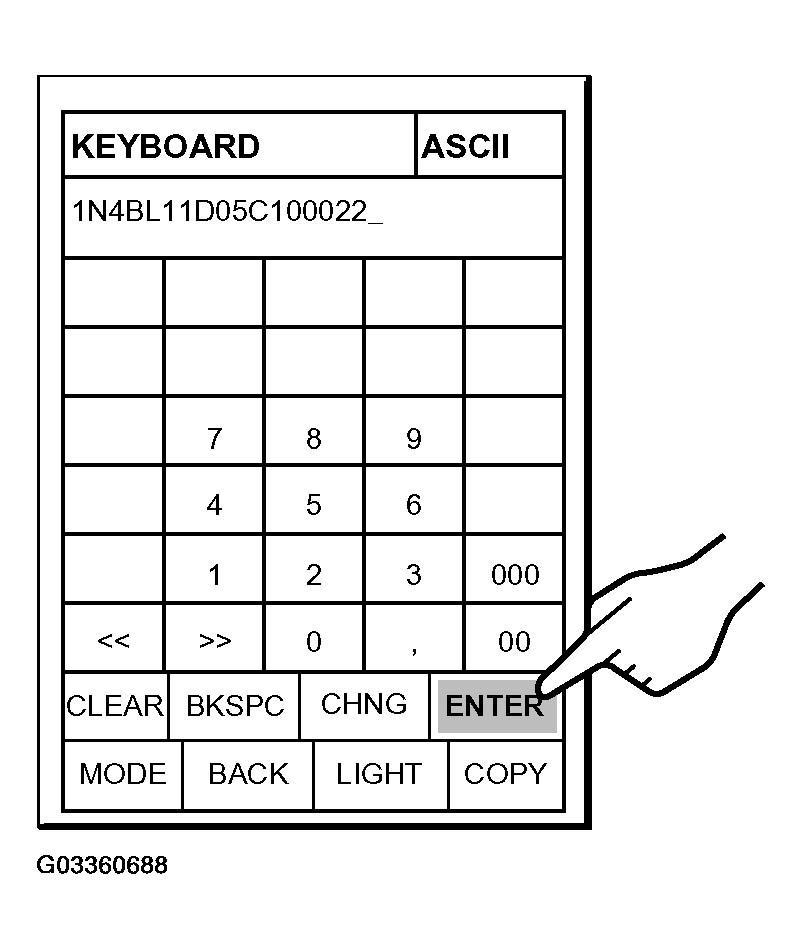

      Fig 16: Selecting [Enter] On "Keyboard" Screen
      G03360688
    10. Select [START]  on the "VIN Registration" screen to complete the VIN registration process. See Fig 17 .
    11. Turn the ignition switch OFF and wait at least 10 seconds.

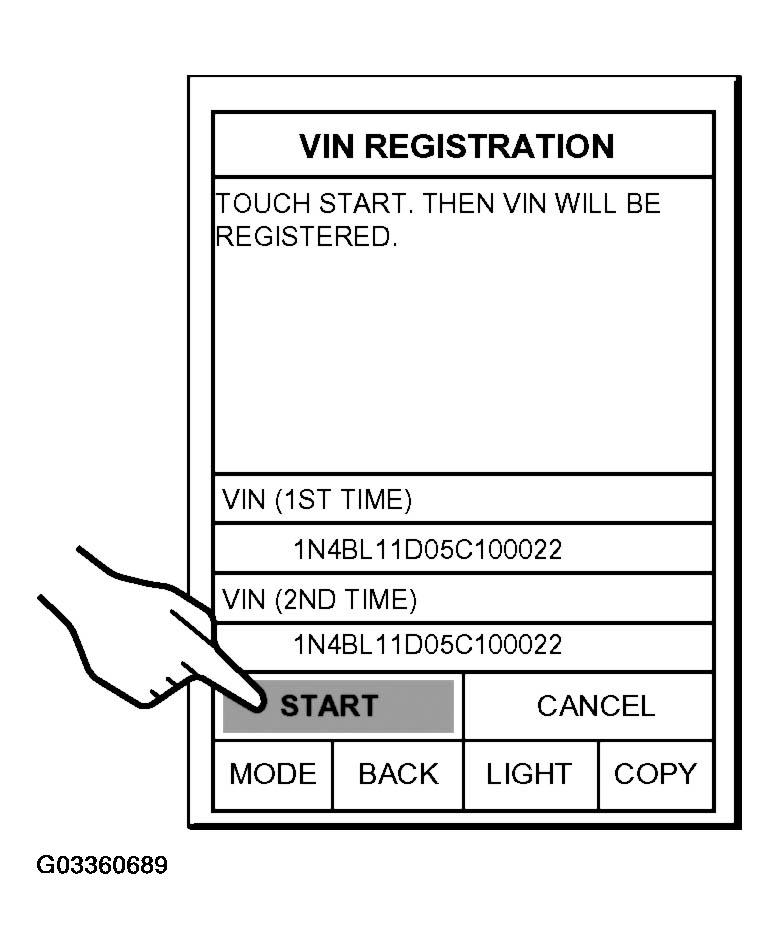

      Fig 17: Selecting [Start] On "VIN Registration" Screen
      G03360689
