Disassembly and Assembly: Notes

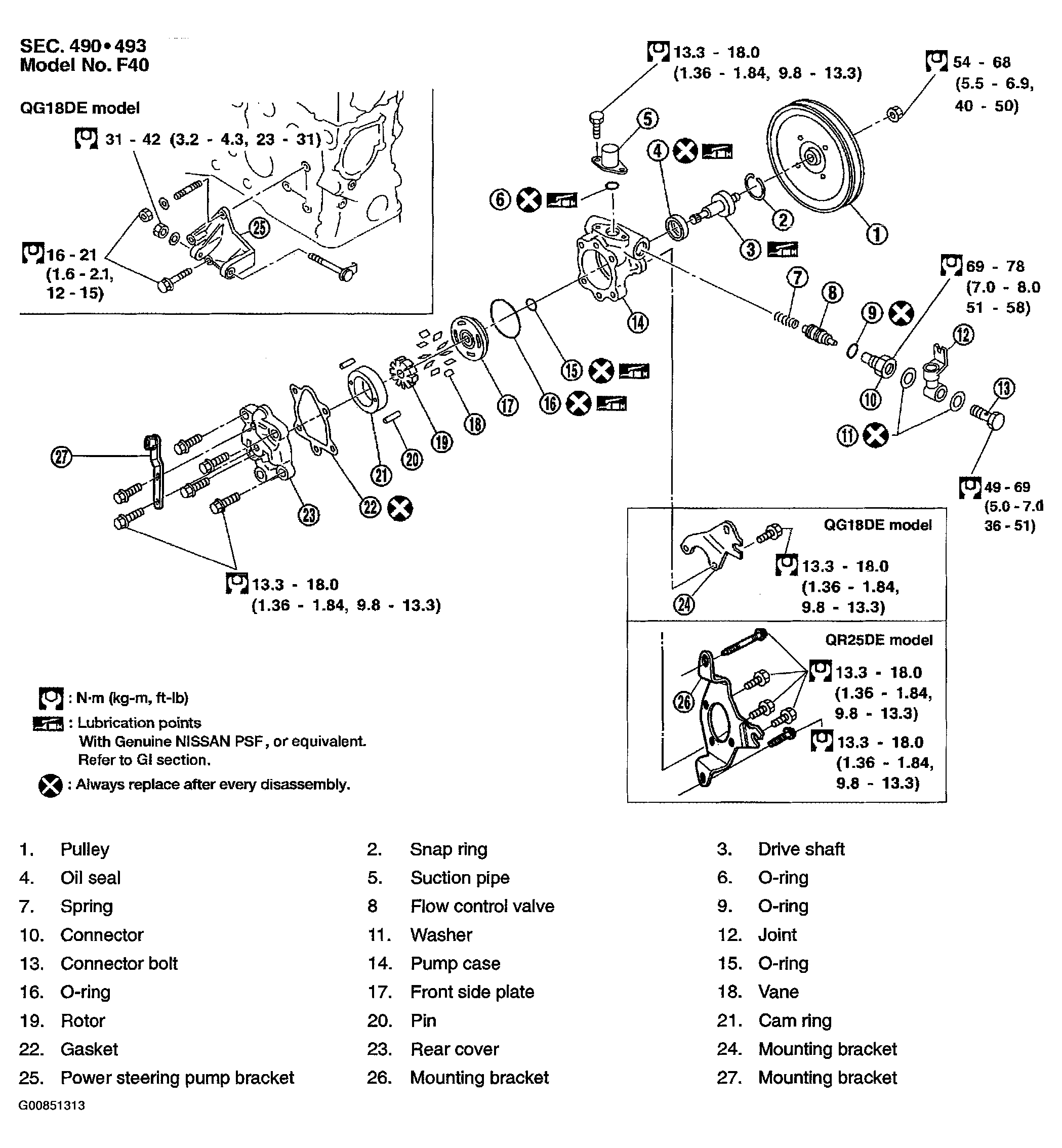

Fig 1: Disassembling Power Steering Oil Pump With Torque Specifications
G00851313Courtesy of NISSAN MOTOR CO., U.S.A.
