Camber, Caster And Kingpin Inclination

Camber, caster and kingpin inclination are preset at factory and cannot be adjusted.

1. Measure camber, caster and kingpin inclination of both right and left wheels with a suitable alignment gauge.
   • Camber, caster and kingpin inclination : Refer to  "SPECIFICATIONS  ".
2. If camber, caster or kingpin inclination is not within specification, inspect front suspension parts. Replace damaged or worn out parts.

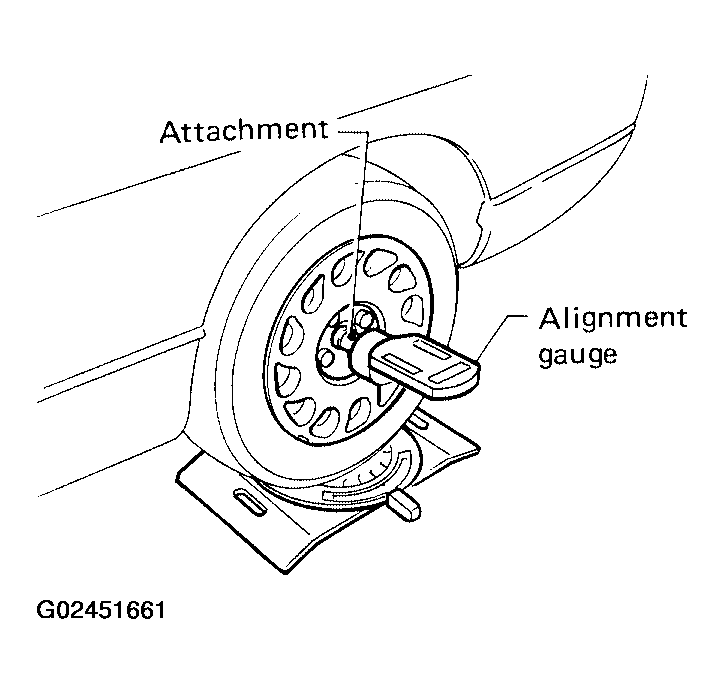

   Fig 1: Measuring Camber, Caster And Kingpin Inclination

   Courtesy of NISSAN MOTOR CO., U.S.A.
