Diagnostic Procedure

SYMPTOM 1:

Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
Selector lever can be moved from "P" position with key in ON position and brake pedal released.
Selector lever can be moved from "P" position when key is removed from key cylinder.

SYMPTOM 2:

Ignition key cannot be removed when selector lever is set to "P" position. It can be removed when selector lever is set to any position except "P".

CHECK KEY INTERLOCK CABLE
Check key interlock cable for damage.

OK or NG
1. OK: GO TO 2.
2. NG: Repair key interlock cable. Refer to "COMPONENTS ".
CHECK SELECTOR LEVER POSITION
Check selector lever position for damage.

OK or NG
1. OK: GO TO 3.
2. NG: Check selector lever. Refer to "CONTROL CABLE ADJUSTMENT ".
CHECK POWER SOURCE
Turn ignition switch to "OFF" position.

(Do not start engine.)
- Check voltage between A/T device harness connector M44 terminal 7 (G) and ground.
  1. Voltage:
  2. Brake pedal depressed: Battery voltage
  3. Brake pedal released: 0V
OK or NG
1. OK: GO TO 5.
2. NG: GO TO 4.

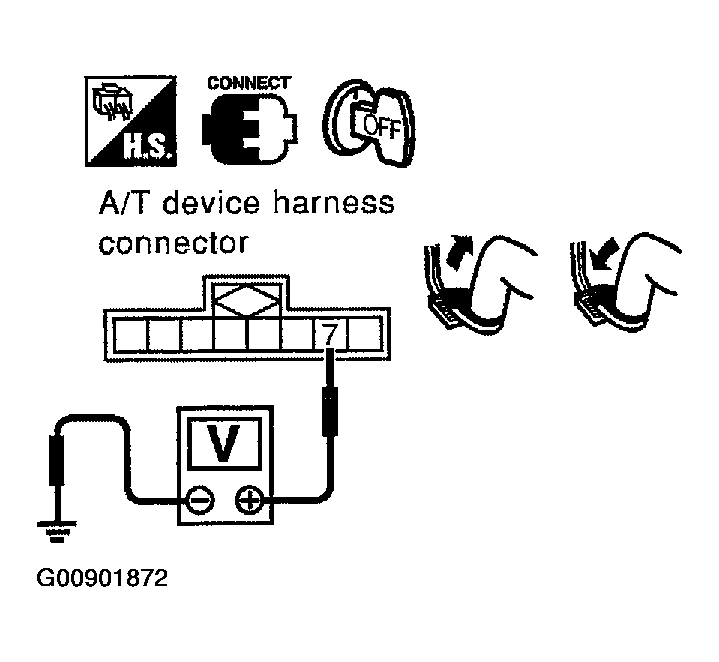

Fig 1: Checking Voltage Between A/T Device Harness Connector M44 Terminal 7 (G) And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING ITEM
Check the following items.
1. Harness for open or short between fuse block (J/B) connector M1 terminal 12K and stop lamp switch harness connector M26 terminal 3.
2. Harness for open or short stop lamp switch harness connector M26 terminal 4 and A/T device harness connector M44 terminal 7 (G).
3. 10A fuse [10, located in the fuse block (J/B)].
4. Check continuity between stop lamp switch harness connector M26 terminals 3 (G) and 4 (G).

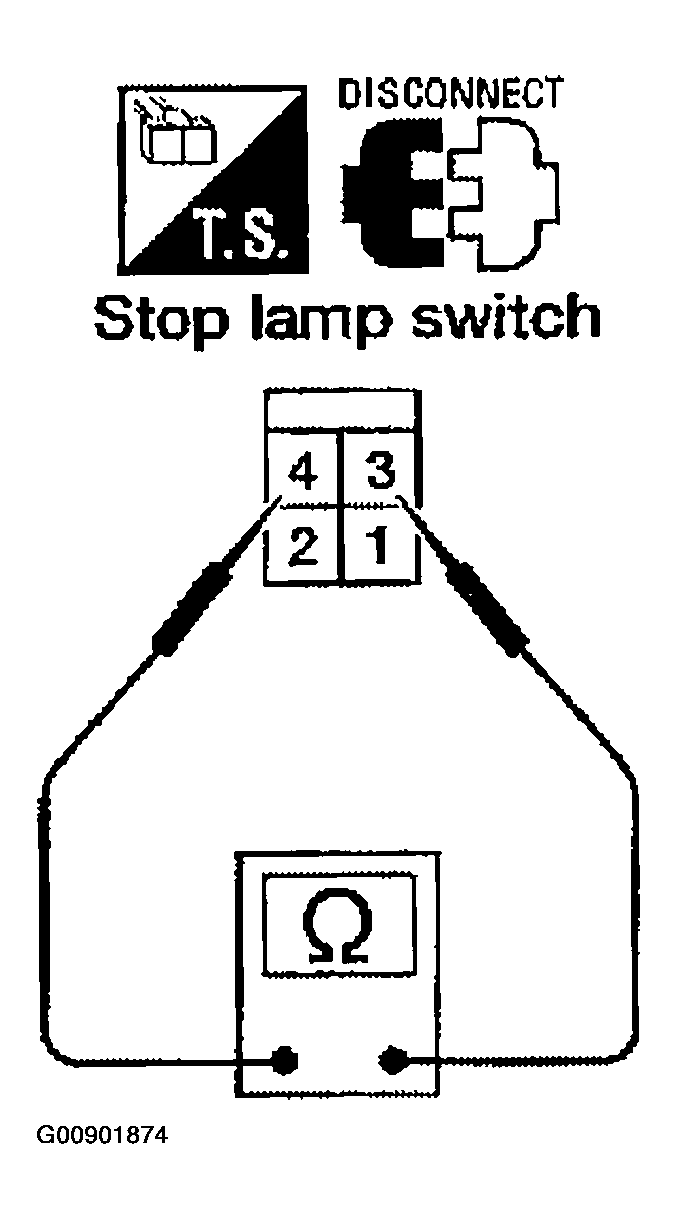

  Fig 2: Checking Stop Lamp Switch Continuity (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Check stop lamp switch after adjusting brake pedal - refer to STOPLIGHT SWITCH & AUTOMATIC SPEED CONTROL DEVICE .
OK or NG
1. OK: GO TO 5.
2. NG: Repair or replace damaged parts.

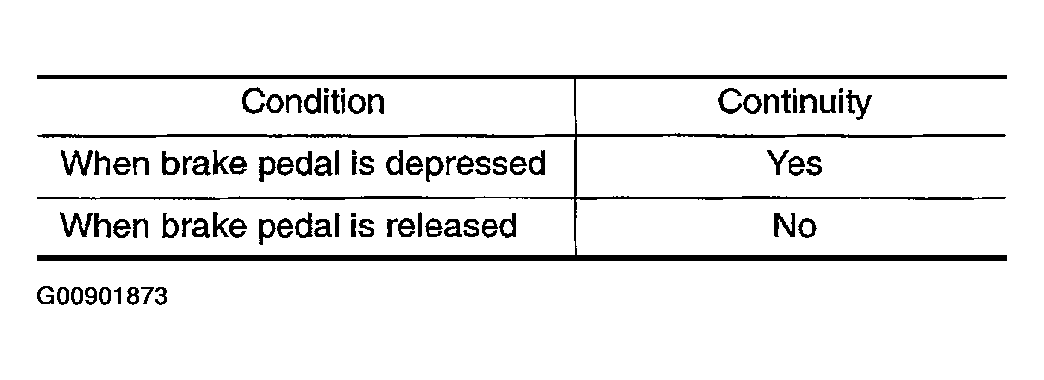

Fig 3: Checking Stop Lamp Switch Continuity (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK GROUND CIRCUIT
1. Turn ignition switch to "OFF" position.
2. Disconnect A/T device harness connector.
3. Check continuity between A/T device harness M44 terminal 6 (B) and ground.
  1. Continuity should exist
  Continuity should exist.

  If OK, check harness for short to power.
OK or NG
1. OK: GO TO 6.
2. NG: Repair open circuit in harness.

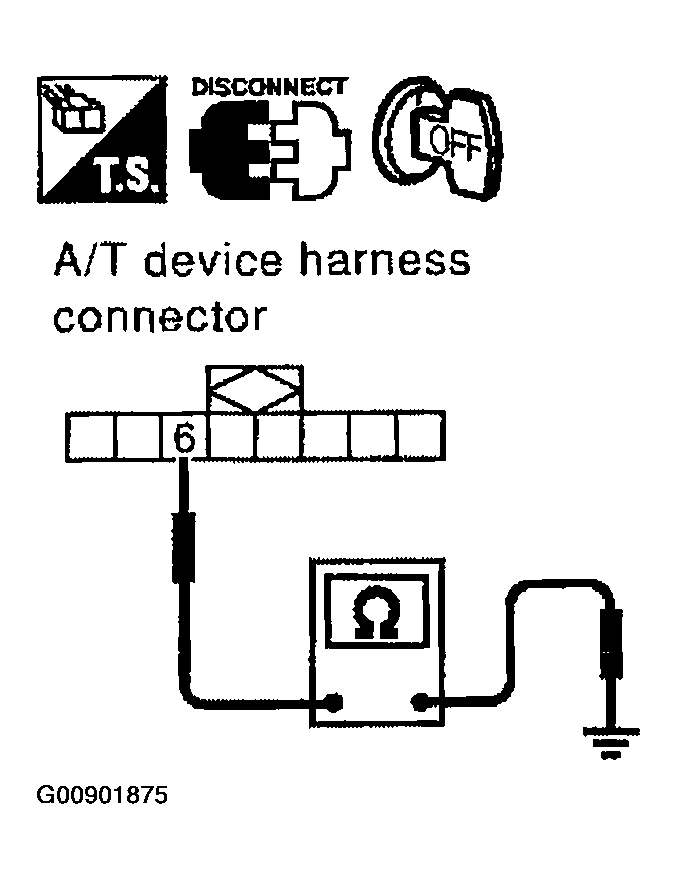

Fig 4: Checking Continuity Between A/T Device Harness M44 Terminal 6 (B) And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK PARK POSITION SWITCH
Check continuity between A/T device harness connector M44 terminals 6 (B) and 7 (G).

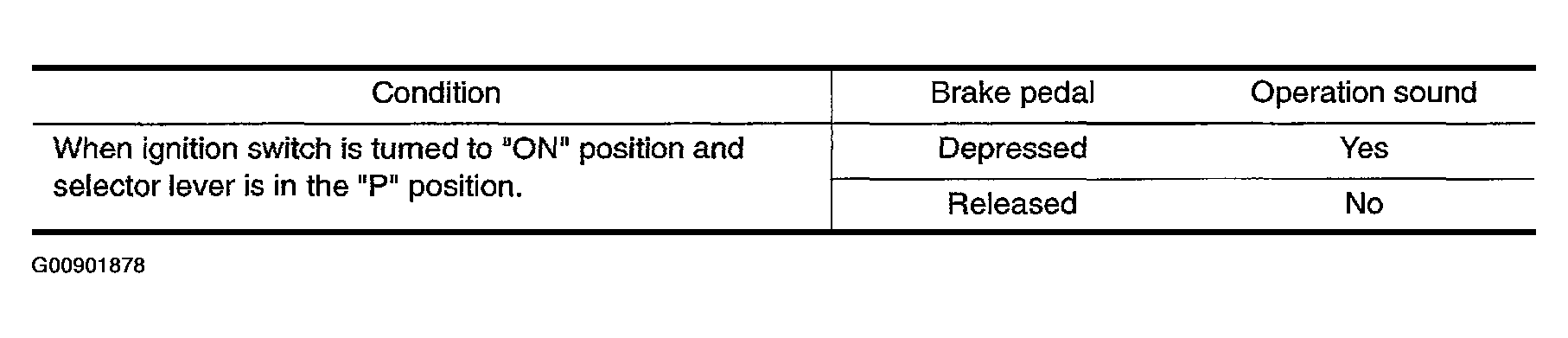

Fig 5: Brake Pedal Operation Sound Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 7.
2. NG: Replace park position switch.

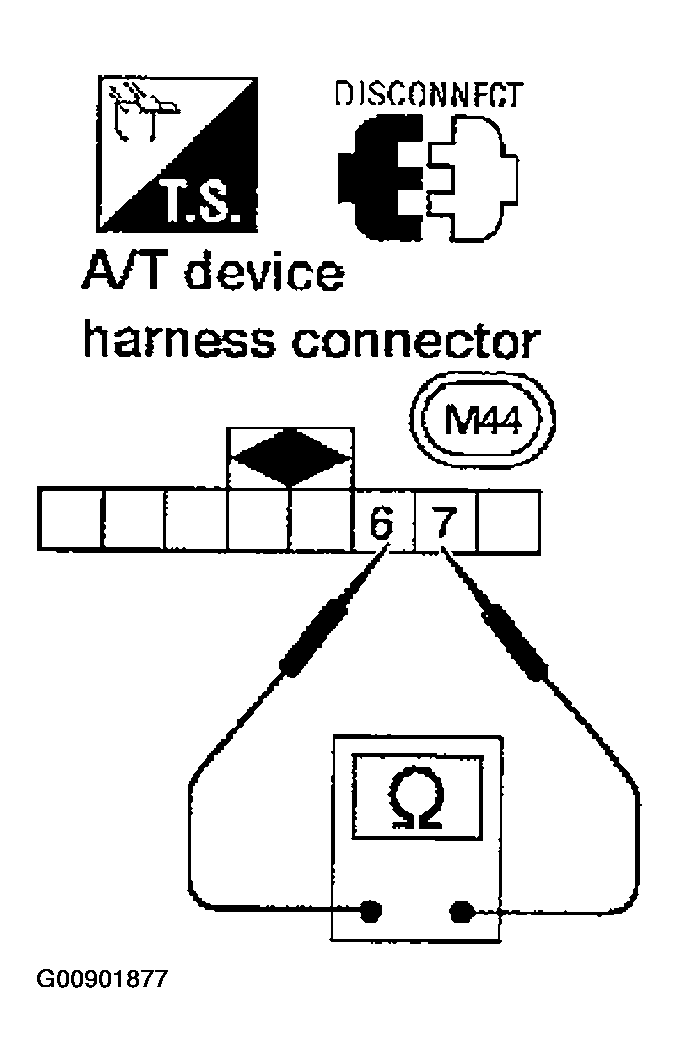

Fig 6: Checking Continuity Between A/T Device Harness Connector M44 Terminals 6 (B) And 7 (G)
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SHIFT LOCK SOLENOID
1. Connect A/T device harness connector.
2. Turn ignition switch to "ON" position.
3. Check operation sound.

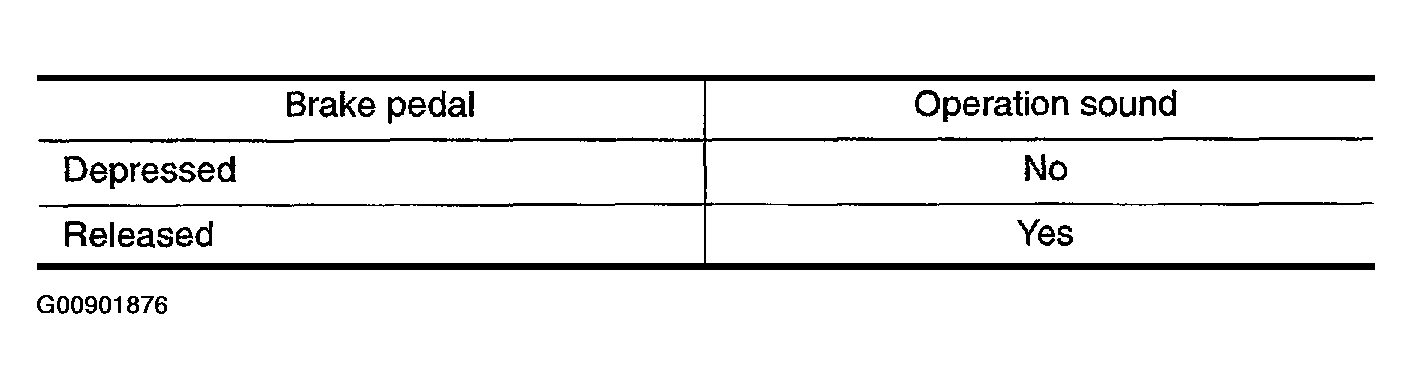

  Fig 7: Checking Shift Lock Solenoid Operation Sound
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 8.
2. NG: Replace shift lock solenoid.
CHECK SHIFT LOCK OPERATION
1. Reconnect shift lock harness connector.
2. Turn ignition switch from "OFF" to "ON" position. (Do not start engine.)
3. Recheck shift lock operation.
OK or NG
1. OK: INSPECTION END
2. NG: GO TO 9.
CHECK A/T DEVICE INSPECTION
1. Perform A/T device input/output signal inspection test.
2. If NG, recheck harness connector connection.
OK or NG
1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
