Shift Lock System Electrical Parts Location

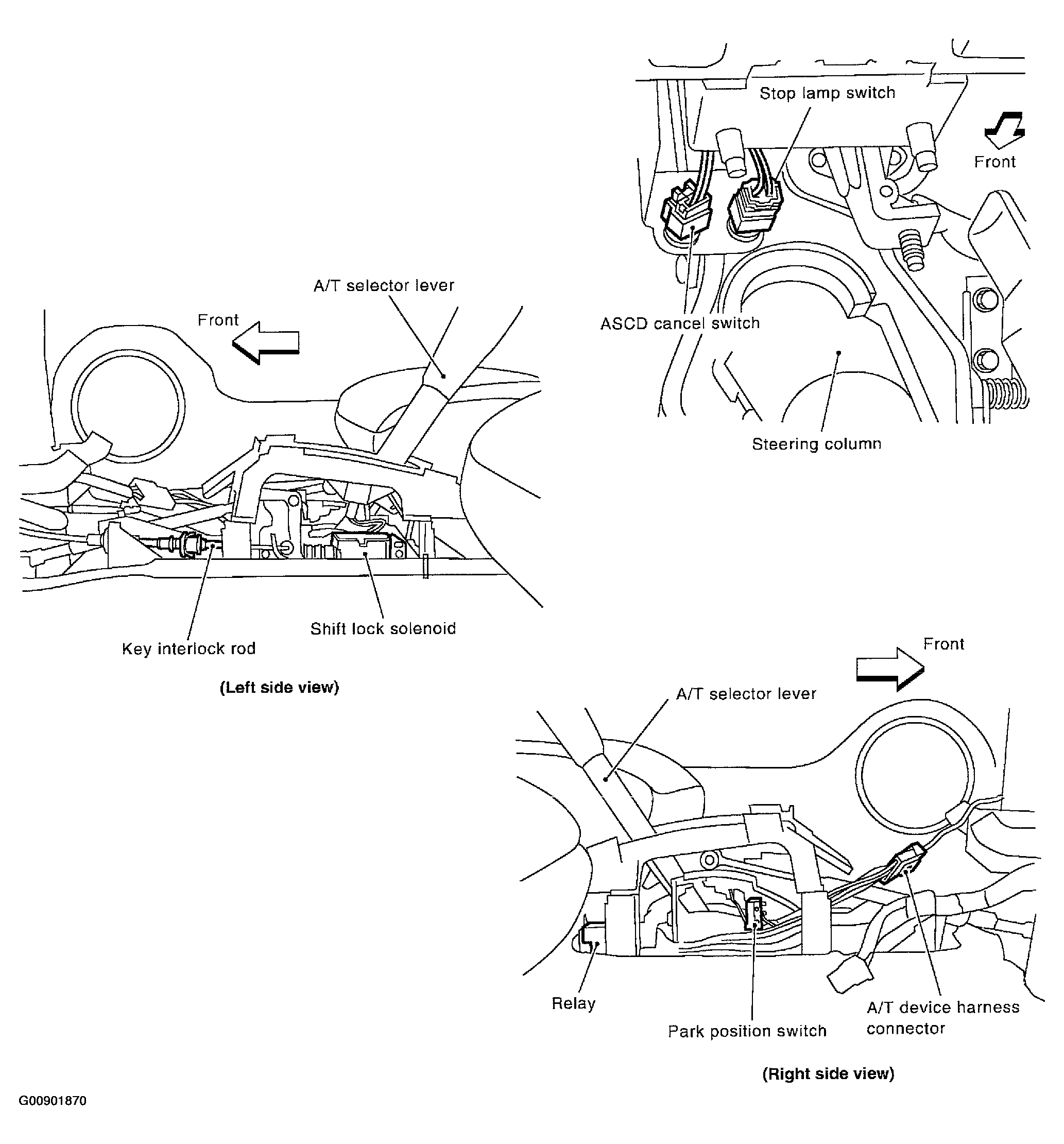

Fig 1: Identifying Shift Lock System Electrical Parts Location
G00901870Courtesy of NISSAN MOTOR CO., U.S.A.
