Assembly (2)

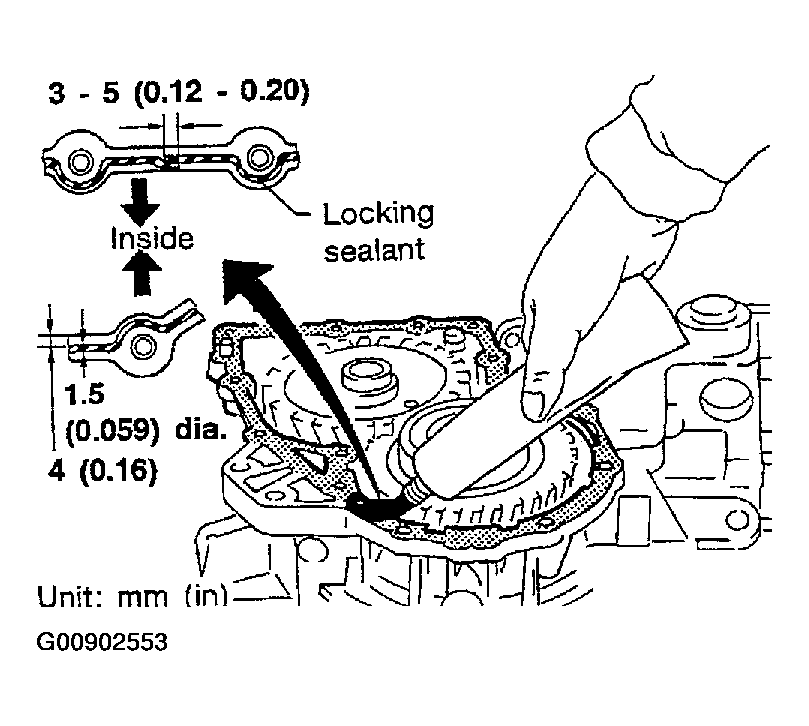

• Apply locking sealant to the mating surface of transmission case.

Fig 2: Setting Side Cover On Transmission Case

Courtesy of NISSAN MOTOR CO., U.S.A.

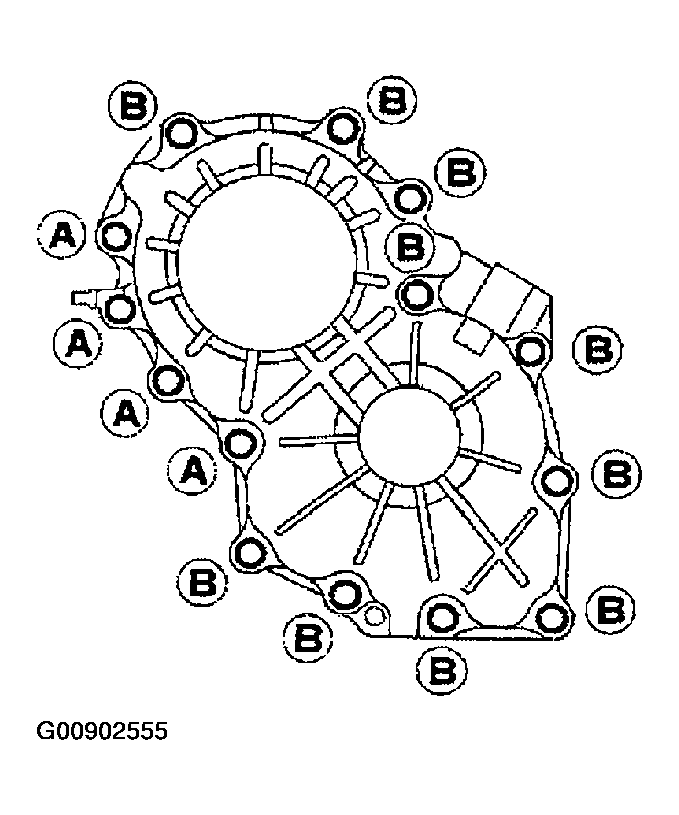

• Do not mix bolts A and B.
• Always replace bolts A as they are self-sealing bolts.

Fig 3: Tightening Side Cover Fixing Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

• Apply petroleum jelly to thrust washer.

Fig 4: Installing Thrust Washer On Bearing Retainer

Courtesy of NISSAN MOTOR CO., U.S.A.

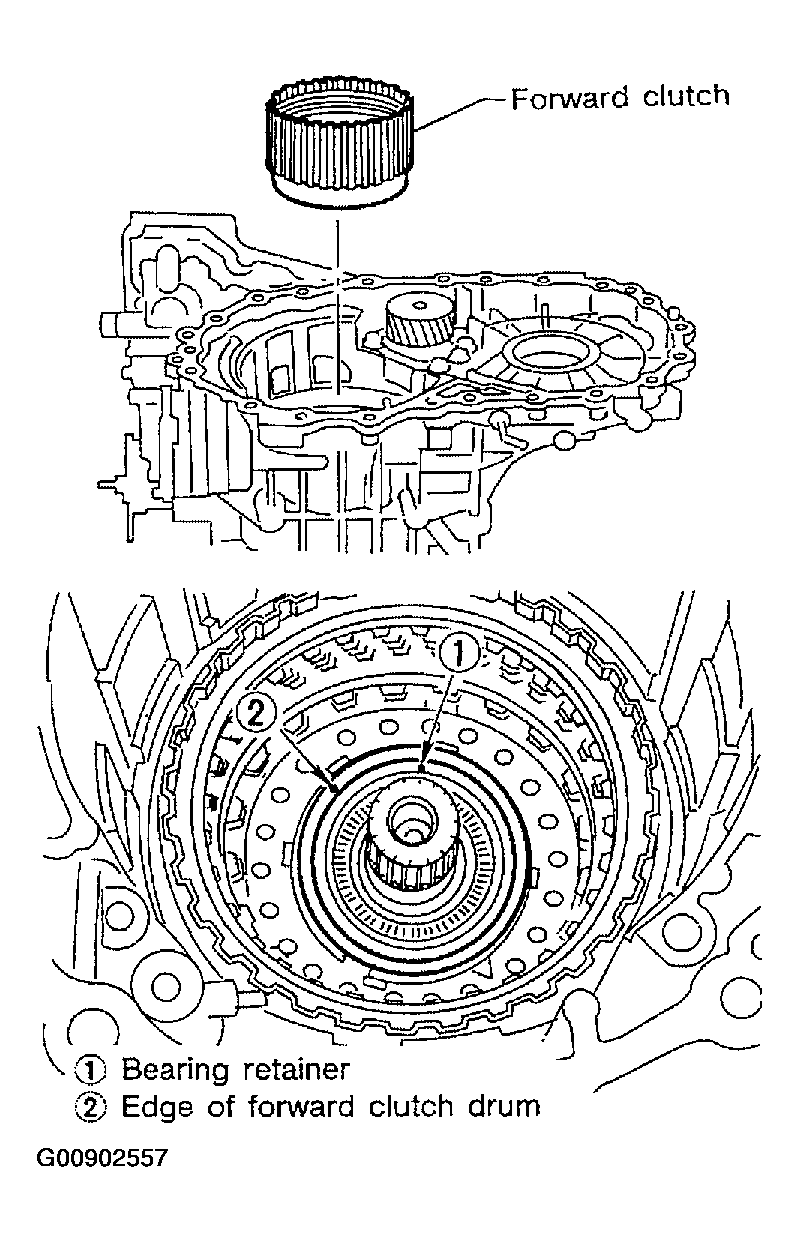

• Align teeth of low & reverse brake drive plates before installing.
• Make sure that bearing retainer seal rings are not spread.
• If forward clutch assembly is correctly seated, points 1 and 2 are at almost same level.

Fig 5: Installing Forward Clutch Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

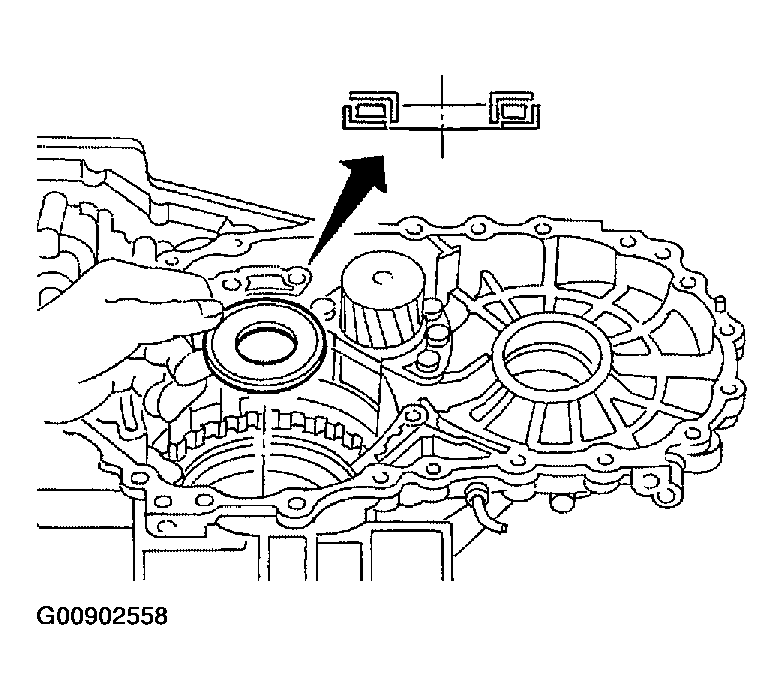

• Apply petroleum jelly to thrust needle bearing.
• Pay attention to direction of thrust needle bearing.

Fig 6: Installing Thrust Needle Bearing On Bearing Retainer

Courtesy of NISSAN MOTOR CO., U.S.A.

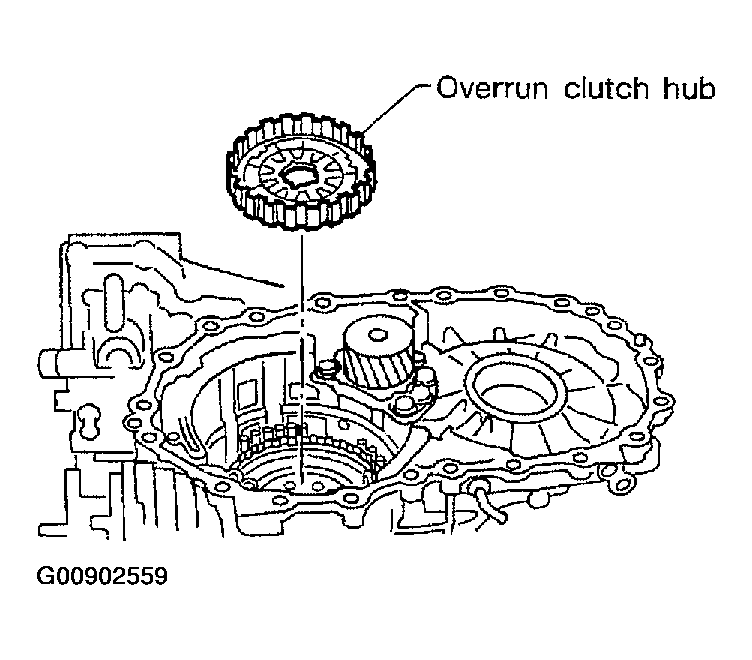

• Apply petroleum jelly to thrust washers.
• Align teeth of overrun clutch drive plates before installing.

Fig 7: Installing Overrun Clutch Hub

Courtesy of NISSAN MOTOR CO., U.S.A.

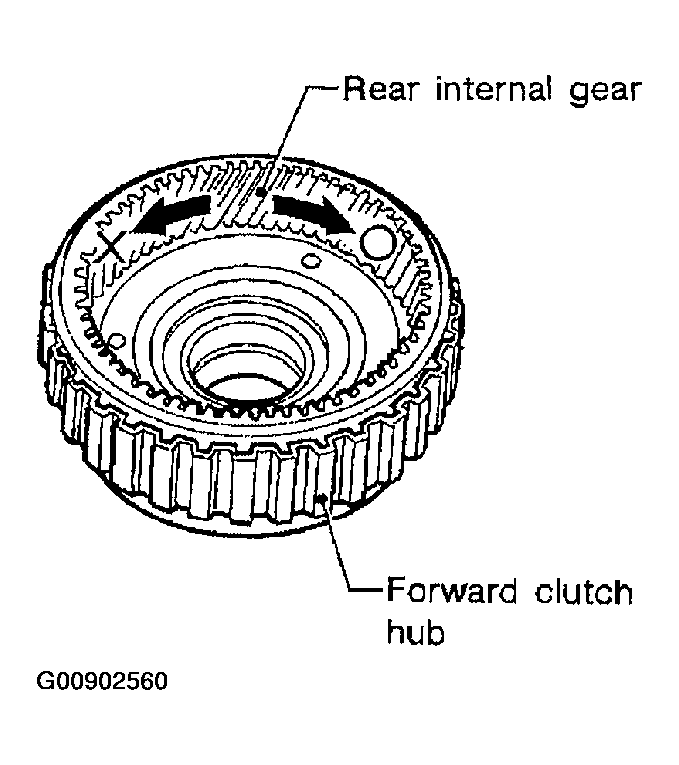

Check overrun clutch hub for correct directions of lock and unlock.

• If not shown as illustrated, check installed direction of forward one-way clutch.

Fig 8: Checking Overrun Clutch Hub For Correct Directions Of Lock And Unlock

Courtesy of NISSAN MOTOR CO., U.S.A.

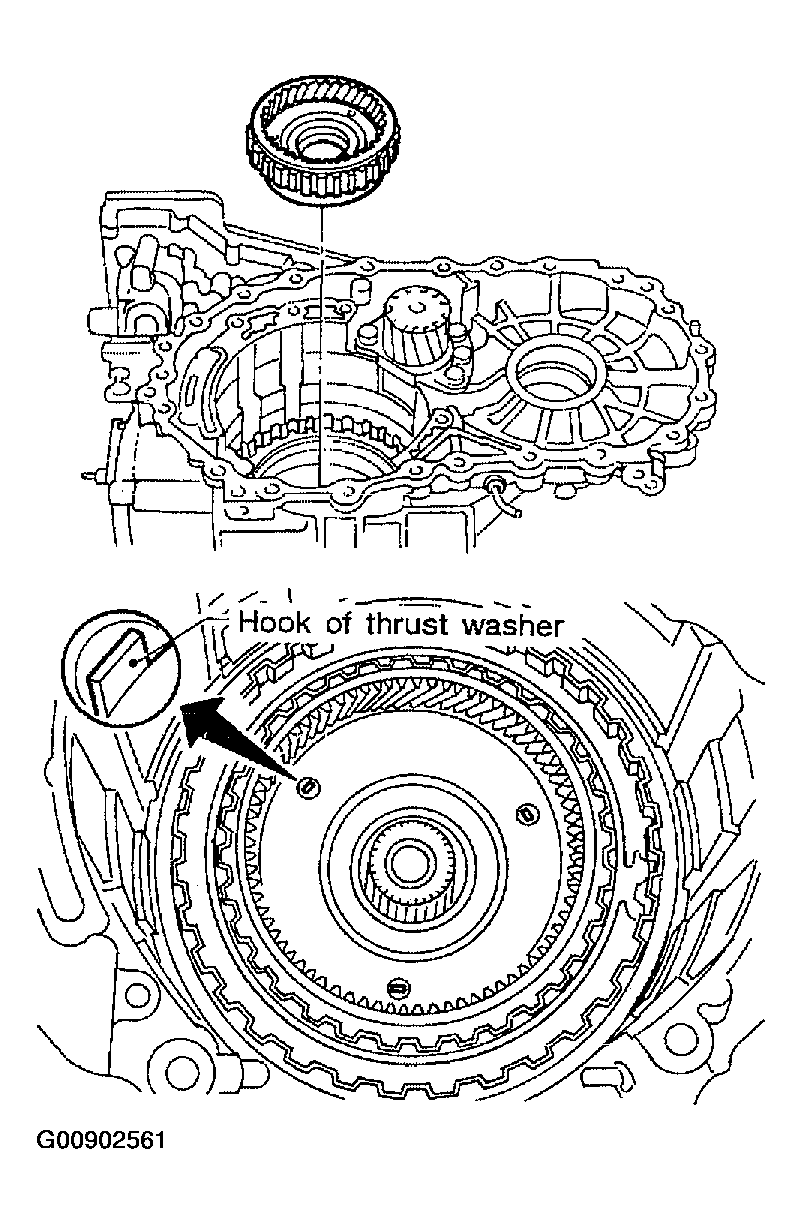

• Align teeth of forward clutch drive plates before installing.
• Check that three hooks of thrust washer are correctly aligned after installing.

Fig 9: Installing Forward Clutch Hub And Rear Internal Gear Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

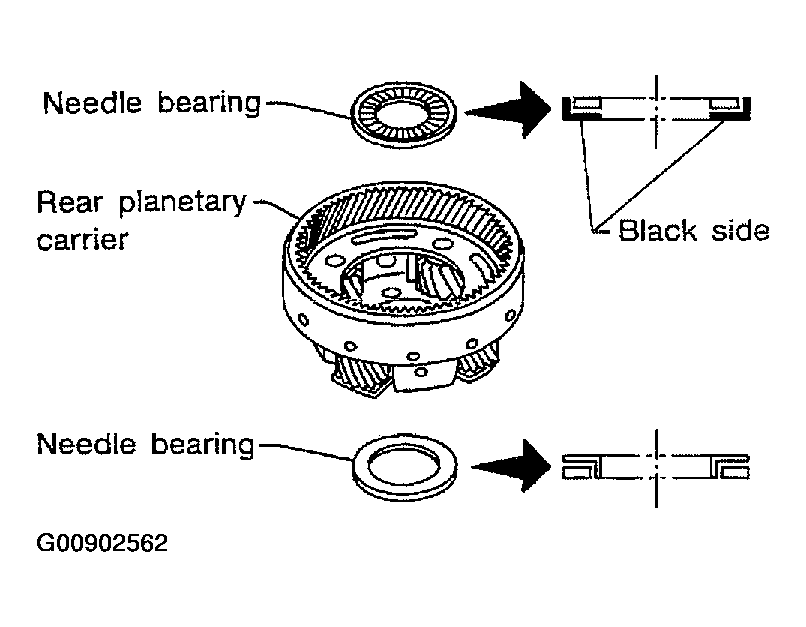

1. Install needle bearings on rear planetary carrier.
   • Apply petroleum jelly to needle bearings.
   • Pay attention to direction of needle bearings.
   Fig 10: Installing Needle Bearings On Rear Planetary Carrier

   Courtesy of NISSAN MOTOR CO., U.S.A.

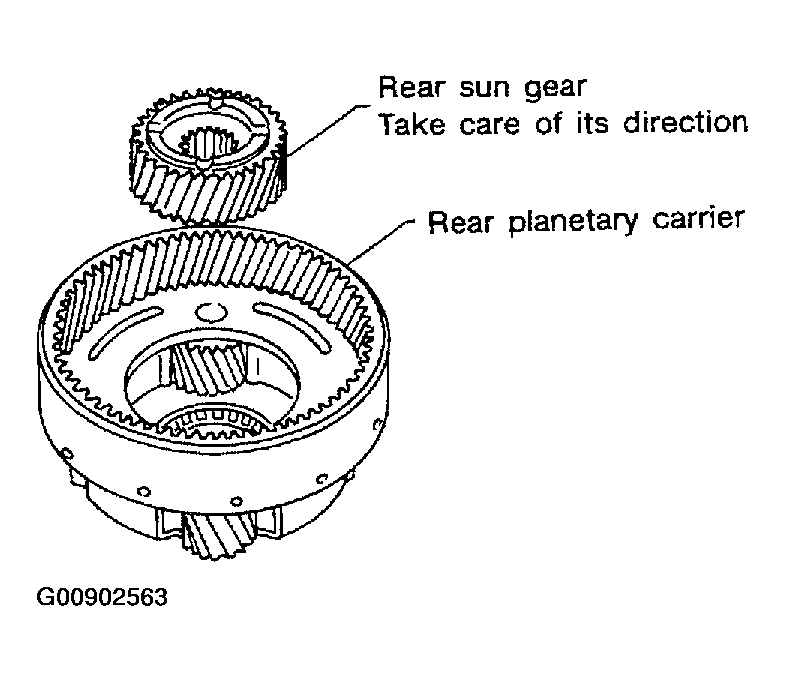

2. Install rear sun gear on rear planetary carrier.
   • Pay attention to direction of rear sun gear.
   Fig 11: Installing Rear Sun Gear On Rear Planetary Carrier

   Courtesy of NISSAN MOTOR CO., U.S.A.

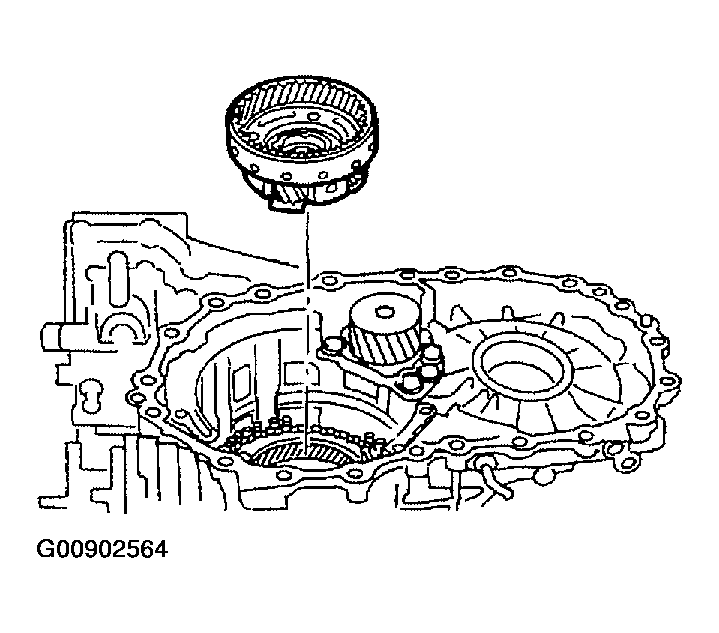

3. Install rear planetary carrier on transmission case.

Fig 12: Installing Rear Planetary Carrier On Transmission Case

Courtesy of NISSAN MOTOR CO., U.S.A.

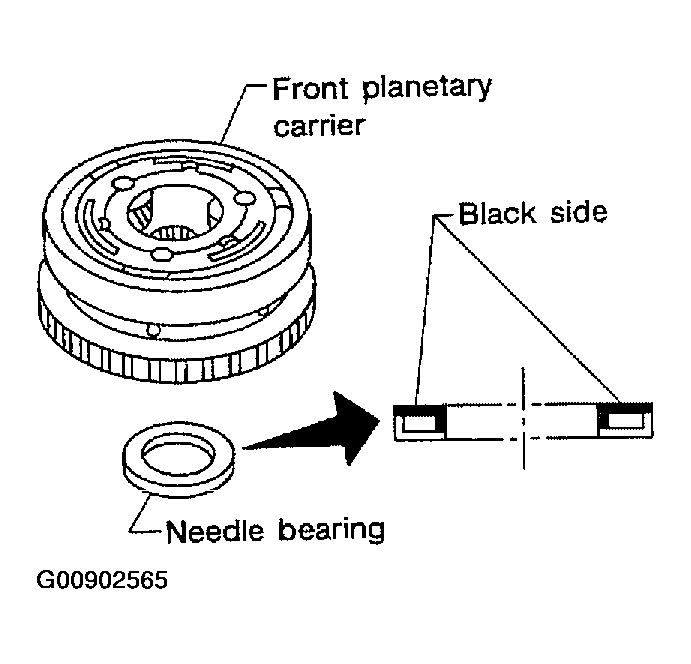

• Apply petroleum jelly to thrust needle bearing.
• Pay attention to direction of thrust needle bearing.

Fig 13: Installing Thrust Needle Bearing On Front Planetary Carrier

Courtesy of NISSAN MOTOR CO., U.S.A.

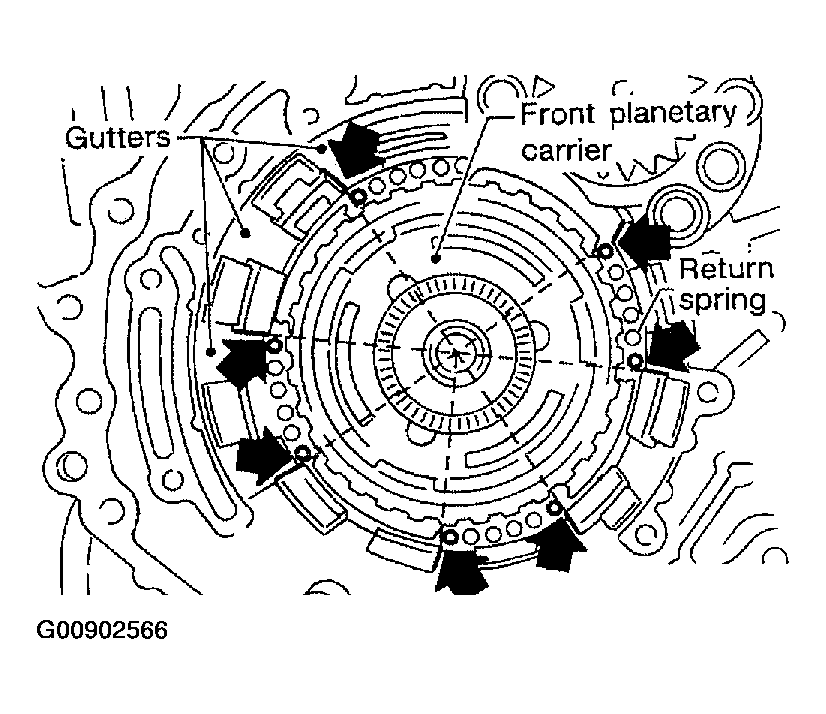

1. Set and align return springs to transmission case gutters as shown in illustration.
   Fig 14: Aligning Return Springs To Transmission Case Gutters

   Courtesy of NISSAN MOTOR CO., U.S.A.

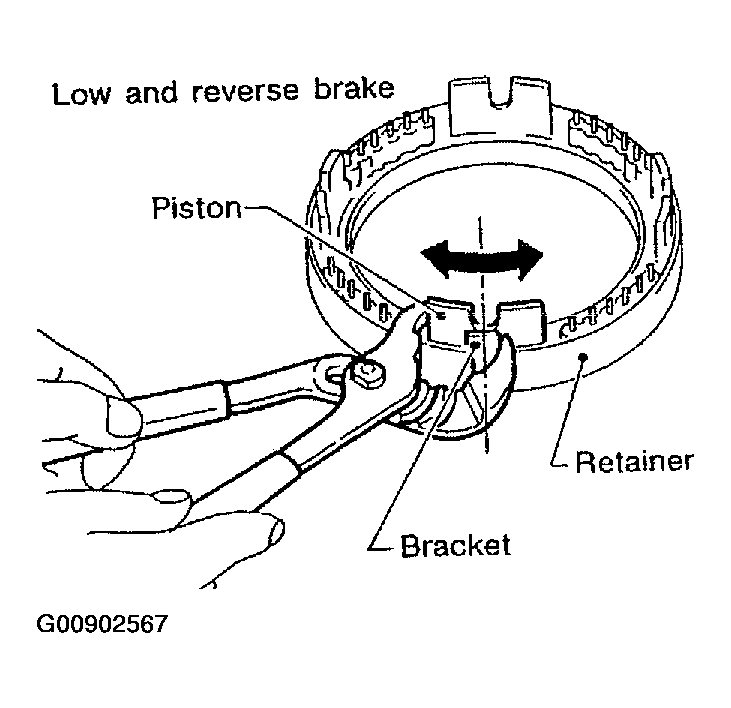

2. Set and align piston with retainer.
   Fig 15: Aligning Piston With Retainer

   Courtesy of NISSAN MOTOR CO., U.S.A.

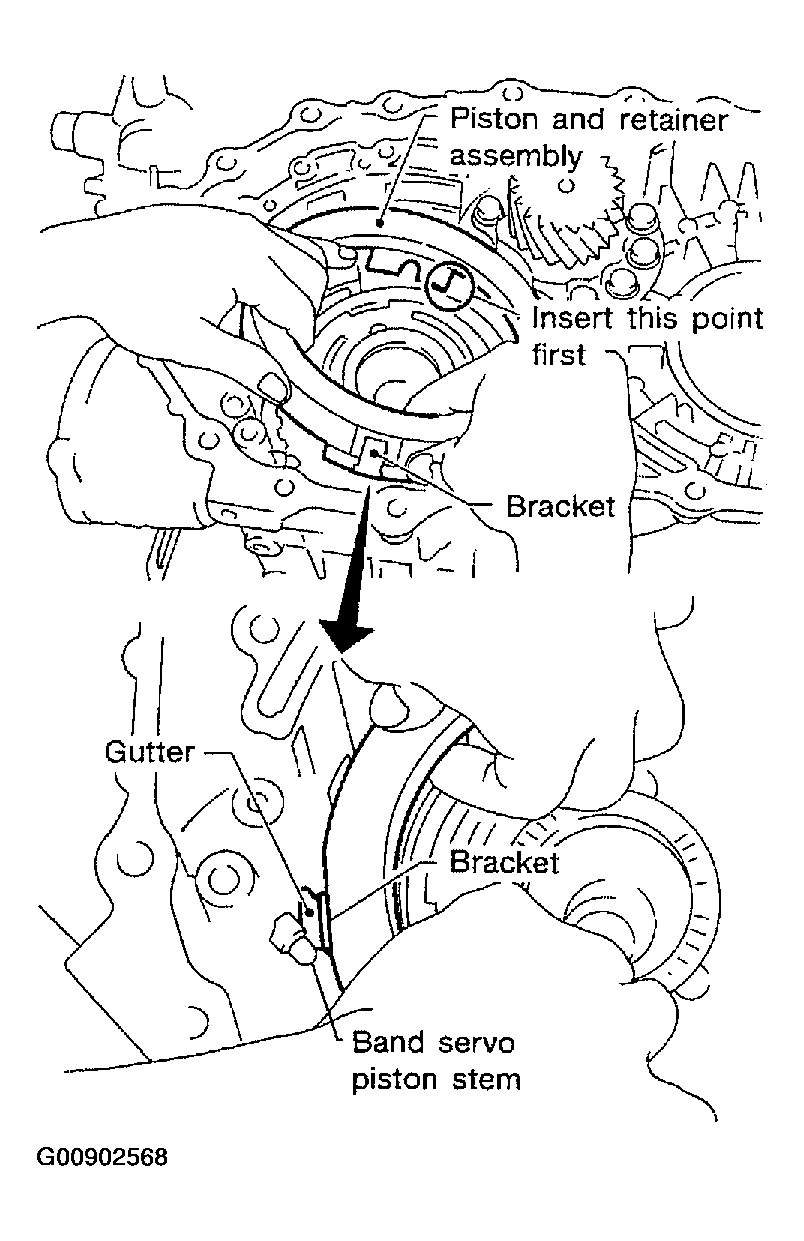

3. Install piston and retainer assembly on the transmission case.
   • Align bracket to specified gutter as indicated in illustration.
   Fig 16: Installing Piston And Retainer Assembly On Transmission Case

   Courtesy of NISSAN MOTOR CO., U.S.A.

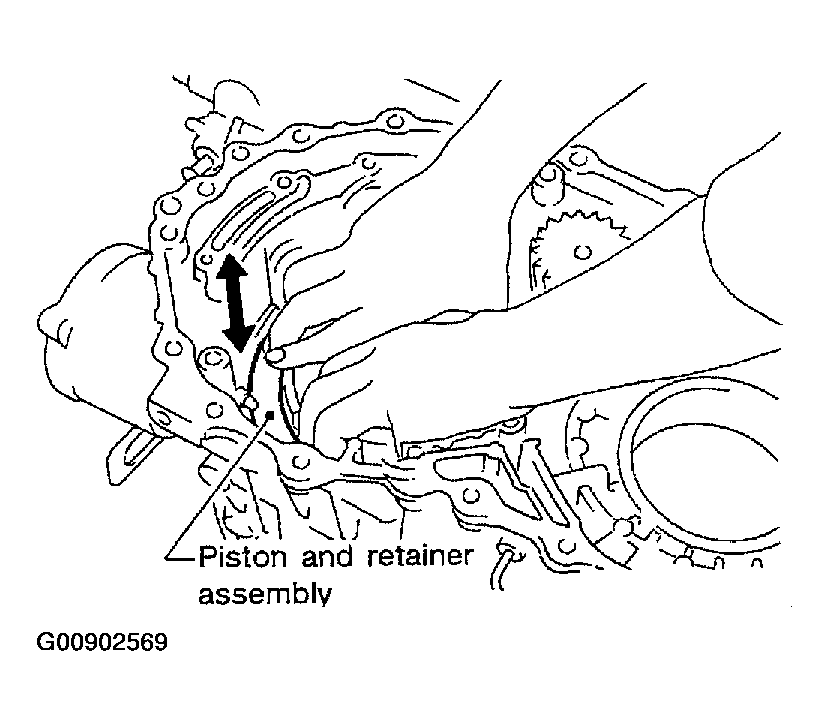

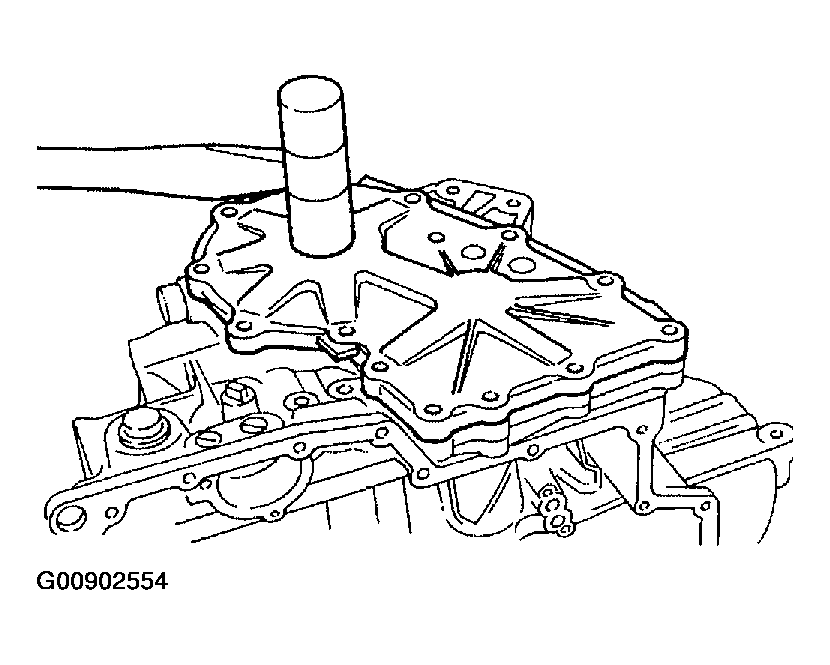

4. Check that each protrusion of piston is correctly set to corresponding return spring as follows.
   • Push piston and retainer assembly evenly and confirm they move smoothly.
   • If they can not move smoothly, remove piston and retainer assembly and align return spring correctly as instructed in step "a".
   Fig 17: Pushing Piston And Retainer Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.

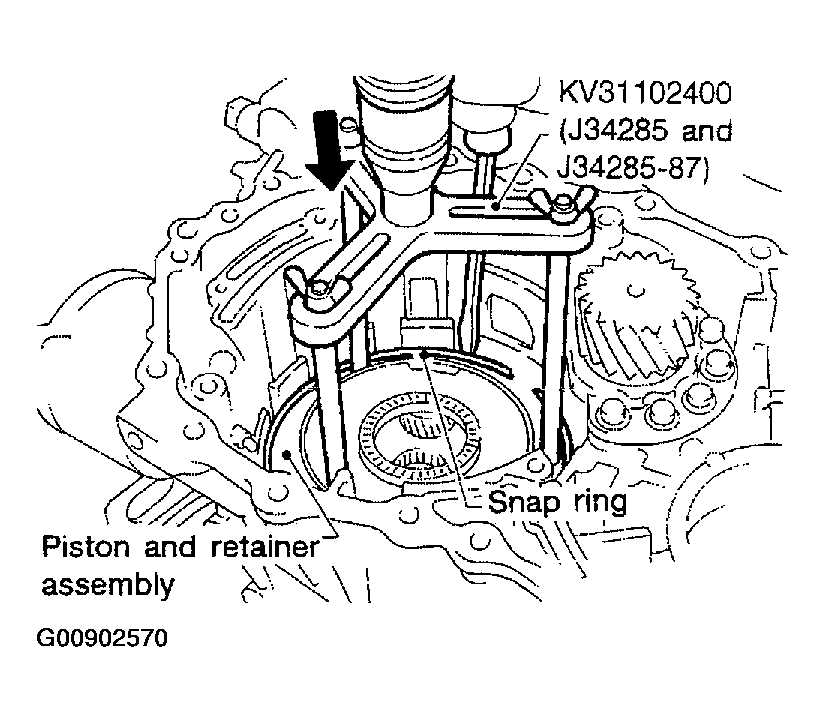

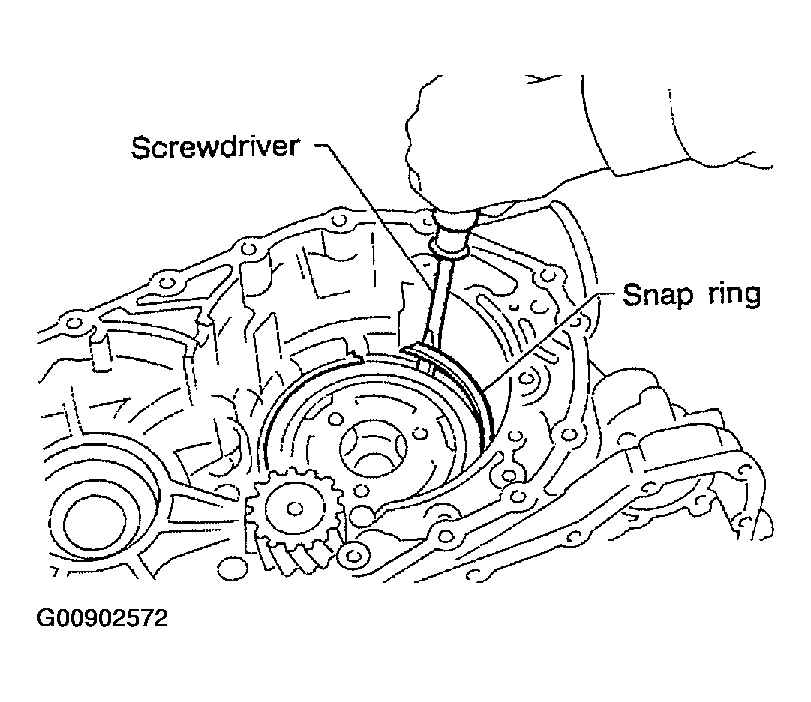

5. Push down piston and retainer assembly and install snap ring.

Fig 18: Installing Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.

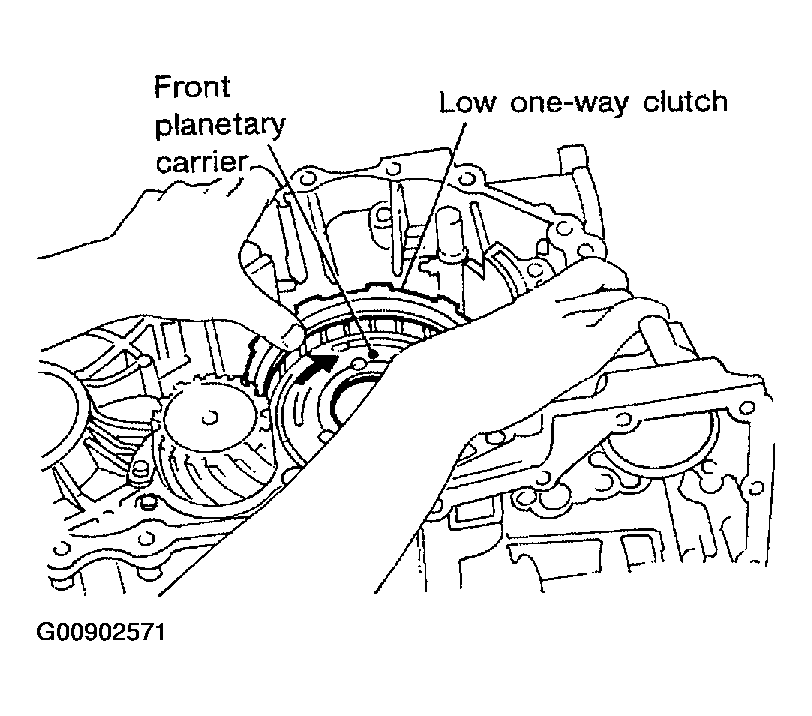

• Forward clutch and bearing must be correctly installed for snap ring to fit into groove of transmission case.

Fig 20: Installing Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.

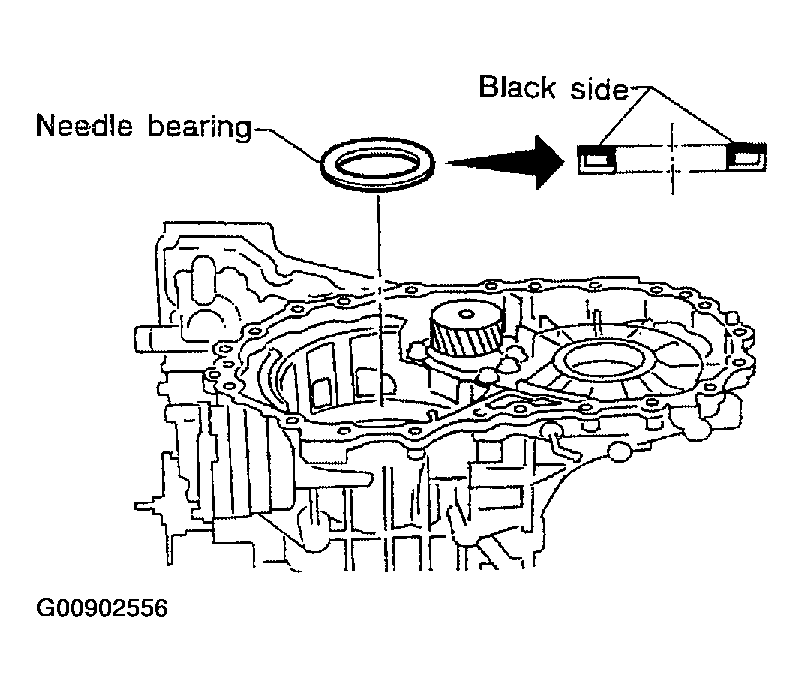

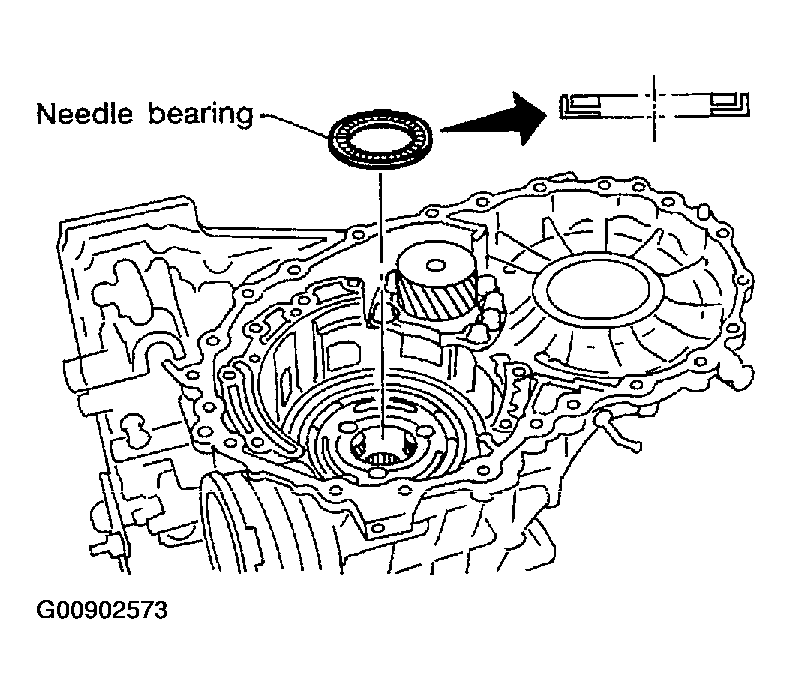

• Apply petroleum jelly to needle bearing.
• Pay attention to direction of needle bearing.

Fig 21: Installing Needle Bearing On Transmission Case

Courtesy of NISSAN MOTOR CO., U.S.A.

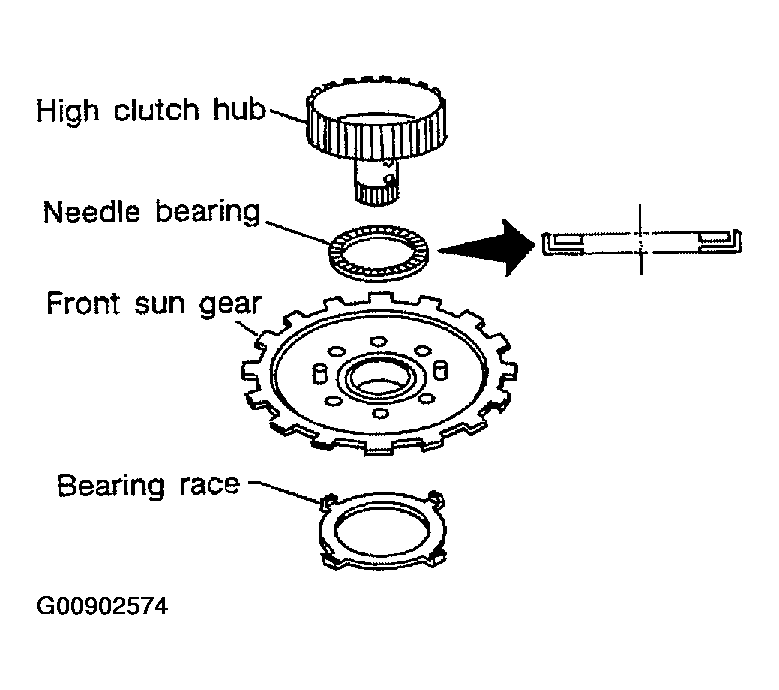

• Apply petroleum jelly to needle bearing.
• Pay attention to direction of needle bearing.

Fig 22: Installing Bearing Race, Needle Bearing And High Clutch Hub On Front Sun Gear

Courtesy of NISSAN MOTOR CO., U.S.A.

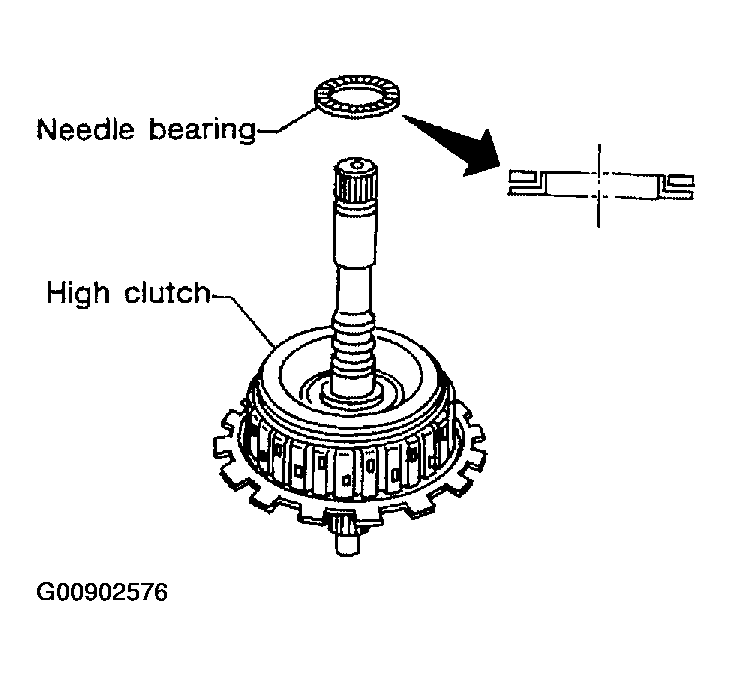

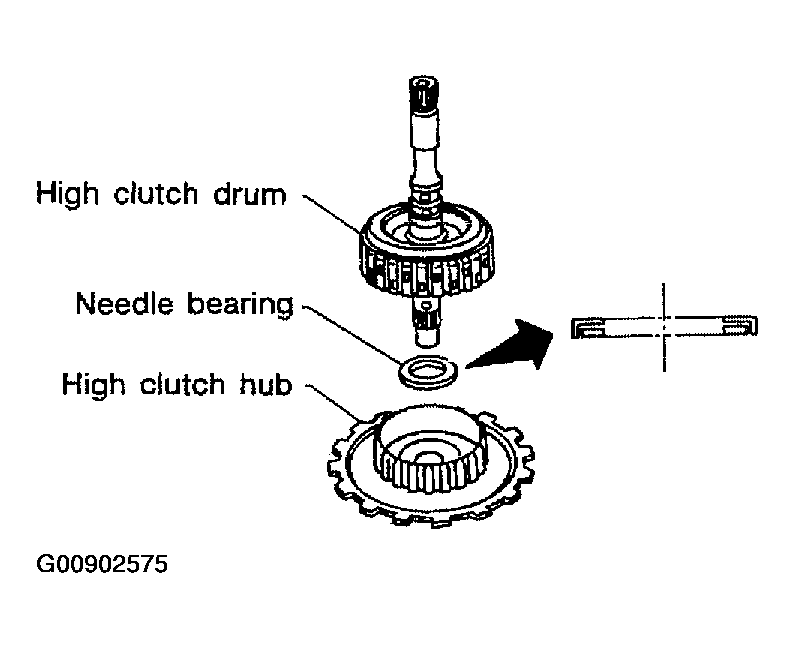

• Apply petroleum jelly to needle bearing.
• Pay attention to direction of needle bearing.

Fig 24: Installing Needle Bearing On High Clutch Drum

Courtesy of NISSAN MOTOR CO., U.S.A.

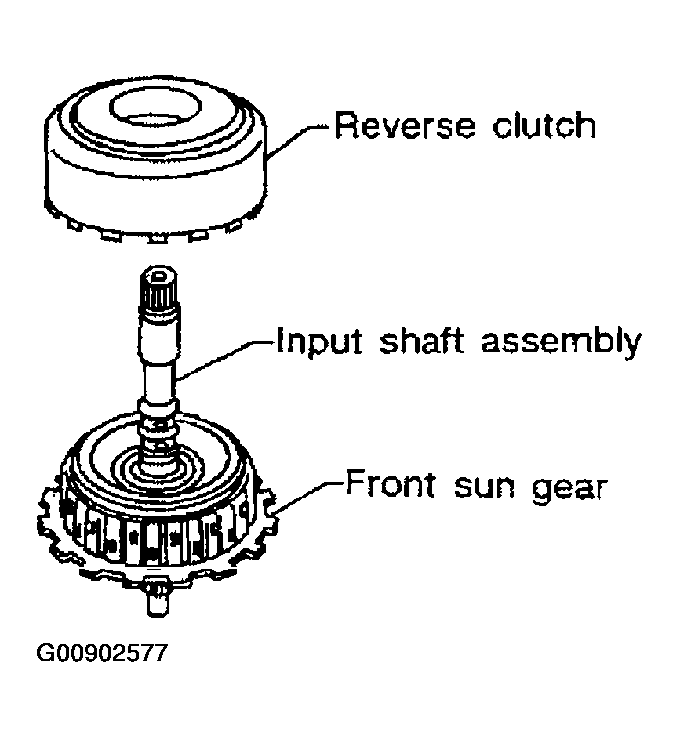

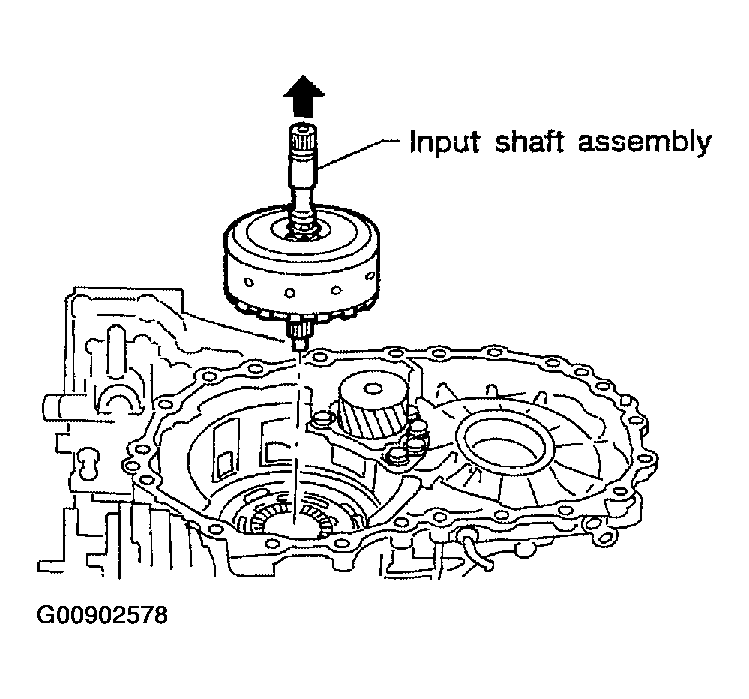

• Align teeth of reverse clutch drive plates before installing.

Fig 25: Installing Input Shaft Assembly In Reverse Clutch

Courtesy of NISSAN MOTOR CO., U.S.A.

• Align teeth of high clutch drive plates before installing.
