Diagnostic Trouble Code (DTC) Confirmation Procedure

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

With CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode for A/T with CONSULT-II.
Start engine.

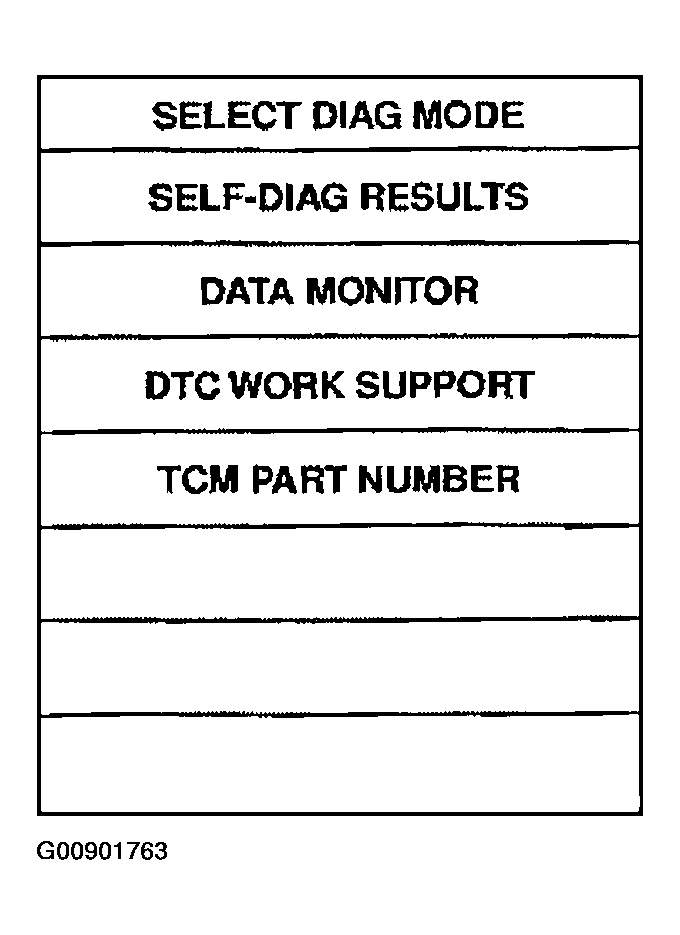

Fig 1: Consult II Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Run engine for at least 2 seconds at idle speed.

Fig 2: Consult II Display (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
