Consult-II Reference Value In Data Monitor Mode

Remarks: Specification data are reference values.

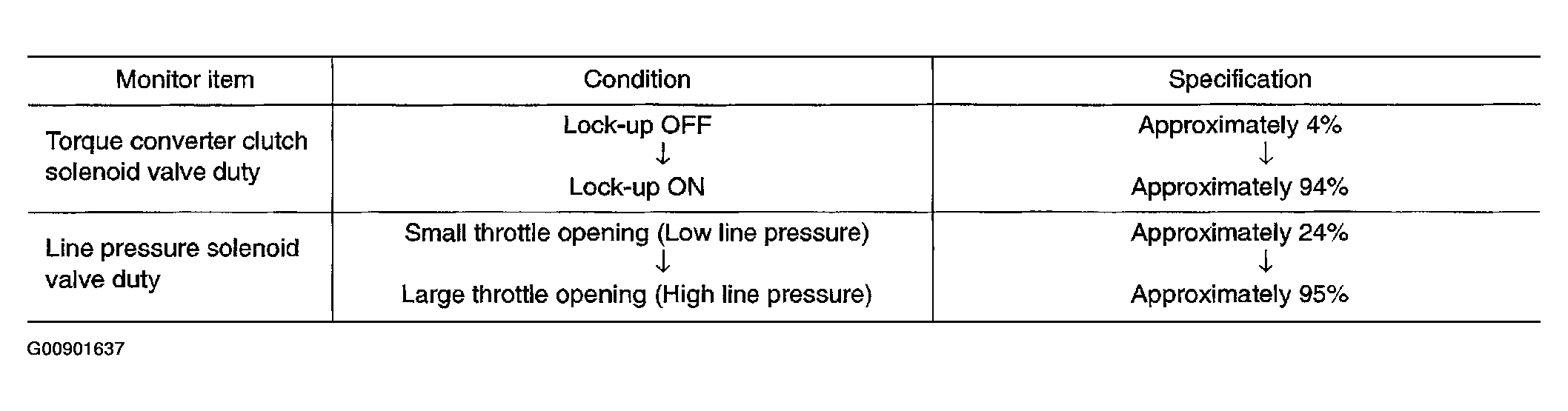

Fig 1: Consult-II Data Monitor Mode Reference Value Chart
G00901637Courtesy of NISSAN MOTOR CO., U.S.A.
