11 Position

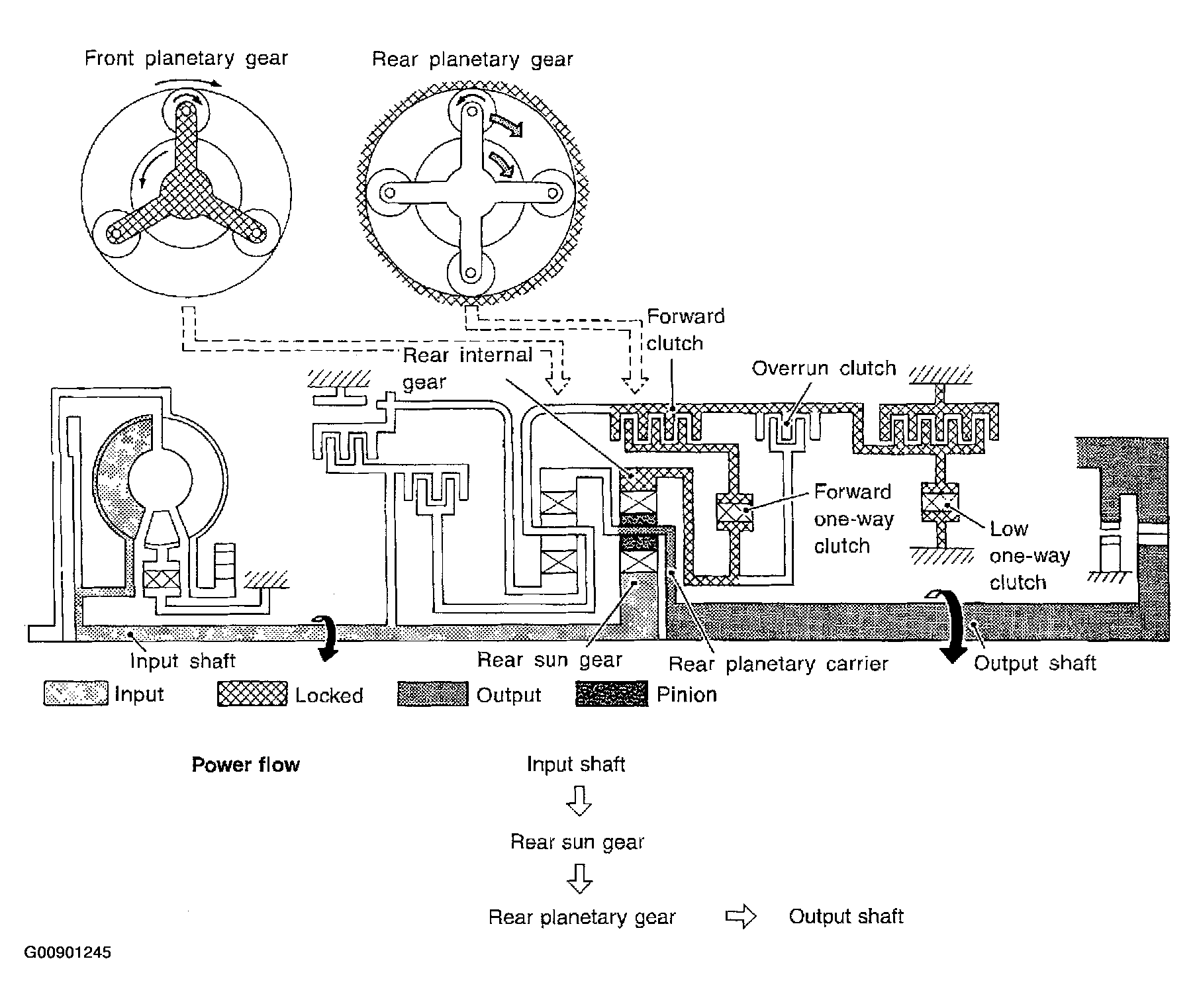

Fig 1: Power Transmission - "11" Position (1 Of 2)
G00901245Courtesy of NISSAN MOTOR CO., U.S.A.

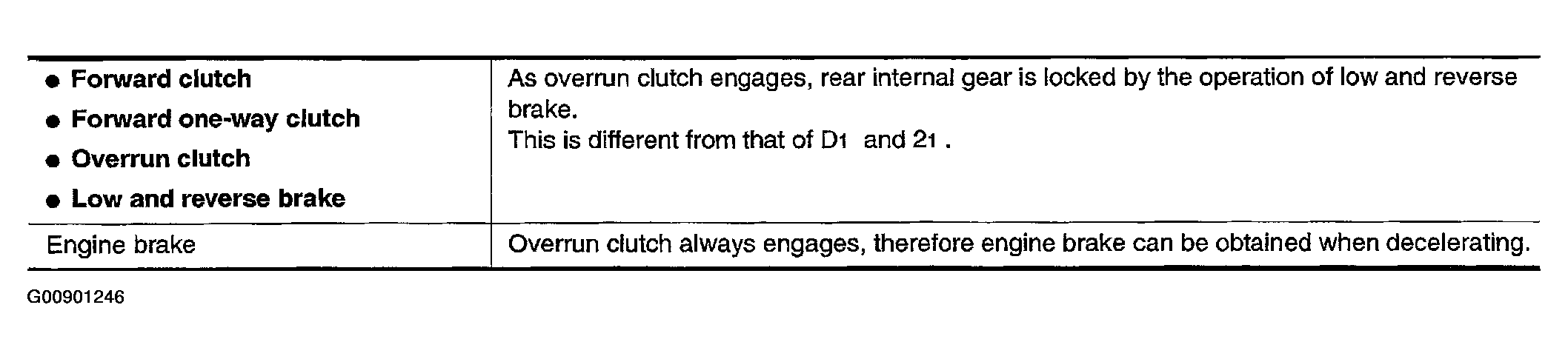

Fig 2: Power Transmission - "11" Position (2 Of 2)
G00901246Courtesy of NISSAN MOTOR CO., U.S.A.

D1 and 21 Positions

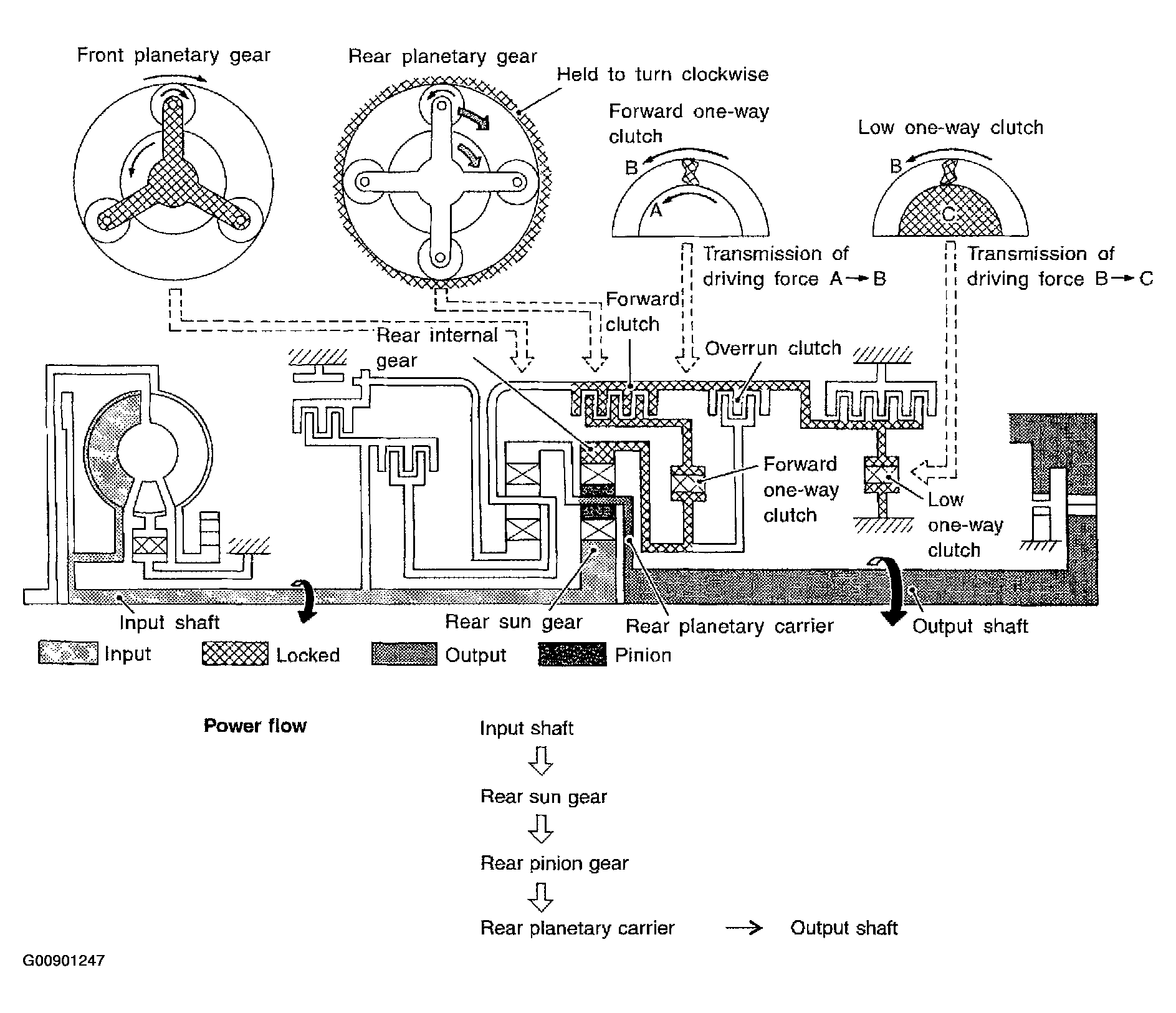

Fig 3: Power Transmission - "D1" And "21" Position (1 Of 2)
G00901247Courtesy of NISSAN MOTOR CO., U.S.A.

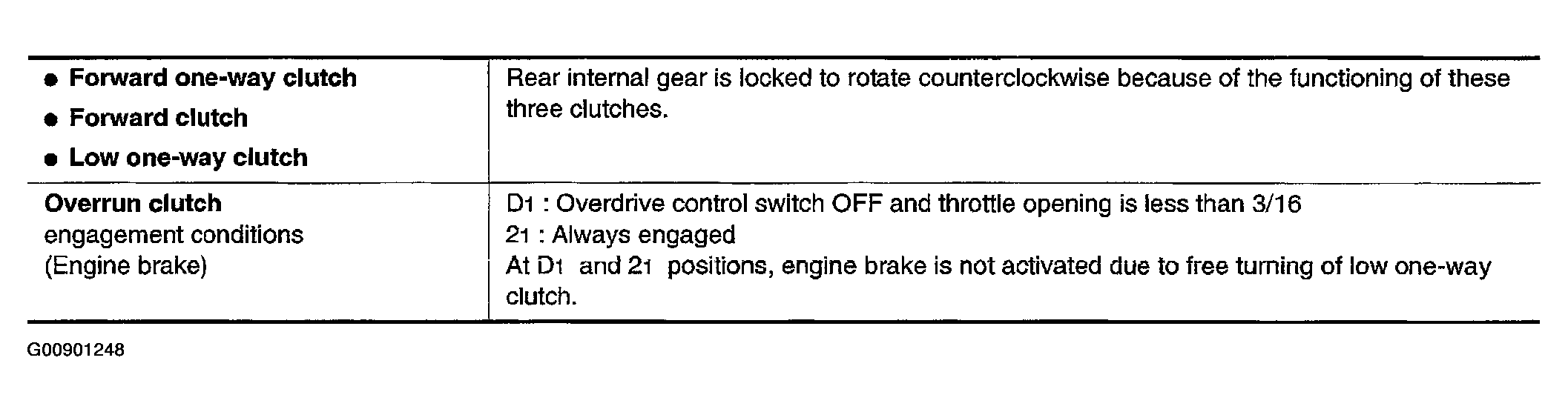

Fig 4: Power Transmission - "D1" And "21" Position (2 Of 2)
G00901248Courtesy of NISSAN MOTOR CO., U.S.A.
