R Position

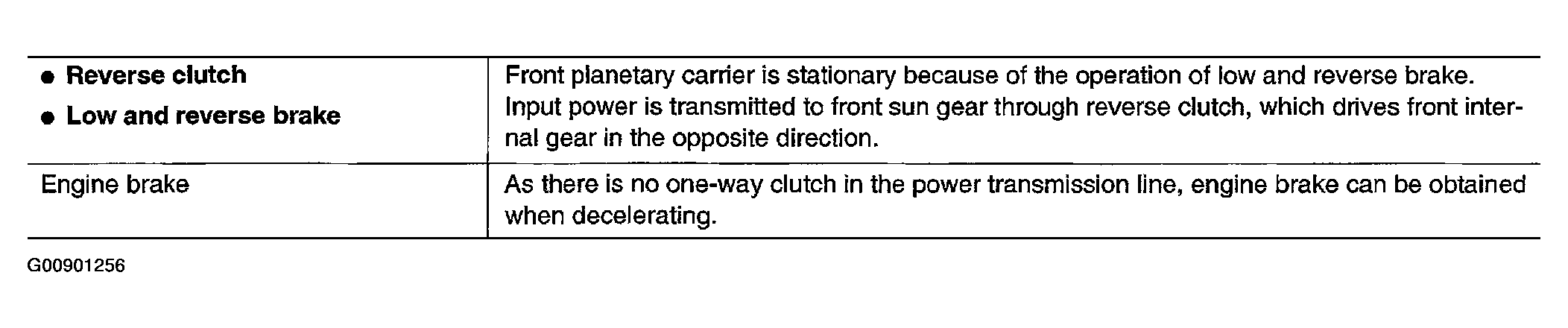

Fig 1: Power Transmission - "R" Position (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

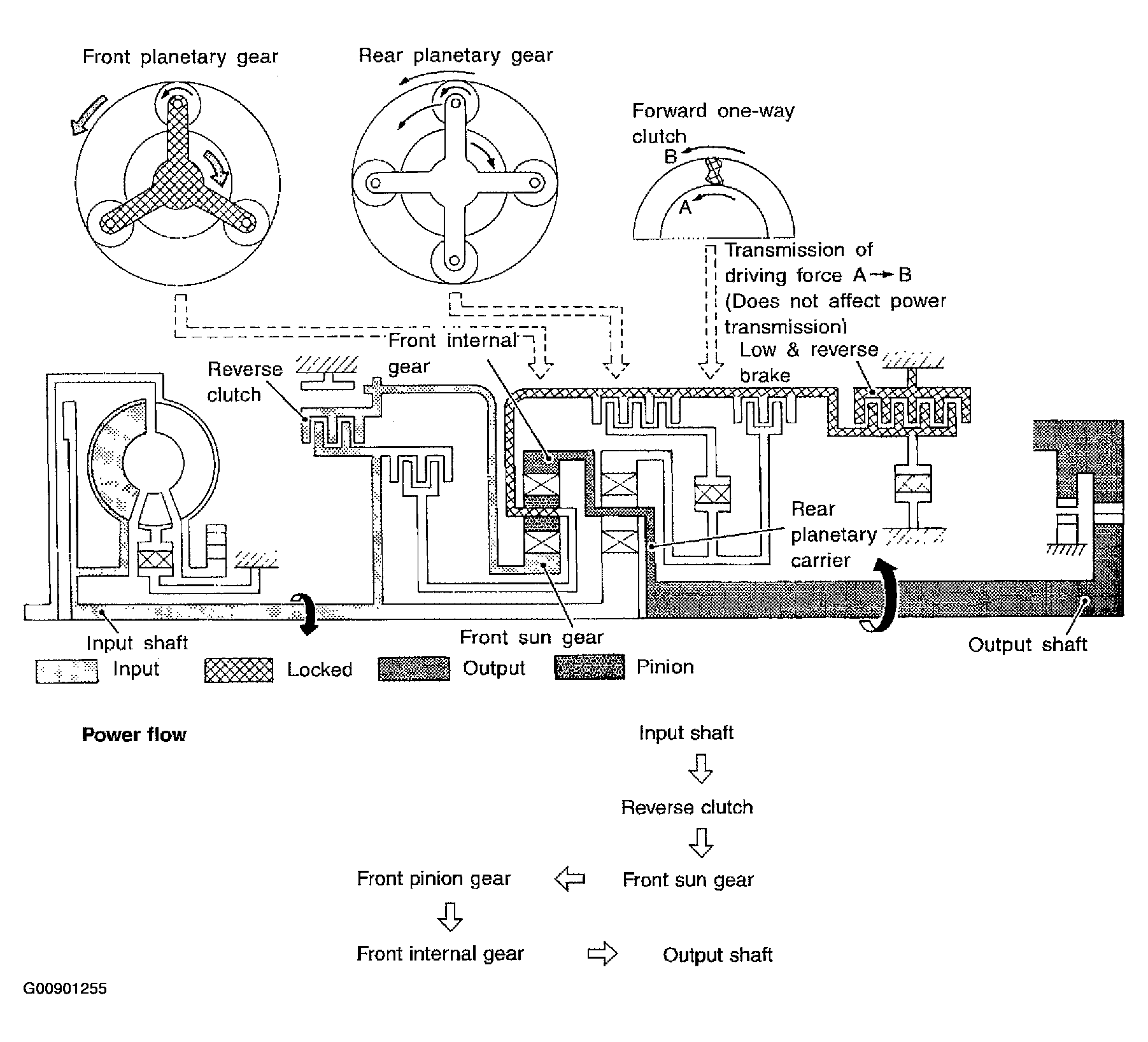

Fig 2: Power Transmission - "R" Position (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
