Band Servo Piston Assembly: Disassembly

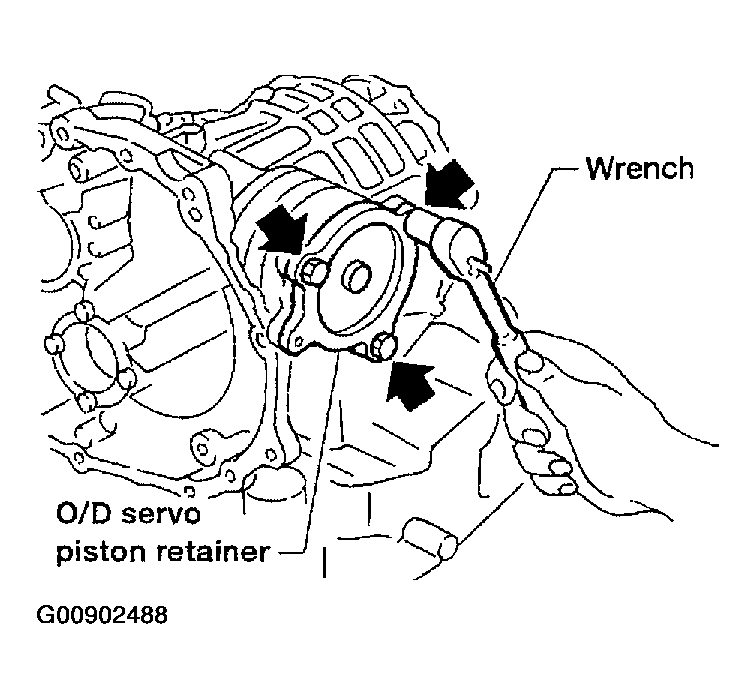

Remove band servo piston fixing bolts.

Fig 1: Removing Band Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

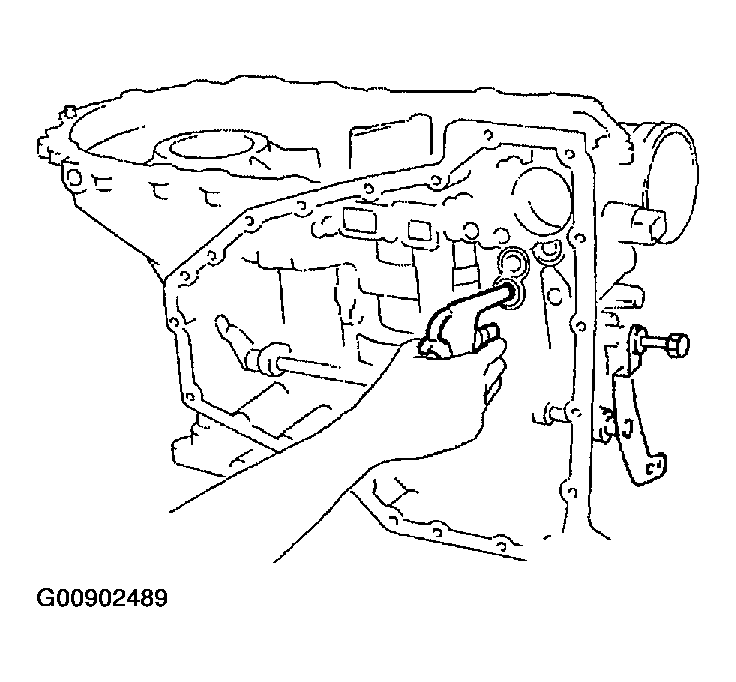

Apply compressed air to oil hole in transmission case to remove O/D servo piston retainer and band servo piston assembly.
- Hold band servo piston assembly with a rag or nylon waste.
Fig 2: Removing OD Servo Piston Retainer And Band Servo Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

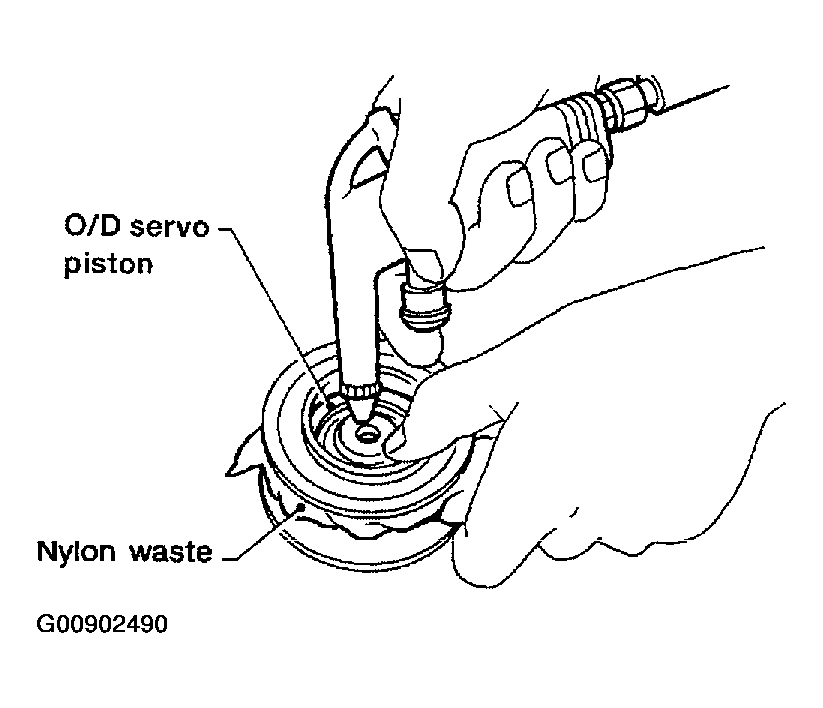

Apply compressed air to oil hole in O/D servo piston retainer to remove O/D servo piston from retainer.
- Hold O/D band servo piston while applying compressed air.
Fig 3: Removing OD Servo Piston From Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

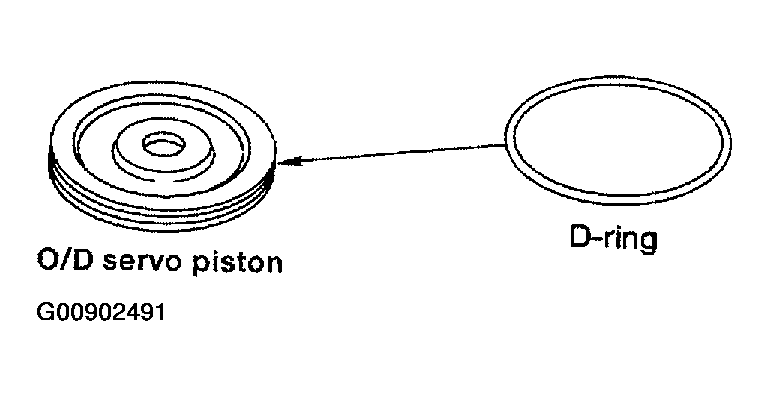

Remove D-ring from O/D servo piston.

Fig 4: Removing D-Ring From OD Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

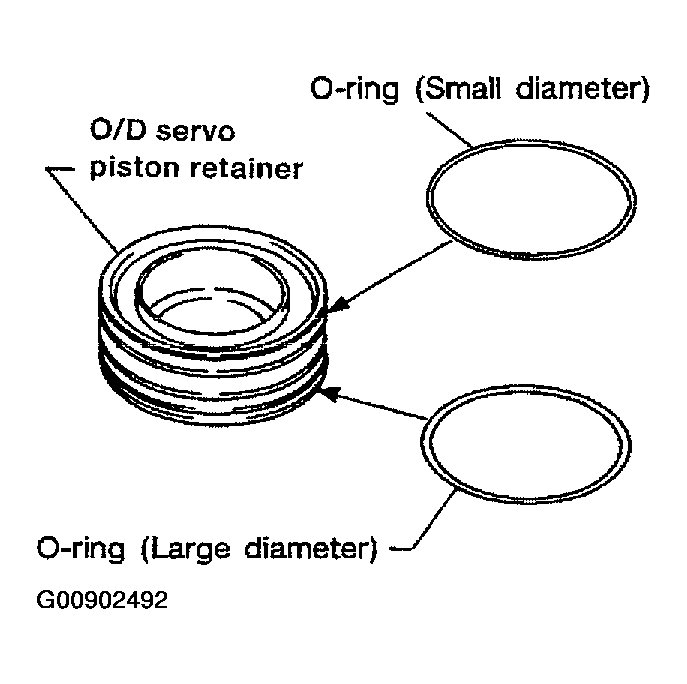

Remove O-rings from O/D servo piston retainer.

Fig 5: Removing O-Rings From OD Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

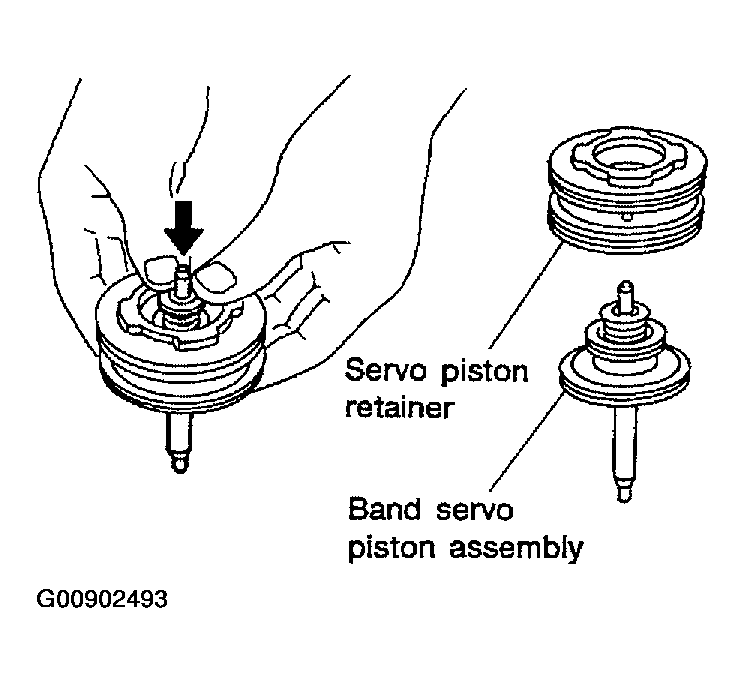

Remove band servo piston assembly from servo piston retainer by pushing it forward.

Fig 6: Removing Band Servo Piston Assembly From Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

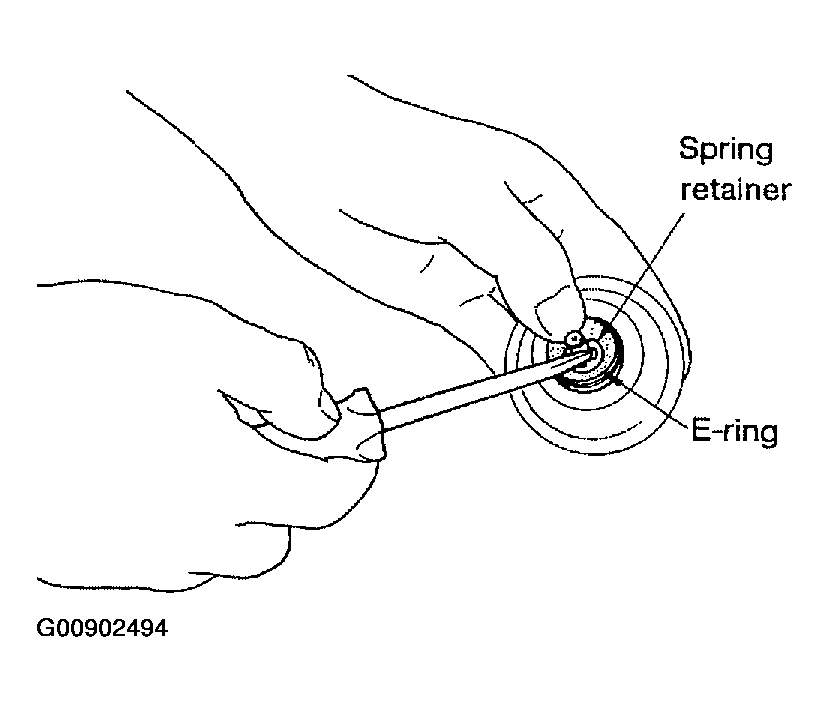

Place piston stem end on a wooden block. While pushing servo piston spring retainer down, remove E-ring.

Fig 7: Removing E-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

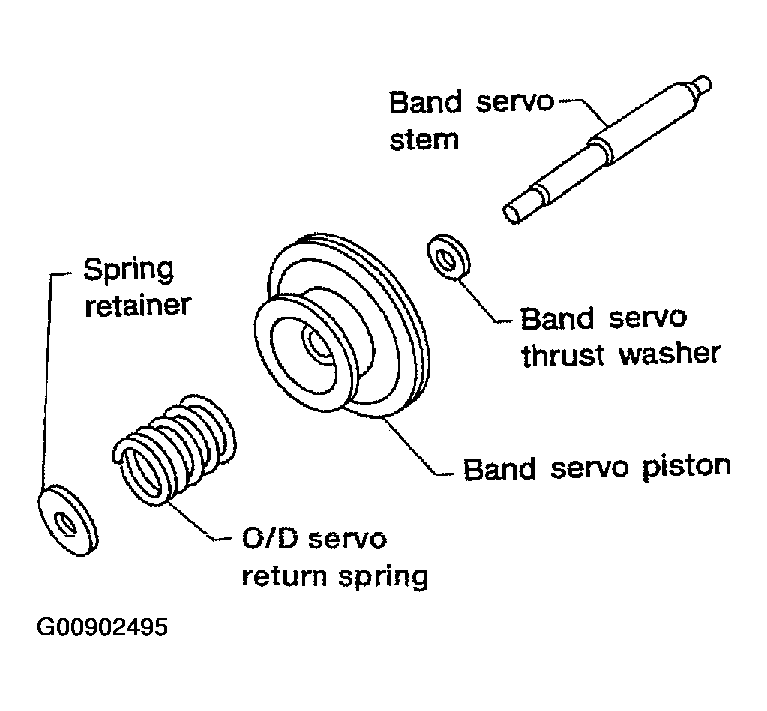

Remove O/D servo return spring, band servo thrust washer and band servo piston stem from band servo piston.

Fig 8: Removing OD Servo Return Spring, Band Servo Thrust Washer And Band Servo Piston Stem From Band Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

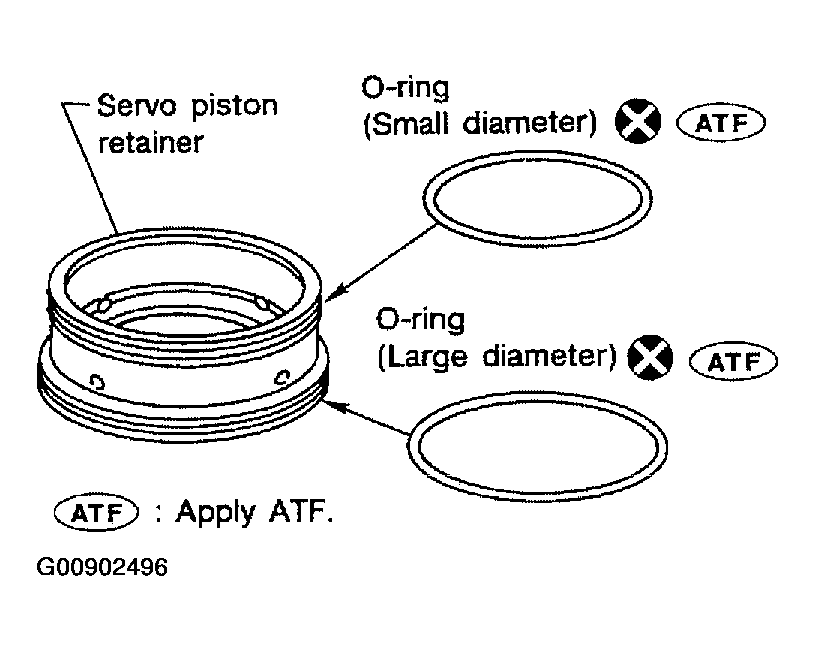

Remove O-rings from servo piston retainer.

Fig 9: Removing O-Rings From Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

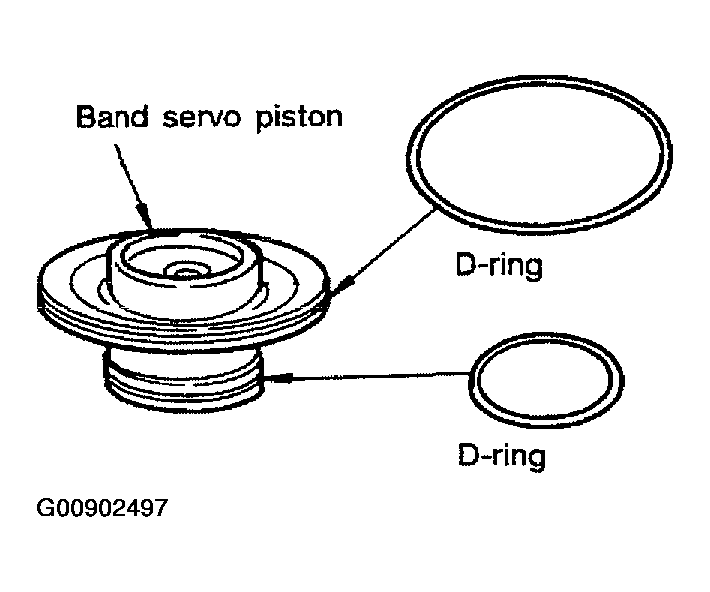

Remove D-rings from band servo piston.

Fig 10: Removing D-Rings From Band Servo Piston

Courtesy of NISSAN MOTOR CO., U.S.A.
