Oil Cooler Relief Valve Spring

Check springs for damage or deformation.
Measure free length and outer diameter.
1. Inspection standard: Refer to "CONTROL VALVE AND PLUG RETURN SPRINGS ".

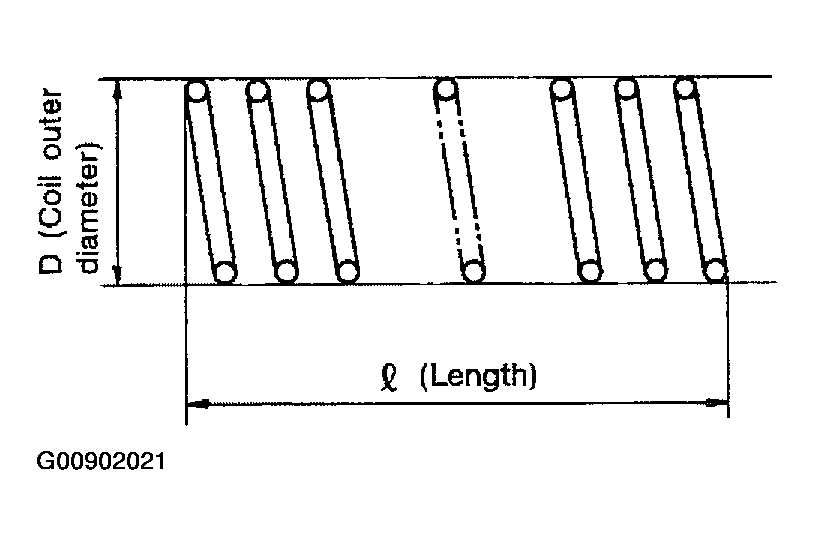

Fig 1: Identifying Free Length And Outer Diameter Of Oil Cooler Relief Valve Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
