Oil Strainer

• Check wire netting of oil strainer for damage.

Shift Solenoid Valves "A" and "B", Line Pressure Solenoid Valve, Torque Converter Clutch Solenoid Valve and Overrun Clutch Solenoid Valve

• Measure resistance.
• For shift solenoid valve A, refer to DTC P0750 SHIFT SOLENOID VALVE A .
• For shift solenoid valve B, refer to DTC P0755 SHIFT SOLENOID VALVE B .
• For line pressure solenoid valve, refer to DTC P0745 LINE PRESSURE SOLENOID VALVE .
• For torque converter clutch solenoid valve, refer to DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE .
• For overrun clutch solenoid valve, DTC P1760 OVERRUN CLUTCH SOLENOID VALVE .

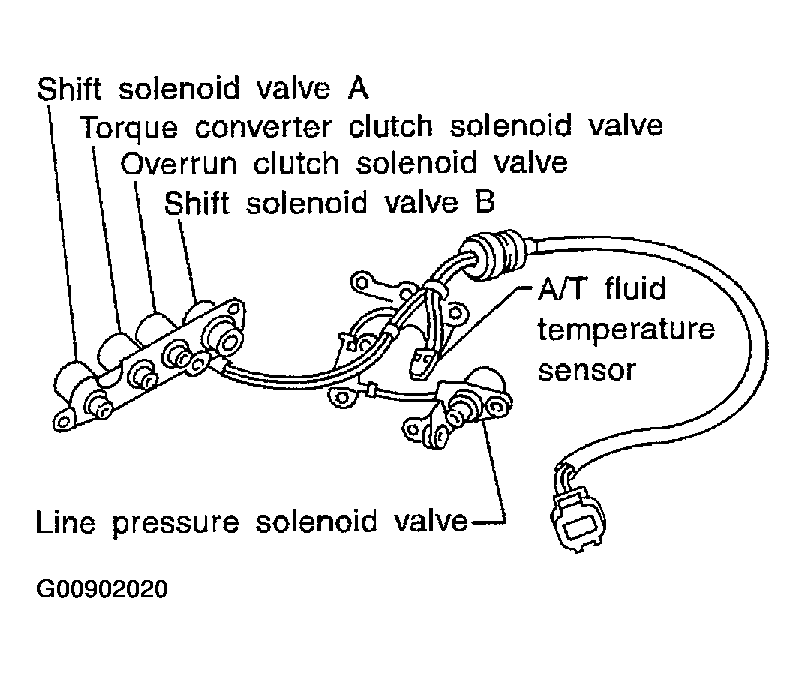

Fig 1: Identifying Solenoid Valves And A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
