Control Valve Lower Body: Disassembly

Remove valves at retainer plate.
For removal procedures, refer to "DISASSEMBLY ".

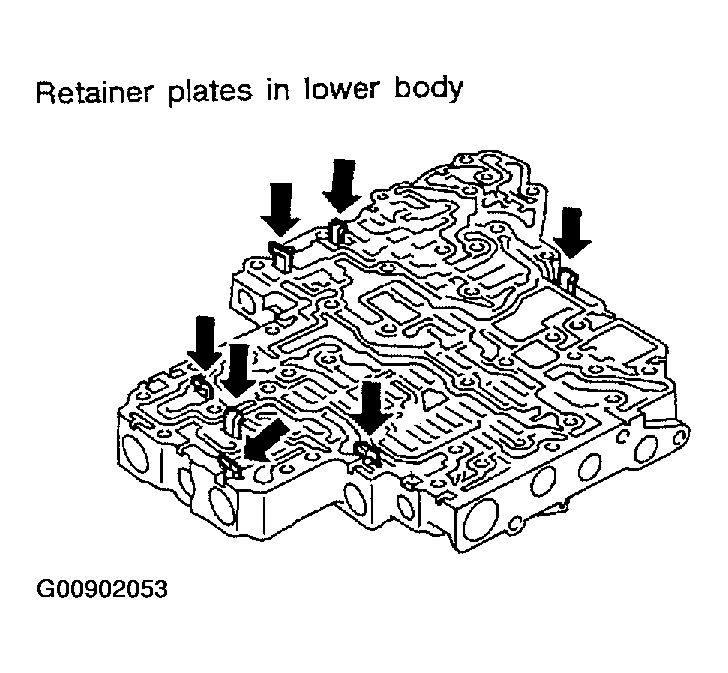

Fig 1: Removing Retainer Plate Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
