Control Valve Upper Body: Inspection

Valve Spring

• Measure free length and outer diameter of each valve spring. Also check for damage or deformation.
  1. Inspection standard:  Refer to "CONTROL VALVE AND PLUG RETURN SPRINGS ".
• Replace valve springs if deformed or fatigued.

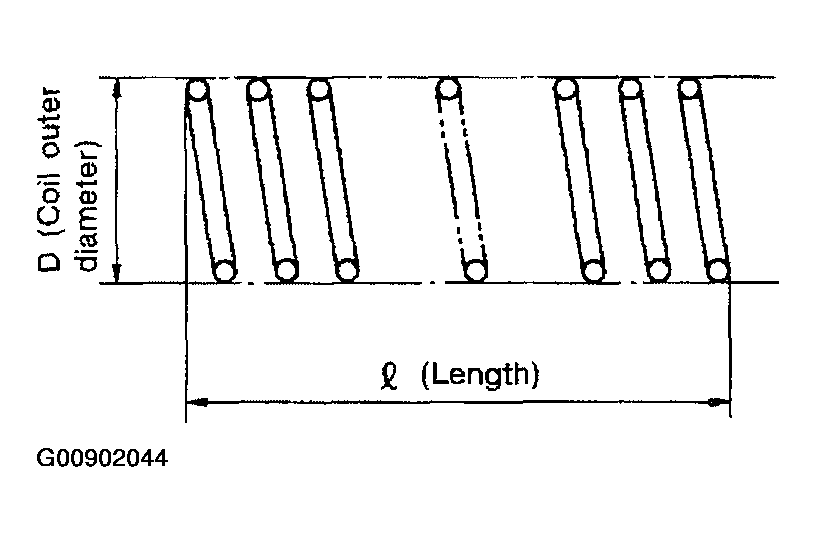

  Fig 1: Identifying Free Length And Outer Diameter Of Valve Spring

  Courtesy of NISSAN MOTOR CO., U.S.A.

Control Valves

• Check sliding surfaces of valves, sleeves and plugs.
