Forward And Overrun Clutches: Components

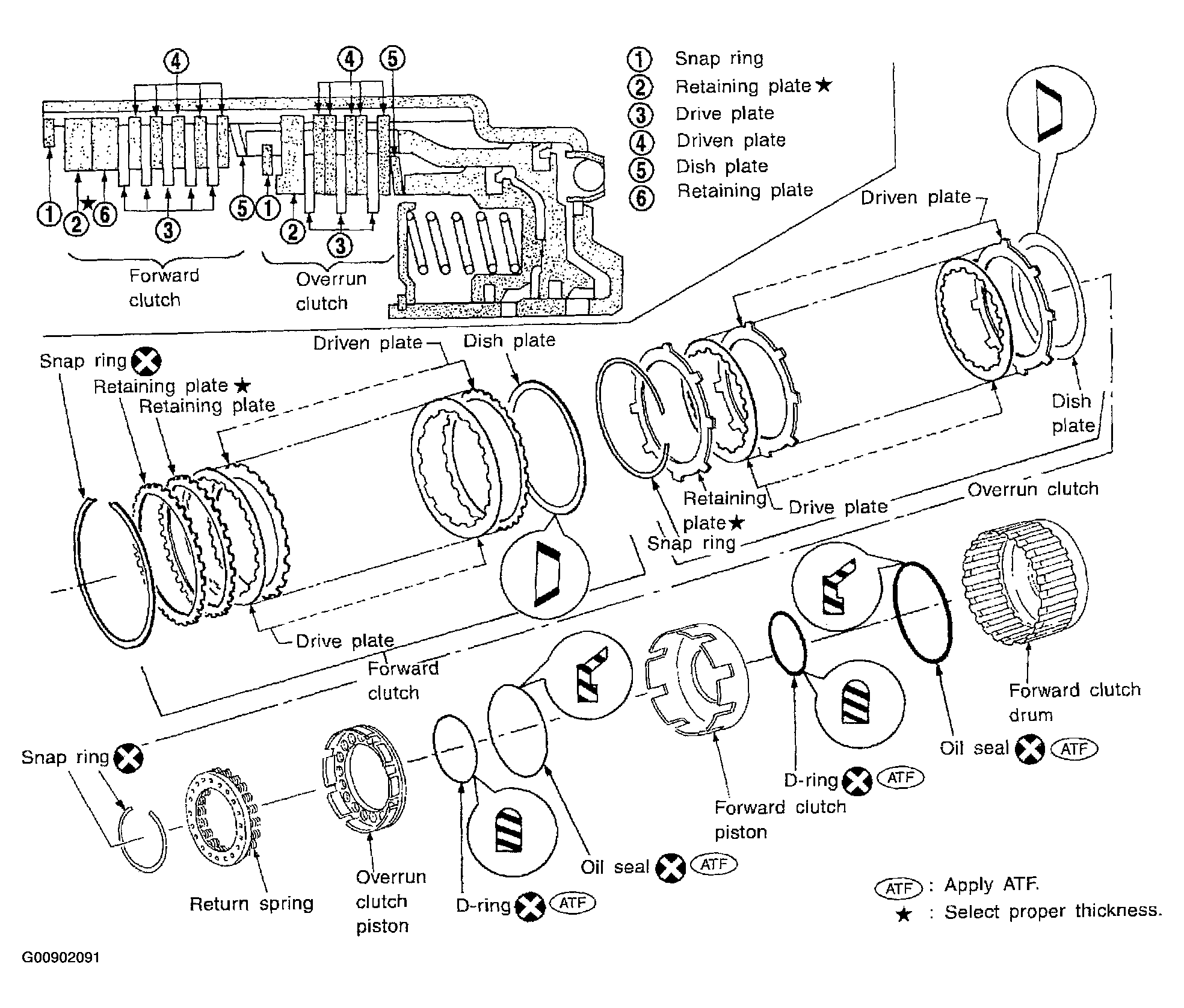

Fig 1: Identifying Forward Clutch And Overrun Clutch Components
G00902091Courtesy of NISSAN MOTOR CO., U.S.A.
