High Clutch: Assembly

  1. Install D-rings on piston.
    • Apply ATF to both parts.

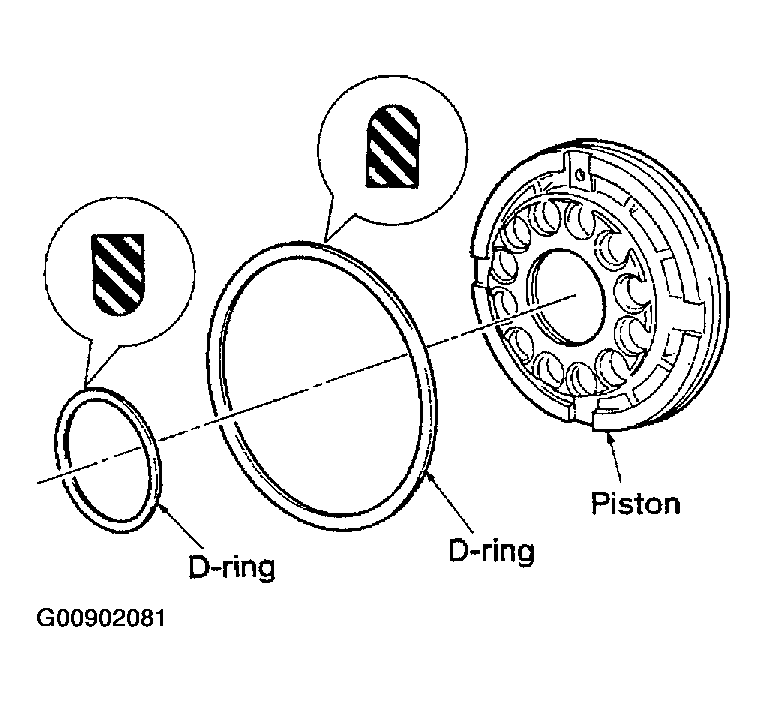

    Fig 1: Installing D-Ring On Piston
    G00902081Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install piston assembly by turning it slowly.
    • Apply ATF to inner surface of drum.

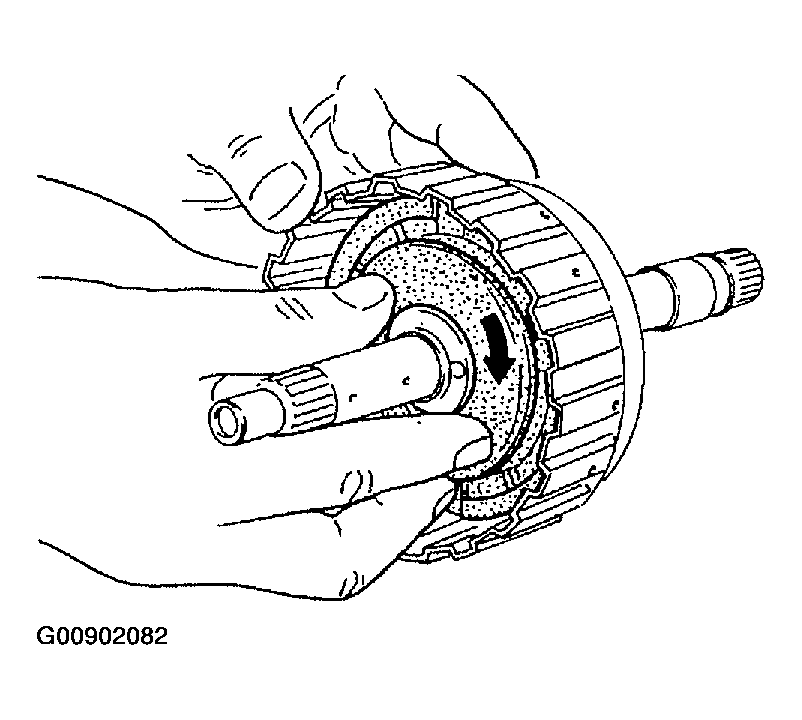

    Fig 2: Installing Piston Assembly
    G00902082Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install return springs and spring retainer on piston.

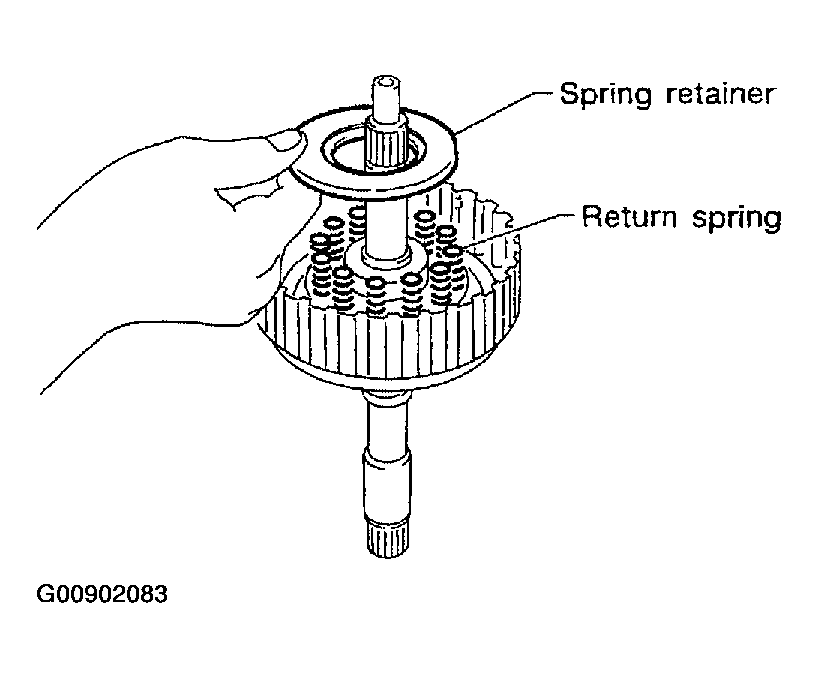

    Fig 3: Installing Return Springs And Spring Retainer On Piston
    G00902083Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Set Tool on spring retainer and install snap ring while compressing return springs.
    • Set Tool directly over return springs.

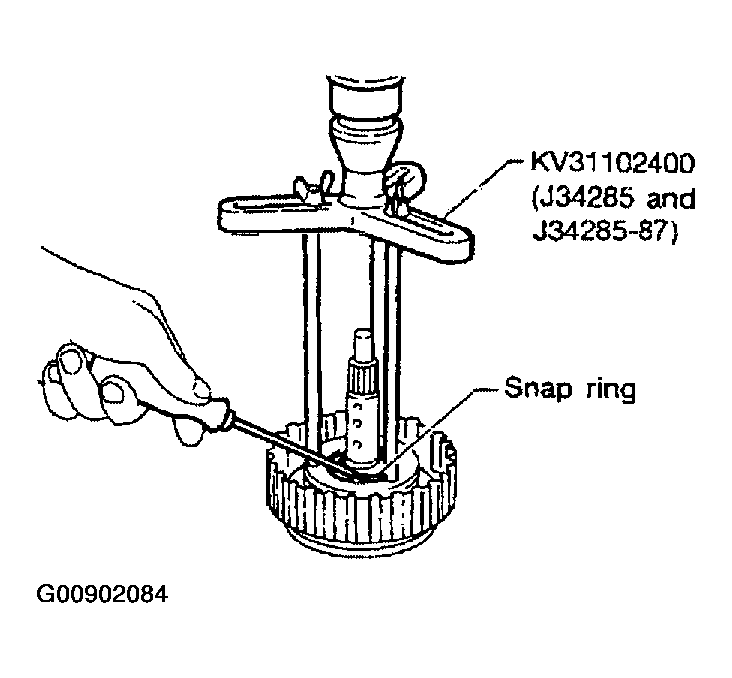

      Fig 4: Installing Snap Ring
      G00902084Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not align snap ring gap with spring retainer stopper.

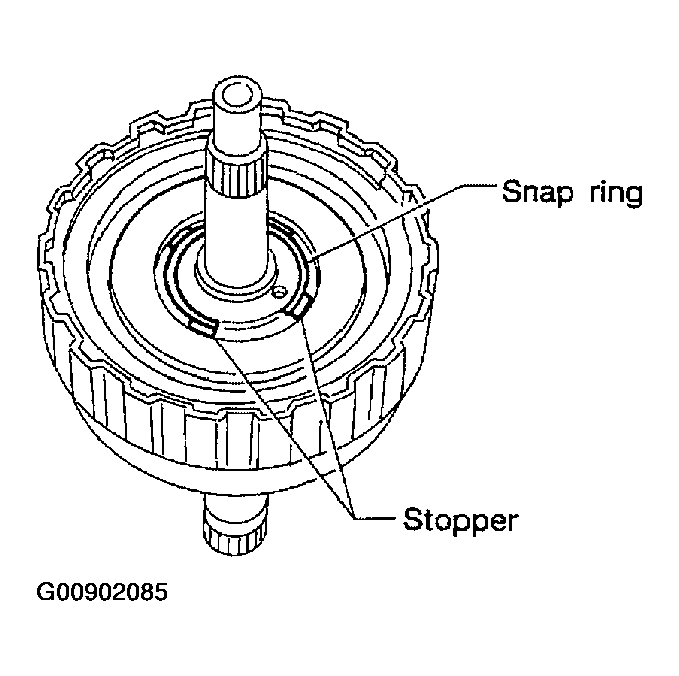

    Fig 5: Identifying Snap Ring And Stopper
    G00902085Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install drive plates, driven plates and retaining plate.
    • Take care with the order and direction of plates.

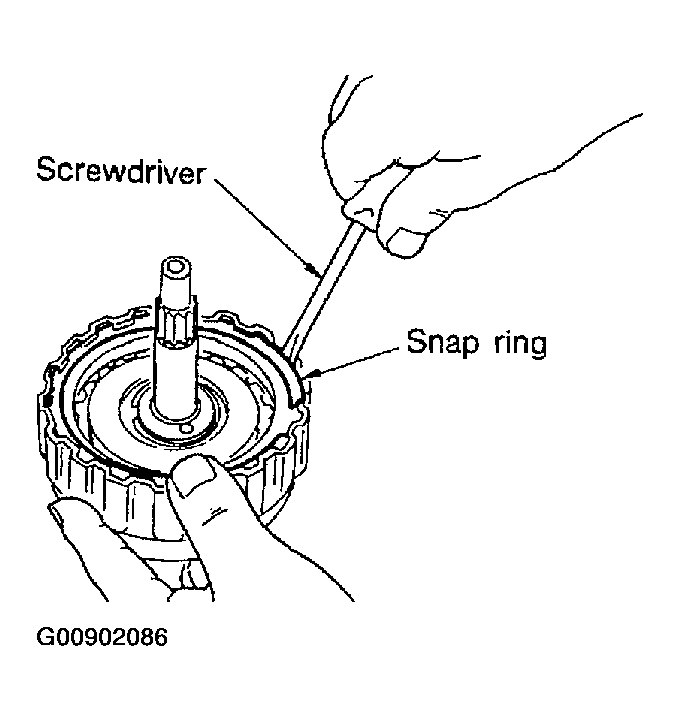

    Fig 6: Installing Snap Ring
    G00902086Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install snap ring.
  7. Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
    1. Specified clearance
    2. Standard: 1.8 - 2.2 mm (0.071 - 0.087 in)
    3. Allowable limit: 2.8 mm (0.110 in)
    4. Retaining plate:  Refer to "HIGH CLUTCH ".

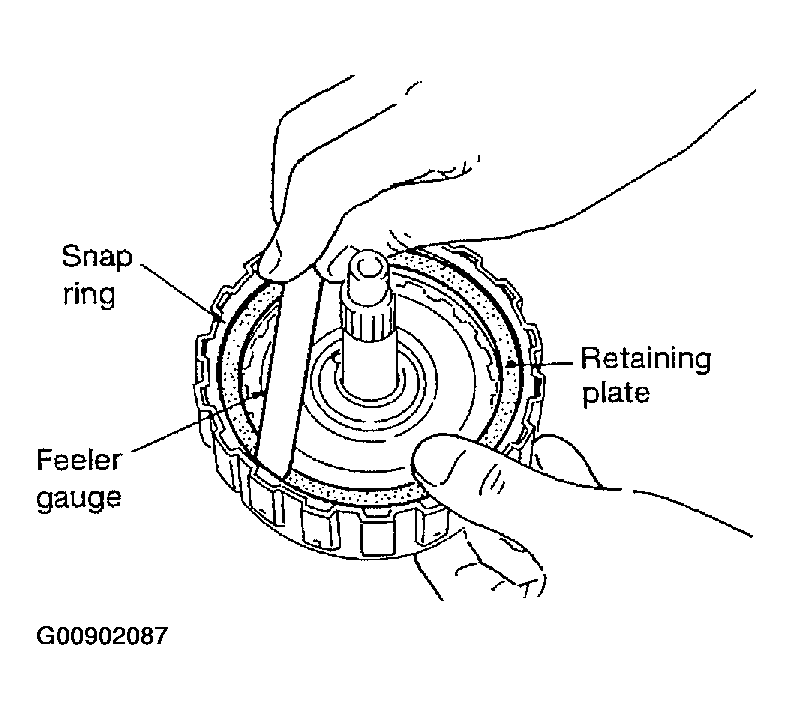

    Fig 7: Measuring Clearance Between Retaining Plate And Snap Ring
    G00902087Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Check operation of high clutch.

    Refer to "DISASSEMBLY ".

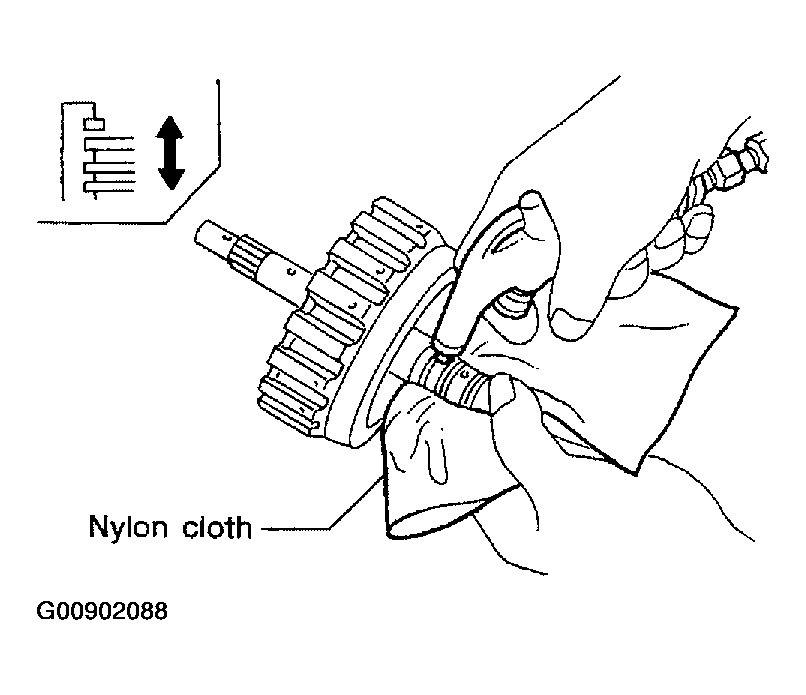

    Fig 8: Checking Operation Of High Clutch
    G00902088Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install seal rings to input shaft.
    • Apply petroleum jelly to seal rings.
    • Always replace when removed.

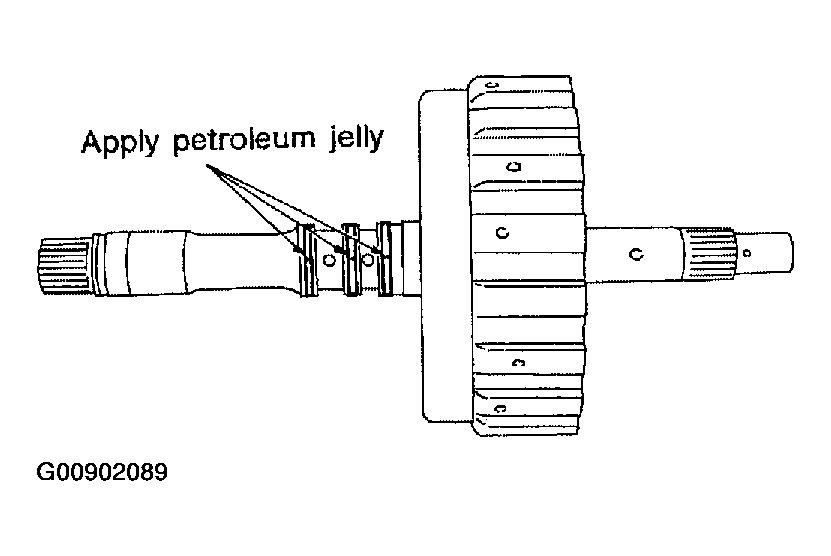

      Fig 9: Installing Seal Rings To Input Shaft
      G00902089Courtesy of NISSAN MOTOR CO., U.S.A.
    • Roll paper around seal rings to prevent seal rings from spreading.

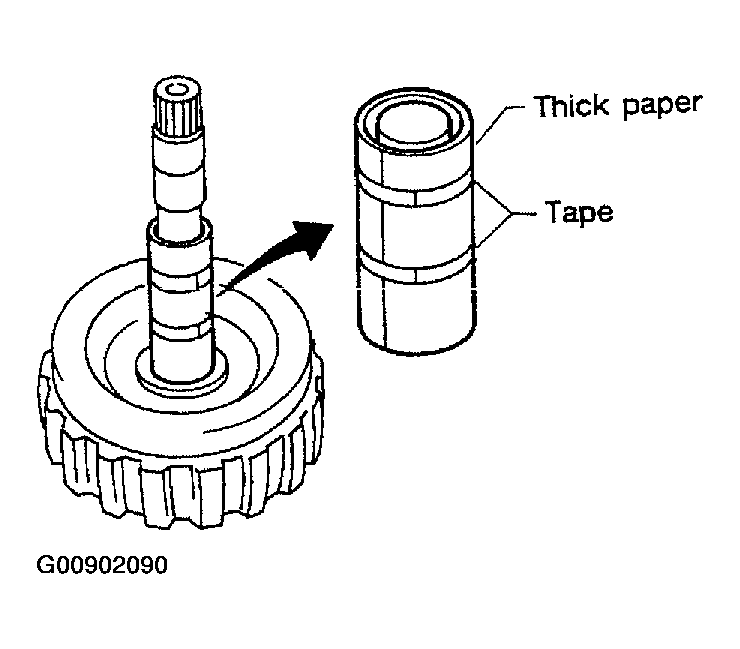

    Fig 10: Protecting Seal Rings
    G00902090Courtesy of NISSAN MOTOR CO., U.S.A.
